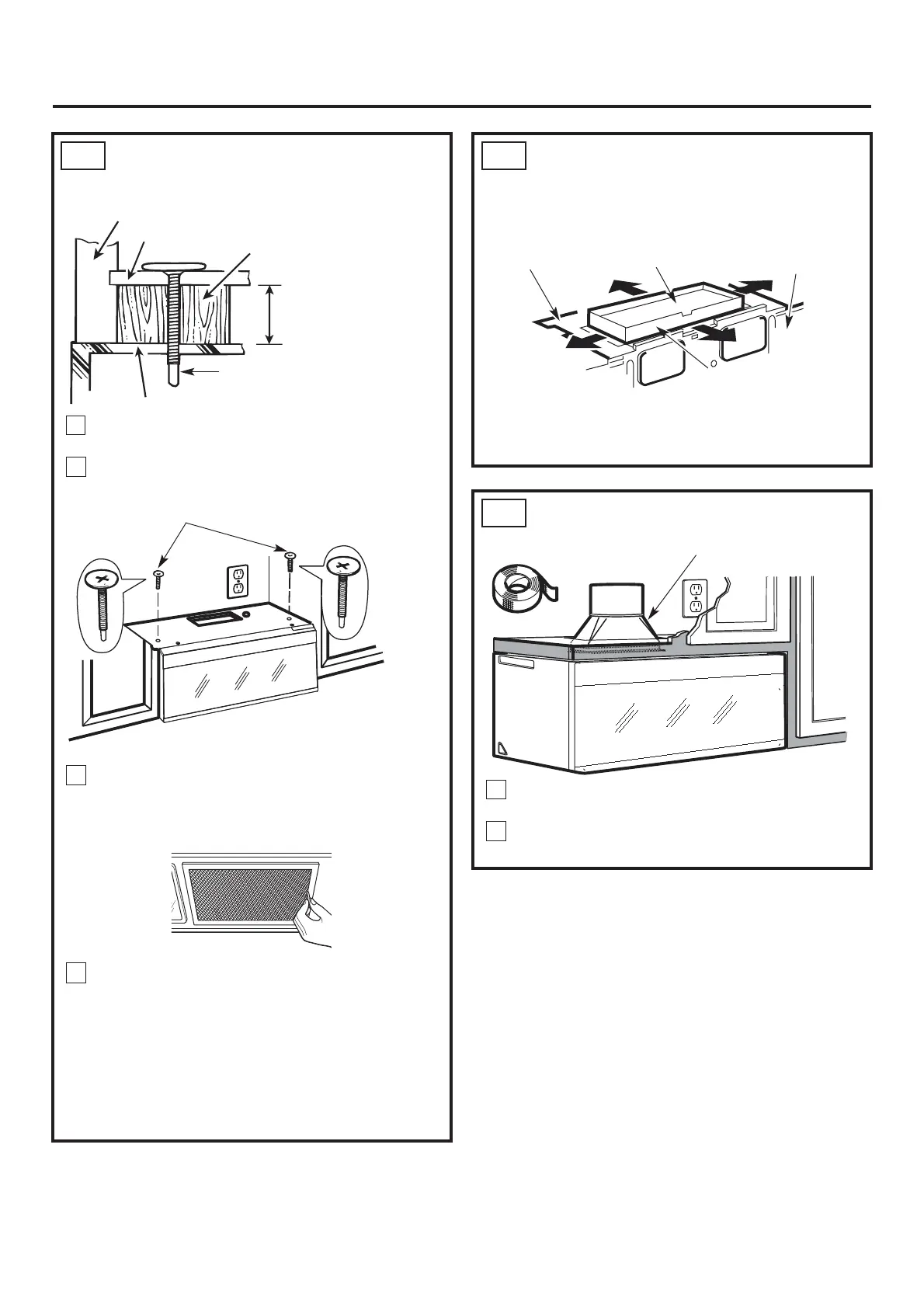

Installation Instructions
C5.
MOUNT THE MICROWAVE
OVEN
Cabinet Front
Cabinet Bottom Shelf
Filler Block
Microwave Oven Top
Equivalent to Depth
of Cabinet Recess
Self-Aligning Screw
4
Attach the microwave oven to the top
cabinet.
5
Insert 2 self-aligning screws through outer
top cabinet holes. Turn two full turns on
each screw.
6
Tighten the outer two screws to the top
of the microwave oven. (While tightening
screws, hold the microwave oven in place
against the wall and the top cabinet.)
7
Install grease filters. See the Use & C are
manual packed with the microwave.
IMPORTANT: Remove the cardhoard spacers
between heat shield and door.
C6.
ADJUST THE EXHAUST
ADAPTOR
Open the top cabinet and adjust the exhaust
adaptor to connect to the house duct.
Back of
Microwave
For Front-to-Back or
Side-to-Side Adjustment,
Slide the Exhaust Adaptor
as Needed
Blower Plate
Damper
C7.
CONNECTING DUCTWORK
House Duct
1
Extend the house duct down to connect to
the exhaust adaptor.
2
Seal exhaust duct joints using furnance duct
tape for high temperature applications.
EN-22
