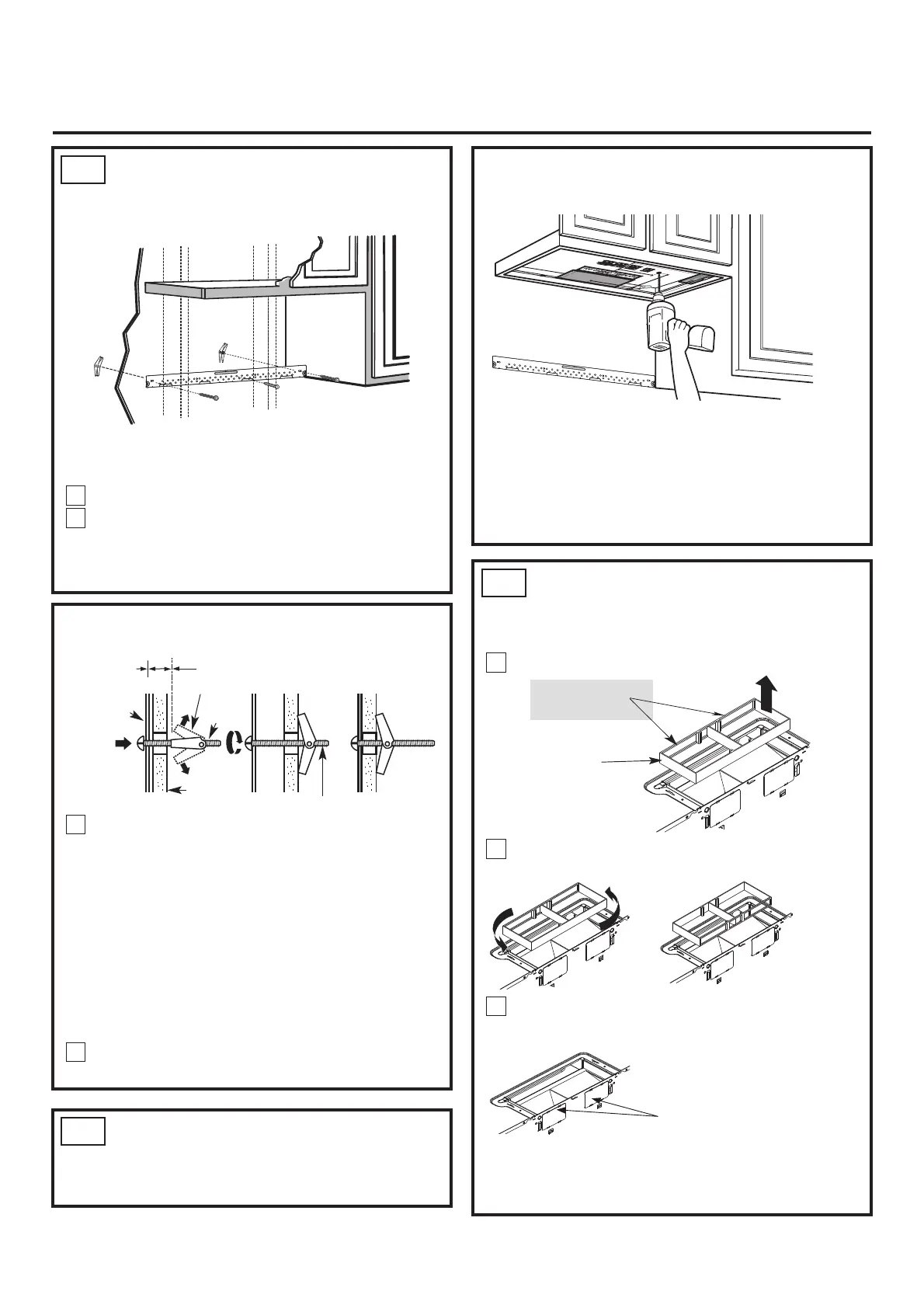

Installation Instructions
B3.
ATTACH THE MOUNTING
PLATE TO THE WALL
Attach the plate to the wall using toggle
bolts. At least one wood screw must be used
to attach the plate to a wall stud.
1
Remove the toggle wings from the bolts.
2
Insert the bolts into the mounting plate
through the holes designated to go into
drywall and reattach the toggle wings to
3⁄4"(19 mm) onto each bolt.
B5.
ADAPTING MICROWAVE AIR
DIRECTOR FOR OUTSIDE
BACK EXHAUST
1
Carefully pull out the air director.
Forward
Openings Facing
Before:
Air Director
2
Rotate the air director counterclockwise 180°
Before Rotation After Rotation
3
Remove the knockout plates in the back of
the unit with snips. (For some models)
Knockout Plates:
Snip all 4 webs on
each knockout panel
and remove the metal
knockouts for rear airflow.
Please take care to
remove any sharp edges
created from removing
the knockout plates.
Back of microwave
B4.
USE TOP CABINET TEMPLATE
FOR PREPARATION OF TOP
CABINET
To use toggle bolts:
Mounting
Plate
Toggle
Bolt
Toggle Wings
Bolt End
Spacing for Toggles More
Than Wall Thickness
Wall
3
Place the mounting plate against the wall
and insert the toggle wings into the holes in
the wall to mount the plate.
NOTE: Before tightening toggle bolts and
wood screw, make sure the bottom of the
mounting plate touch the bottom of the
cabinet when pushed flush against the wall
and that the plate is properly centered under
the cabinet.
CAUTION:Be careful to avoid pinching fingers
between the back of the mounting plate and
the wall.
4
Tighten all bolts. Pull the plate away from
the wall to help tighten the bolts.
You need to drill holes for the top support
screws and a hole large enough for the power
cord to fit through.
• Read the instructions on the TOP CABINET
TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on
the TOP CABINET TEMPLATE.
CAUTION:Wear safety goggles when drilling
holes in the cabinet bottom.
EN-16
