36" DUAL FUEL RANGE INSTALLATION INSTRUCTIONS
NOTES:
1. Do not seal the range to the side cabinets.
2. Clearance from adjacent walls or other vertical surfaces or structures such as cabinets.
3. Measurements listed are minimum clearances between the cooktop and the bottom of the cabinet.
4. 0" clearance between range and cabinets or vertical surfaces that are below the cooktop height.
5. 0" clearance between range back and rear wall or cabinet.
Cabinet Dimensions
Clearances and Dimensions
• Provide adequate clearances between the appliance and adjacent combustible surfaces.
• Location - Check location where the appliance will be installed. Check for proper electrical supply and
floor stability.
• Dimensions shown must be used. Given dimensions provide minimum clearance. Contact surface must
be solid and level.
MODEL
F. MINIMUM
CUTOUT
WIDTH
G. HEIGHT OF
COUNTERTOP
H. CLEARANCE
FROM SIDE
WALLS
2
I. CLEARNACE
FROM COOKTOP
AND CABINET
BOTTOM
3
J. CLEARANCE
WIDTH OF
OVERHEAD
CABINETS
36" 36" (91.4 cm)
36" (91.4 cm)
Standard
5" (12.7 cm) Min.
36" (91.4 cm)
Min.
36" (91.4 cm) Min.
35 3/4" (90.8 cm)
Min.
H
I
F
G
J
18" Min.
(45.7 cm Min.)
13" Max.
(33 cm Max.)
24" Min.
(61 cm Min.)
24½" max.
(62.2 cm Max.)

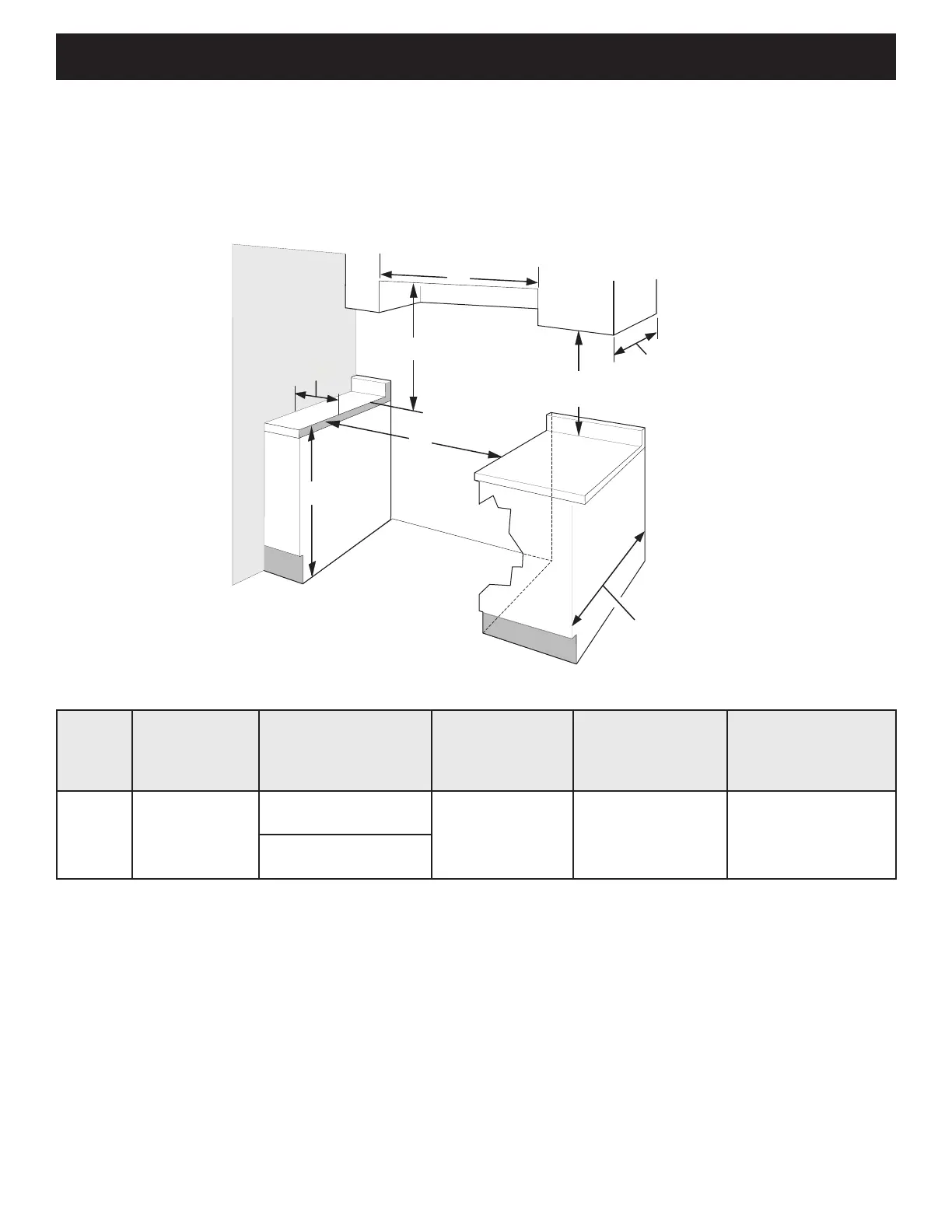

Figure 2: Cabinet Dimensions
*36" (914 mm) minimum clearance between the top of the cooking surface and the bottom of an
unprotected wood or metal cabinet; or 30"(762 mm) minimum when bottom of wood- or metal cabinet
is protected by not less than 1/4"(6mm) flame retardant millboard covered aith not less than no.28 MSG
sheet steel, 0.015"(0.4mm) stainless steel, 0.024"(0.6mm) aluminum or 0.020"(0.5mm) copper. 0"(0mm)
clearance is the minimum for the rear of the range.
Follow all dimension requirement provided above to prevent property damage, potential fire hazard, and
incorrect countertop and cabinet cuts.
