19
CARE AND CLEANING
Cooktop Control Knob Reinstallation
To remove a knob: turn to the OFF position, grasp
firmly, and pull o the shaft.
To replace a knob: line up the OFF marking and
push the knob into place.
For information about cleaning the knobs, see
page 17.
IMPORTANT
Each cooktop surface element type (single, dual,
and simmer-to-boil) has its own specific type of
control knob. These knobs are NOT interchang-
able among the dierent element types. Rein-
stalling knobs to a dierent element type and
shaft type may result in damage to the knob and
shaft.

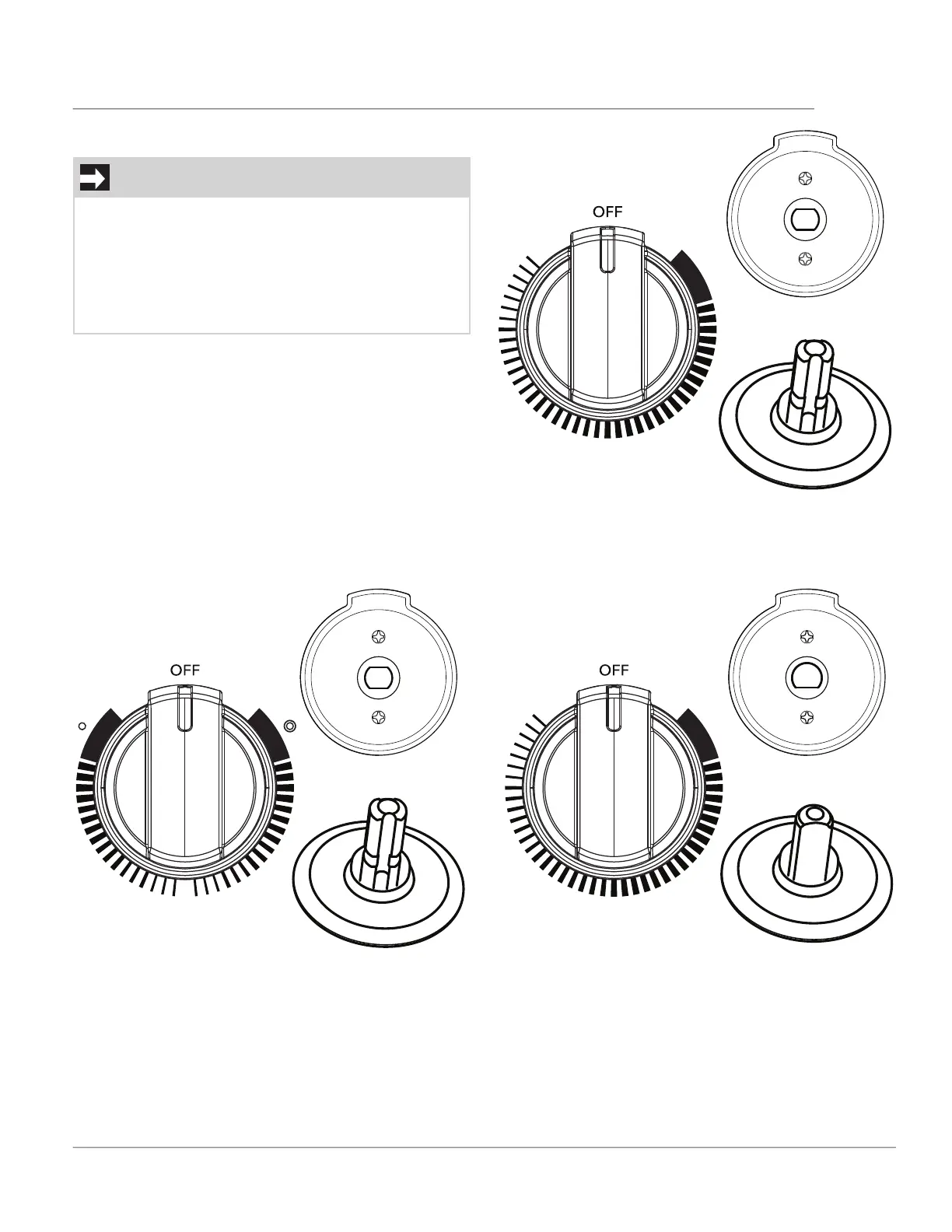

Figure 14: Single Element Knob
KNOB ON COOKTOP
BACK OF KNOB
KNOB SHAFT
Figure 15: Dual Element Knob
KNOB ON COOKTOP
BACK OF KNOB
KNOB SHAFT
Figure 16: Simmer to Boil Element Knob
KNOB ON COOKTOP
BACK OF KNOB
KNOB SHAFT
