Je bekijkt pagina 10 van 28
hinge, making adjustments until the
stopper is flush against the unit.
Tighten all screws.

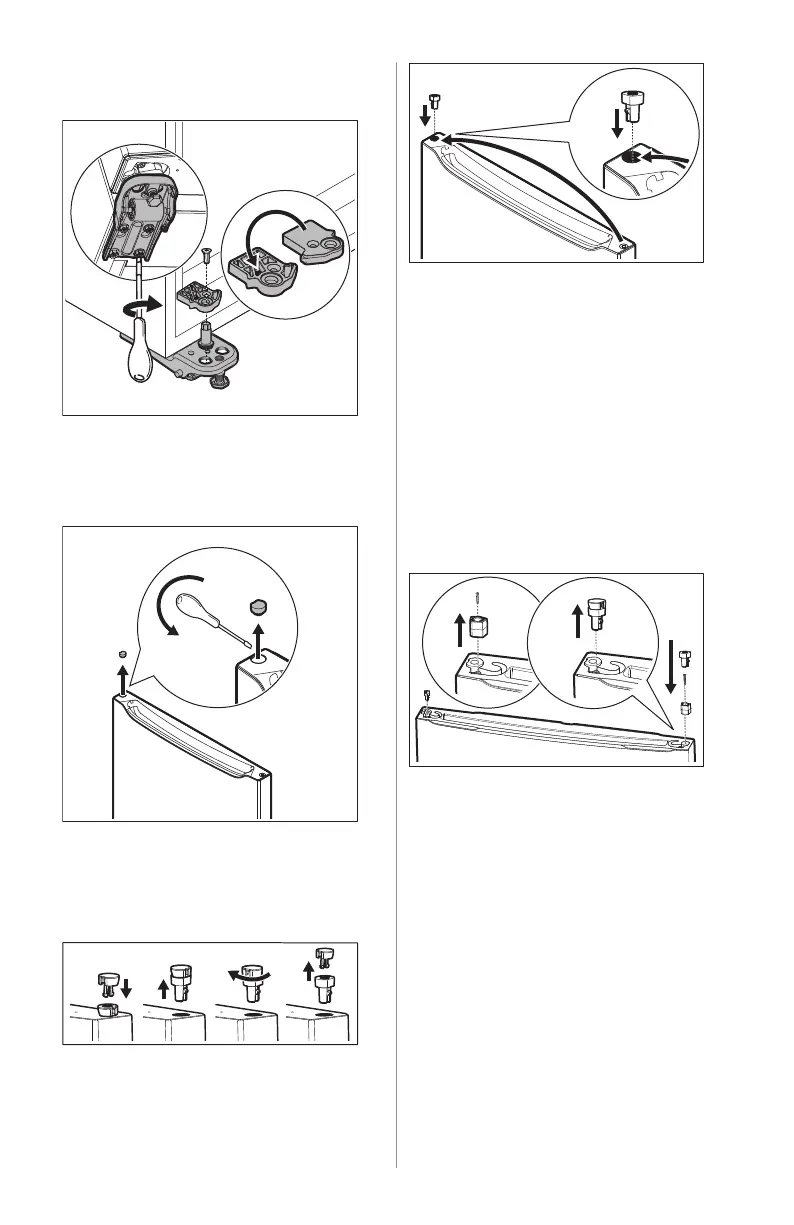

4.2 Door reversal
1. With a flathead screwdriver, pry out
bearing cover from the left side of the
refrigerator door.
2. Snap the cover into the upper right
bearing of the refrigerator door and
pull it straight out.
3. Twist and pull the cover to release
from the bearing. Insert bearing in the
hole at the opposite end of the door.
4. Reverse the door handle if applicable
(refer to Door Handle Installation)
5. Flip the refrigerator door over and
follow the procedure:
A. Remove the screw from the
stopper using a multi-bit
screwdriver with a
#2 square bit
and set it aside.
B. Snap the bearing cover in the
bearing and pull to remove the
bearing. Twist the cover to release
it from the bearing.
C. Install the bearing on the opposite
side of the door. Flip the stopper,
replace it on the opposite side of
the door, and replace the screw.
A B C
6. Repeat steps for the freezer door.
7. Place the bearing cover in the
remaining open hole at the top of the
refrigerator door.
8. Screw in and tighten the center hinge
pin using an adjustable wrench.
10 ENGLISH
