10

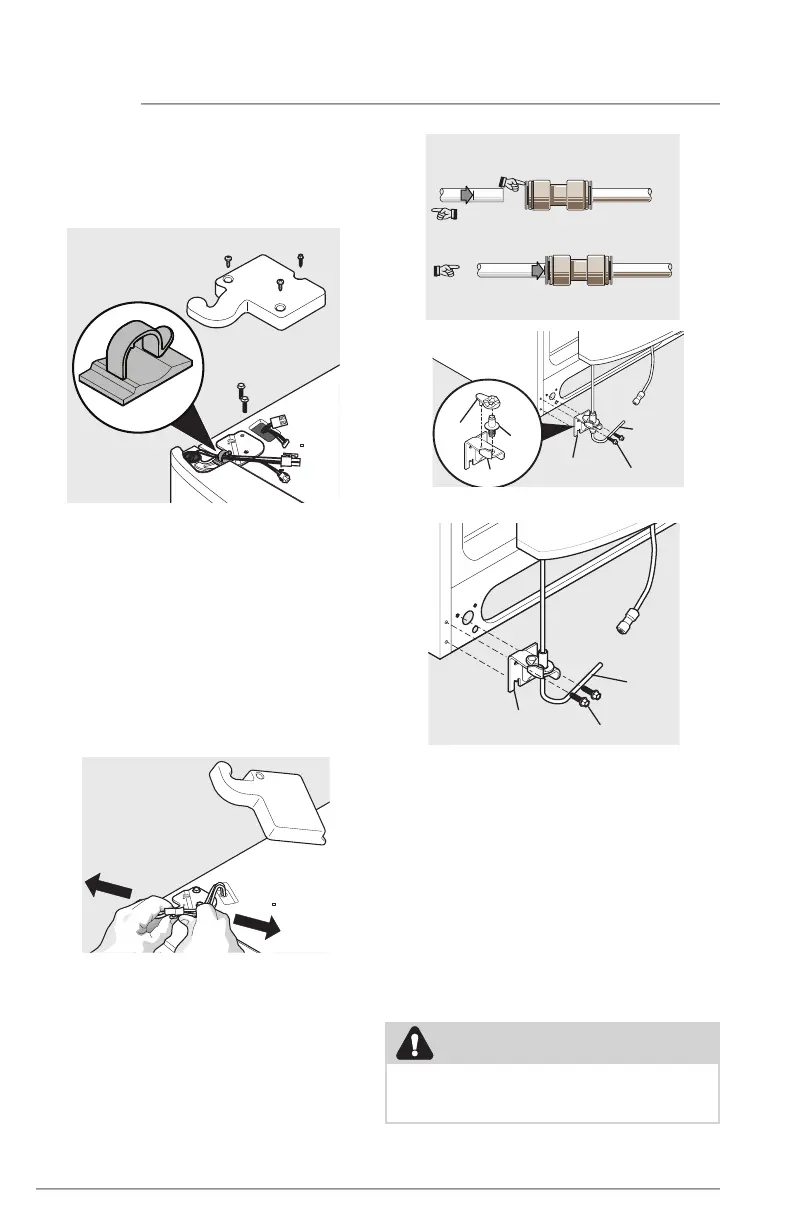

DOOR REMOVAL
CAUTION
Be sure doors are set aside in a secure
position where they cannot fall and
cause personal injury.
Door
Hinge
Assembly
Screws
Water
Line
Tubing
Non-Adjusting Hinge (some models)
Closer
Pin
Hinge
Door
Water
Line
Tubing
Screws
Hinge
Assembly
Adjustable Hinge (some models)
To remove the freezer top hinge cover:
1. Remove the 2 screws from the cover
over the top door hinge.
2. Lift hinge cover straight up and o.
3. Trace lightly around the hinge with a
pencil. This makes reinstallation easier.
4. Detach the water tube from the
connector located below the freezer
door. The connector releases when
you press its outer sleeve inward.
5. Remove the 2 screws from the top
hinge and lift the hinge straight
up, pulling the 2 multi-wire cables
through it. Lift the door o of the
bottom hinge.
6. Remove the 2 bottom hinge screws
and hinge if necessary.
7. Lay the door on its side to avoid
damage to the water tube extending
from the bottom hinge.
To reinstall the freezer door, reverse the
above steps.
To Disconnect
1. Press outer ring against face of
fitting
2. Pull to
remove tube
Insert tube and push until mark
touches face of fitting
To Connect
To remove the freezer door:
1. Release the wires from the routing
clip. NOTE: To prevent wire damage,
ensure the wires are rerouted
through the routing clip when
reassembling the hinge cover.
2. Disconnect the 2 multi-wire cable
connectors located above the
top hinge. Grasp both sides of
the connector firmly, press the
connector lock and pull apart.
Remove the ground screw.
