WATER SUPPLY CONNECTION
IMPORTANT
Your refrigerator’s water supply system
includes several tubing lines, a water
filter, and a water valve. To ensure your
water dispenser works properly, you
must completely fill this system with wa-
ter when you first connect your refriger-
ator to the household water supply line.
NOTE
These instructions do not cover after mar-
ket ice maker installation. Instructions in
after market ice maker kit should be used.
4. If you use copper tubing - Slide
brass compression nut, then
ferrule (sleeve) onto water supply
line. Push water supply line into
water valve inlet as far as it will
go (¼inch/6.4mm). Slide ferrule
(sleeve) into valve inlet and finger
tighten compression nut onto valve.
Tighten another half turn with a
wrench; DO NOT over tighten. See
Figure 1.
If you use braided flexible stainless
steel tubing - The nut is already
assembled on the tubing. Slide nut
onto valve inlet and finger tighten
nut onto valve. Tighten another half
turn with a wrench; DO NOT over
tighten. See Figure 2.
5. With steel clamp and screw, secure
water supply line to rear panel of
refrigerator as shown.
6. Coil excess water supply line
(copper tubing only), about
2½turns, behind refrigerator as
shown and arrange coils so they
do not vibrate or wear against any
other surface. Do not kink tubing.
7. Turn ON water supply at shuto
valve and tighten any connections
that leak.
8. Reconnect refrigerator to electrical
power source.
9. To turn ice maker on, ensure Ice
Maker is enabled on display (LED
will be lit) or set the ice maker’s
On/o power switch to the “ON”
position (freezer ice maker).

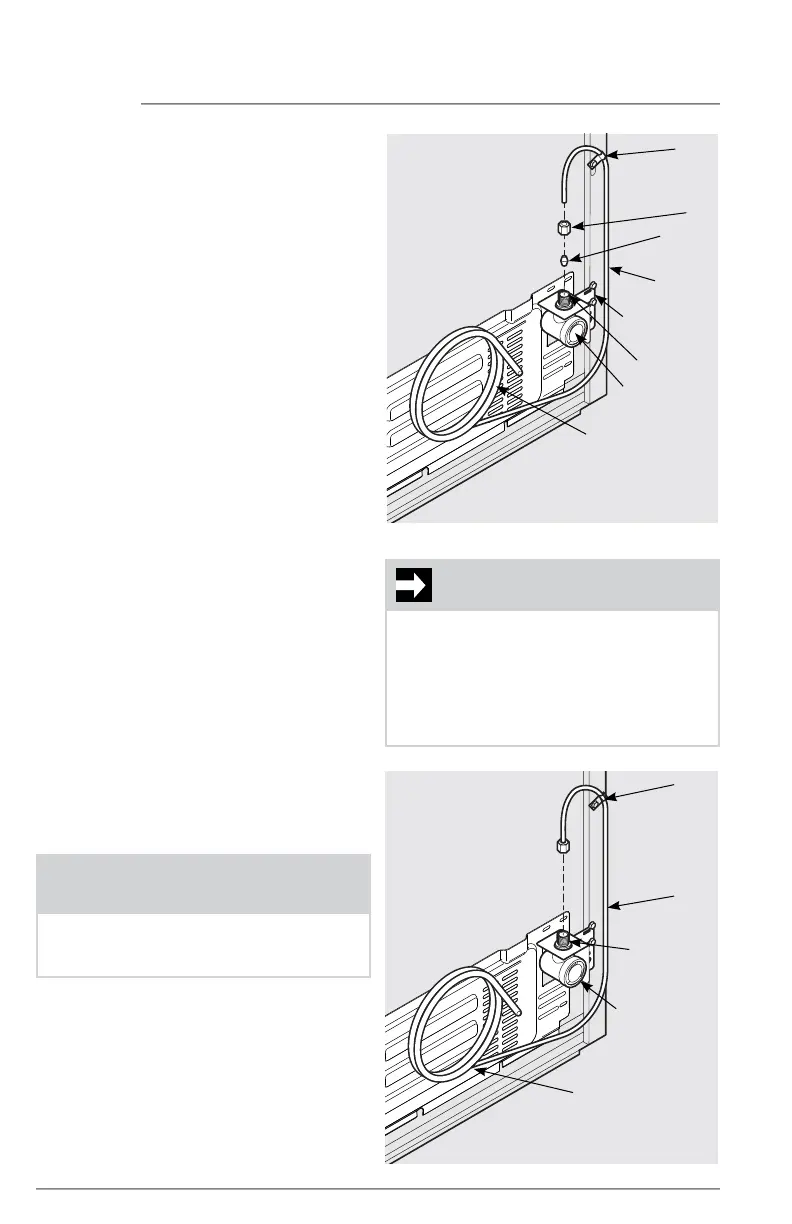

Figure 1
Steel
Clamp
Brass
Compression
Nut
Ferrule
(Sleeve)
Copper
Water line
Water Valve
Bracket
Valve Inlet
Water Valve
Copper waterline
from household
water supply
(Include enough tubing
in loop to allow moving
refrigerator out for cleaning)
Figure 2
Steel
Clamp
Valve Inlet
Water Valve
Braided
Flexible
Stainless
Steel
Water Line
(Include enough
tubing in loop
to allow moving
refrigerator out
for cleaning)
6 ft. (1.8 Meters)
Braided flexible
stainless steel water
line from household
water supply.
