DOOR REMOVAL/REVERSAL
(UNITS WITH TEMPERATURE CONTROL OUTSIDE)
17. Remove the left bottom hinge using
5/16" (8 mm) wrench and install on
the right side. Figure 7.
18. Reattach the bottom hinge (with the
door stop) to the left side of the cab-
inet and add the wheel spacer on the
left side of the wheel axle. Adjust the
bottom hinge so the door stopper is
flush with the front of the unit.

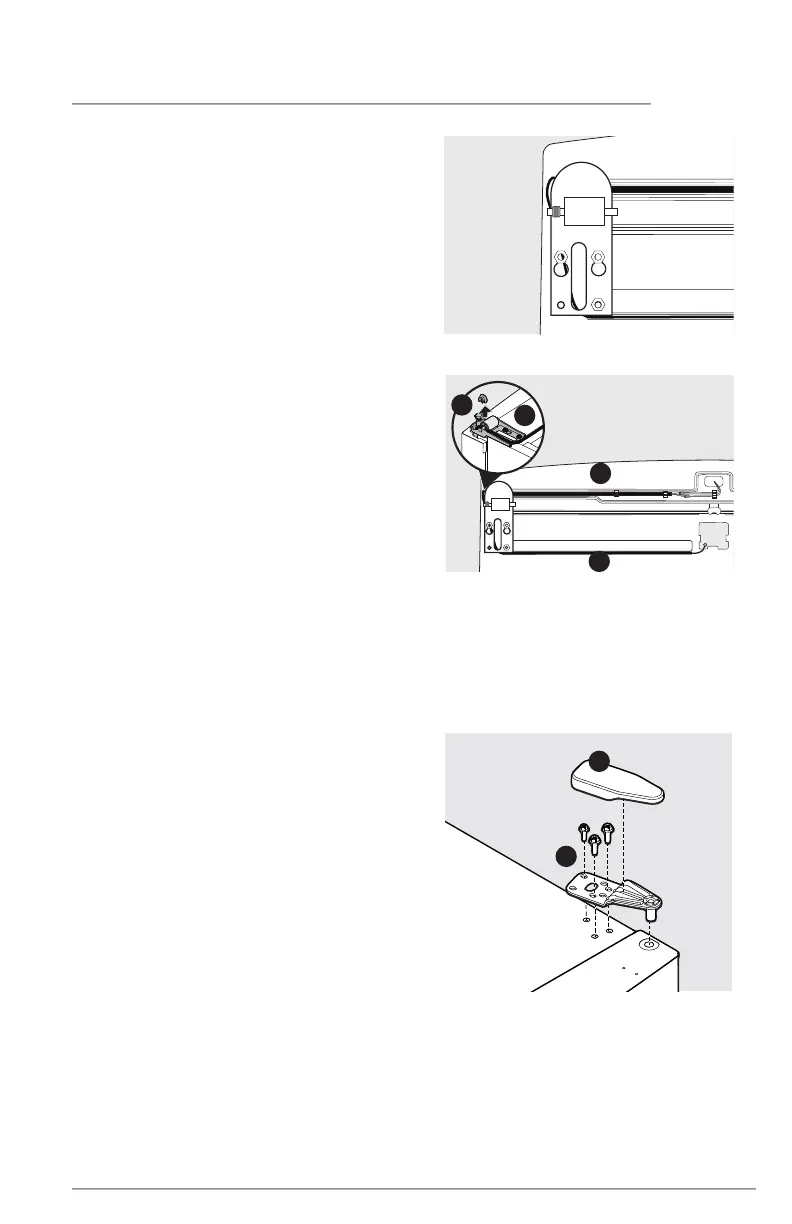

Figure 7
19. Route the gray cable and connectors
through the left side plastic channel
(see Figure 8A).
20. Route the gray cable and connectors
under the left side wheel axle and
wheel spacer (see Figure 8B).
21. Route the connectors and gray ca-
ble through the left side hole in the
hinge (see Figure 8C).
22. Insert the gray cable into the left
side door channel in the bottom of
the door (see Figure 8D).
23. Route the gray cable underneath the
2 harness retaining clips on the left
side of the door channel.
24. Reconnect the blue and
white connectors.
25. Remove the hinge cover (see Figure
9A) and use a 5/16" wrench to re-
move the top hinge (see Figure 9B).
Figure 9
A
B
+
Figure 8
A
B
C
D
