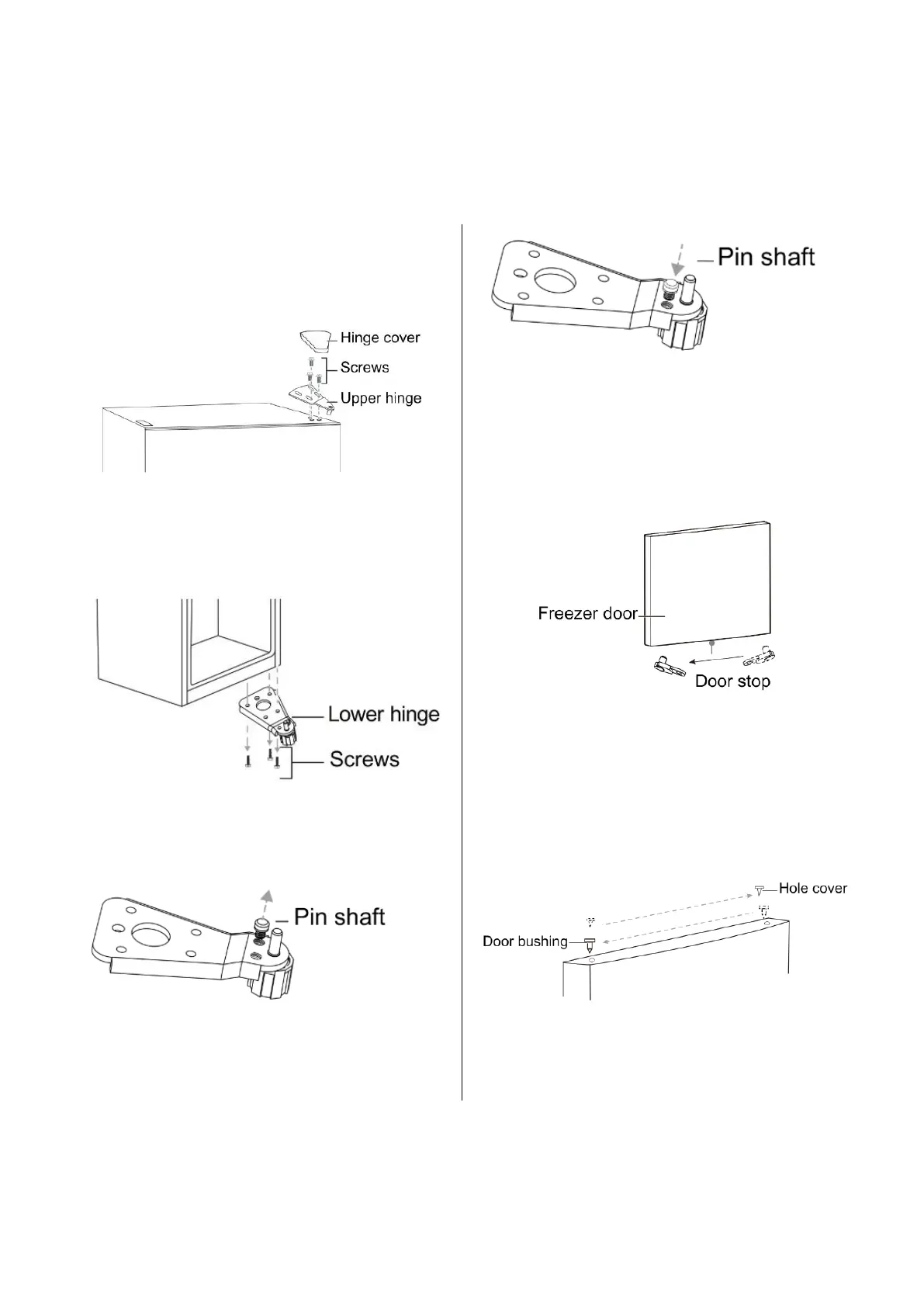

Change of direction of the door
Warning! Before changing the door opening direction, please unplug the appliance.
1. Make sure your freezer is unplugged.
2. Lift the hinge cover. Remove the three screws
that secure the top hinge to the door, then
remove the hinge.
3. Remove the freezer door.
4. Remove the screws that secure the bottom
hinge on the right side of the device, then
remove the hinge.
5. Remove the washer and nut that secure the
pin shaft to the right hole in the bottom hinge,
then remove the shaft.
6. Insert the pin shaft into the left hole of the
bottom hinge, then secure the shaft with washer
and nut.
7. Install the bottom hinge on the left side of the
unit.
8. Remove the screw that secures the door
stopper to the lower right side of the freezer
compartment door, then remove the door
stopper and install it on the lower left side.
9. Install the freezer compartment door.
10. Move the door ring from the upper right side
of the freezer door to the upper left side of the
door. And move the left hole cover to the right
side.
11. Remove the hole cover from the upper left
side of the device and attach the cover to the
upper right side of the device.
