UNIT DISASSEMBLY AND COMPONENT REPLACEMENT

Remove Outdoor Fan

WARNING

ELECTRIC SHOCK HAZARD

Turn off electric power before service or

installation. Extreme care must be used, if it

becomes necessary to work on equipment with

power applied.

Failure to do so could result in serious injury or

death.

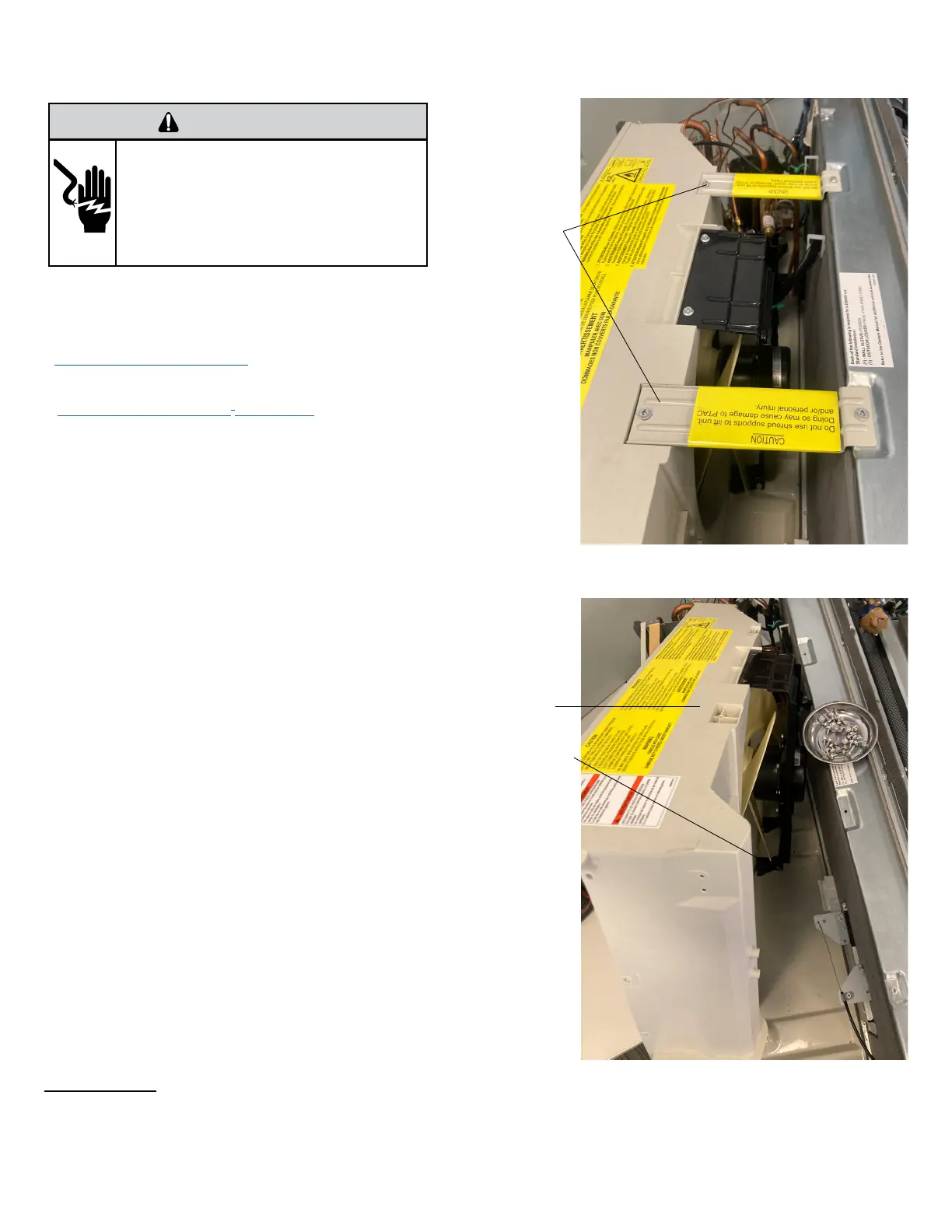

Figure 715 (Shroud Supports)

Figure 716 (Outdoor Fan Shroud)

Shroud

Supports

Fan

Shroud

Lower Fan

Mount

Screws

1. Remove front panel and chassis. (Figure 701).

2. Remove 2 shroud supports

3. Open Electrical control box (S

1

ee ﬁgure 704). Not required for

Blade replacement)

4. Cut wire ties as required. Not required for Blade replacement)

5. Disconnect indoor blower terminals on main pcb. Not required for

Blade replacement)

7. Disconnect Indoor blower capacitor connector. Not required for

Blade replacement)

8. Remove outdoor fan shroud (9 screws)

9. Remove lower fan mount screws (2 ea).

10. Remove shroud from unit and replace blade and/ or motor as

required.
