UNIT DISASSEMBLY AND COMPONENT REPLACEMENT
Remove Blower Wheel Housing, Blower wheel, Motor and Electric Heater
3. Slide blower housing assembly out of unit
(See figure 710).
4. Replace Blower Wheel.
a. Remove housing left side panel (See Figure 711).
b. Loosen set screw (Do not remove!) with a 2.5 mm allen wrench (See figure
712).
5. Replace blower wheel motor.
a. Loosen set screw (Do not remove!) with a 2.5 mm allen wrench (See figure 712).
b. Open Electrical control box (See figure 704)
c. Disconnect 2 plugs on main pcb.
Blower
housing
left Panel
Heater
Brackets

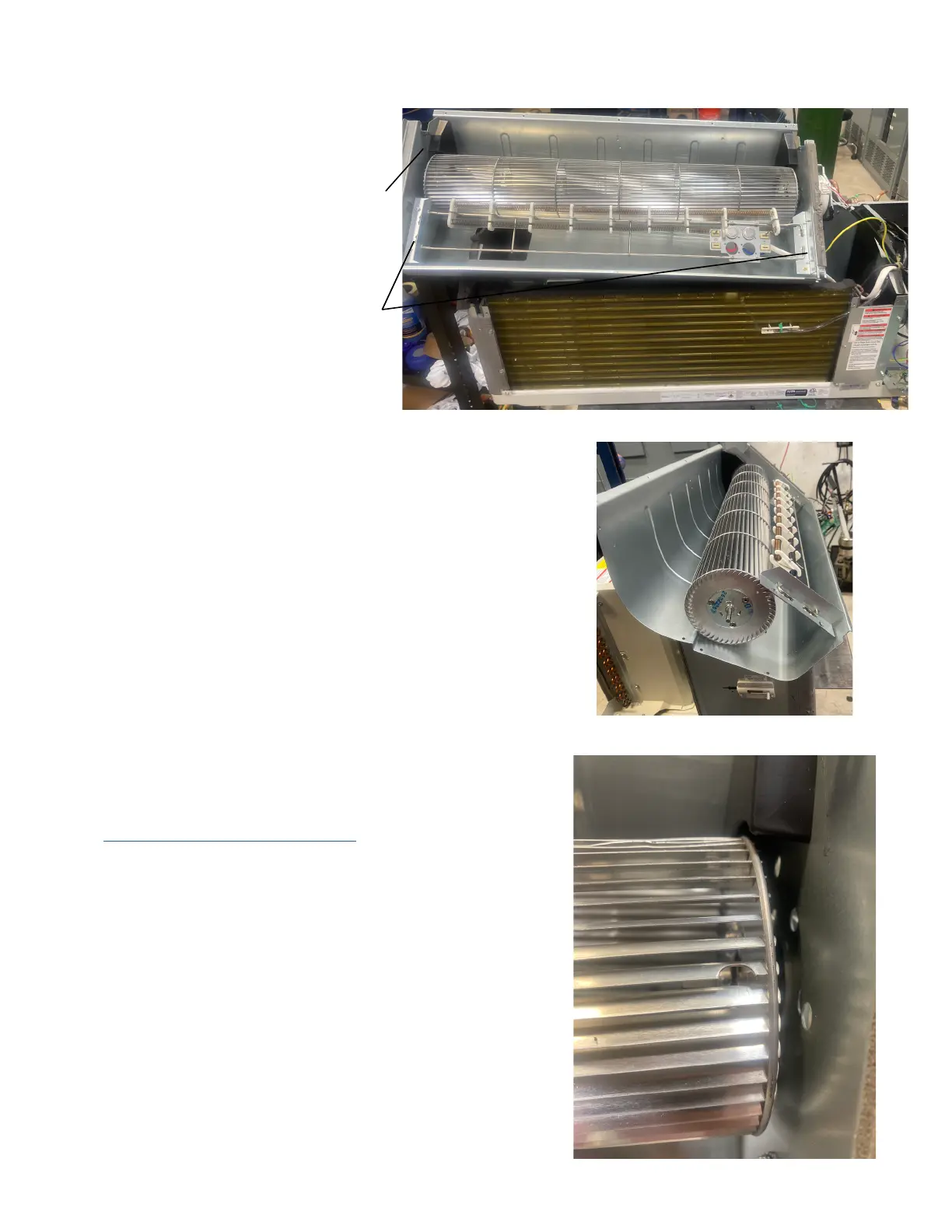

Figure 710 (Slide up Housing)
Figure 711 (Left Panel Removed
Figure 712 (Loosen Set Screw)
