UNIT DISASSEMBLY AND COMPONENT REPLACEMENT
Remove Power Cord

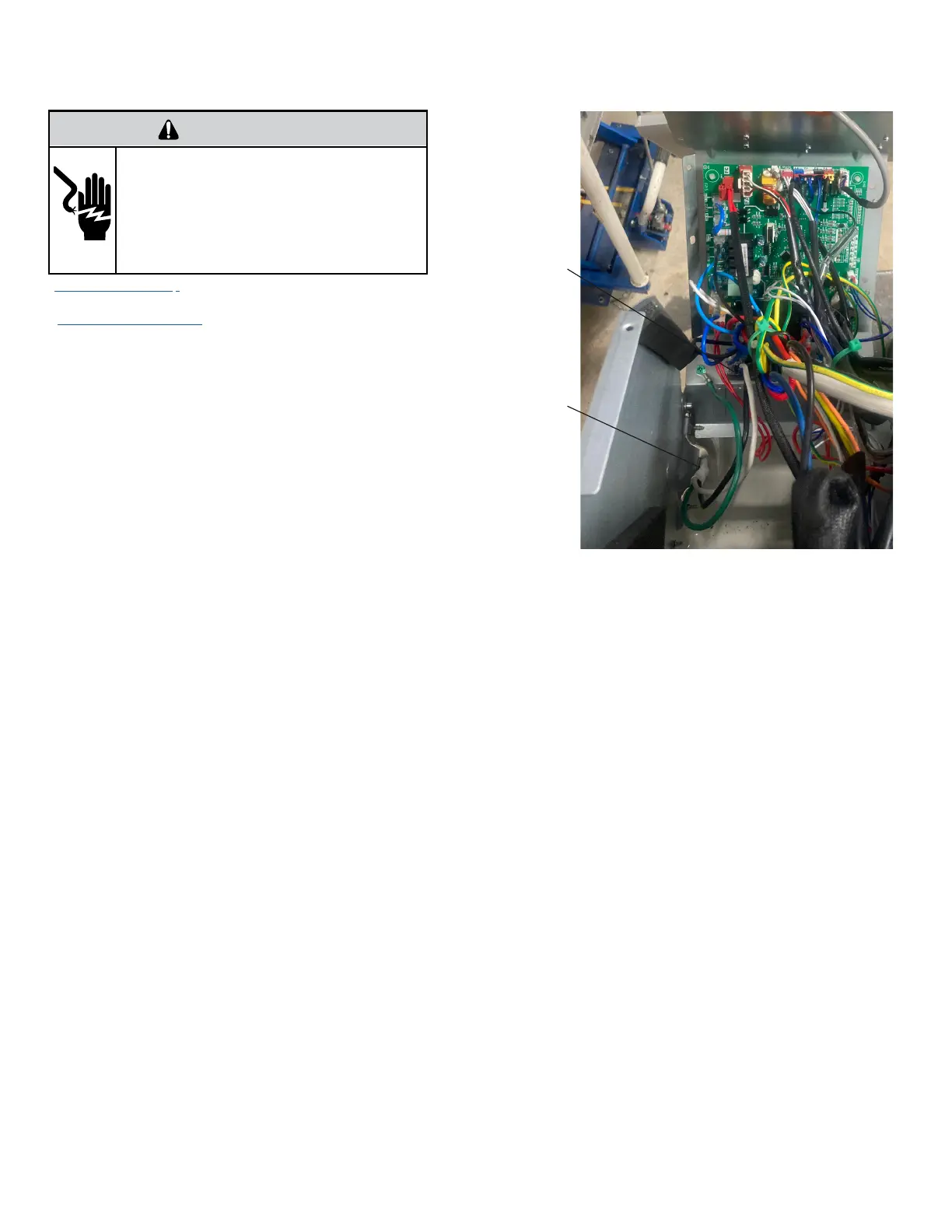

Figure 707 (Remove Power Cord)
WARNING
ELECTRIC SHOCK HAZARD
Turn off electric power before service or
installation. Extreme care must be used, if it
becomes necessary to work on equipment with
power applied.
Failure to do so could result in serious injury or
death.
1. Remove front panel (Figure 701).
2. Remove Operation Panel(Figures 702 thru 703).
3. Remove 7 screws.(Figure 704)
4. Unhinge electrical box. (Figure 705)
5. Disconnect Wires From Main PCB(See Figure 707).
6. Remove Power cord access panel and replace power cord.
Disconnect Wires
Remove Power
Cord Access Panel
