SPECIFICATIONS

Electrical Data

2 3 4 5 6 7 8

9 10 11 12 13 14 15 16

17 18

19 20 21 22 23 24

25 26 27 28 29 30 31 32

33 34 35 36 37 38 39

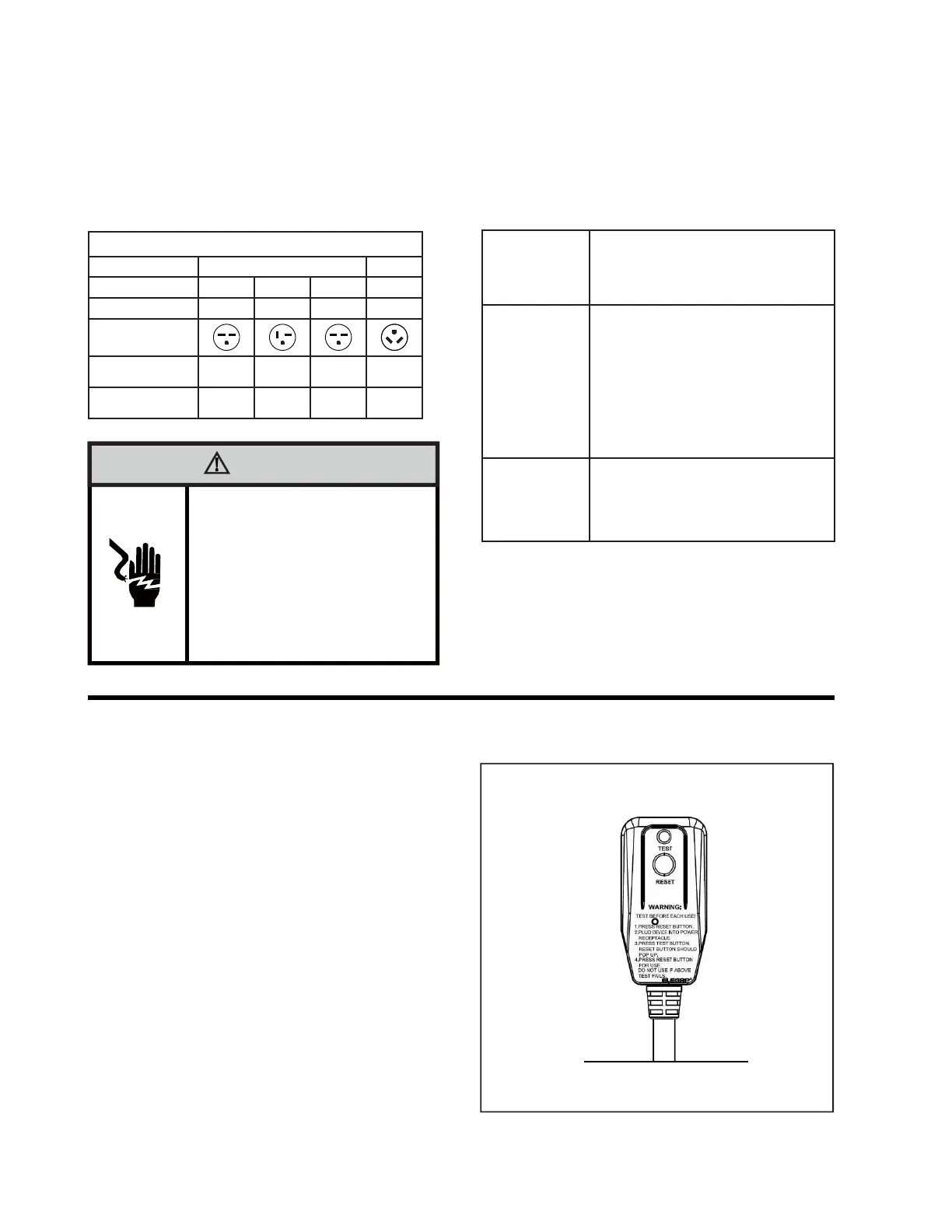

A. Electrical Rating Tables

All units are equipped with standard power cords.

NOTE: Use Copper Conductors ONLY. Wire sizes are per NEC, check local codes for overseas applications.

All Friedrich 230/208V PTAC units are shipped from the factory with a

Leakage Current Detection Interrupter (LCDI) equipped power cord. The

LCDI device meets the UL and NEC requirements for cord connected air

conditioners effective August 2004.

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.

2. Press RESET.

3. Press TEST (listen for click; Reset button trips and pops out).

4. Press and release RESET (listen for click; Reset button latches

and remains in). The power supply cord is ready for operation.

NOTE: The LCDI device is not intended to be used as a switch. Once

plugged in the unit will operate normally without the need to reset The

LCDI device.

If the LCDI device fails to trip when tested or if the power supply cord is

damaged it must be replaced with a new supply cord obtained from the

product manufacturer, and must not be repaired.

B. Power Cord Information (230/208V models only)

Turn off electrical power before service

or installation.

ALL electrical connections and wiring

MUST be installed by a qualified

electrician and conform to the National

Code and all local codes which have

jurisdiction.

Failure to do so can result in property

damage, personal injury and/or death.

Electrical Shock Hazard

WARNING

Figure 14

FRP014

Typical LCDI Devices

15/20A/30A LCDI Device

Table 1 Receptacles and Fuse Types

Voltage 230V

20 30

265V

Amps

Heater Size

Receptacles

FUSE/CIRCUIT

BREAKER

Use ONLY type and size fuse or HACR

circuit breaker indicated on unit’s rating plate.

Proper current protection to the unit is the

responsibility of the owner. NOTE: A time

delay fuse is provided with 265V units.

The field supplied outlet must match plug on

service cord and be within reach of service

cord. Refer to Table 1 for proper receptacle

and fuse type. Do NOT alter the service

cord or plug. Do NOT use an extension

cord.

3.6kW 5.0kW 3.6kW

NEMA#

Receptacle

6-20R 6-30R 7-20R

NEMA#

Plug

6-20P 6-30P 7-20P

2.5kW

6-15R

6-15P

RECEPTACLE

GROUNDING

Unit MUST be grounded from branch circuit

through service cord to unit, or through

separate ground wire provided on perma-

nently connected units. Be sure that

branch circuit or general purpose outlet is

grounded. The field supplied outlet must

match plug on service cord and be within

reach of service cord. Refer to Table 1 for

proper receptacle and fuse type. Do NOT

alter the service cord or plug. Do NOT use

an extension cord.
