E. ELECTRICAL

4.0 IN.

18.0 IN.

TRIM HARNESS

LENGTH

STRIP

WIRE ENDS (0.5 IN.)

TO WALL JUNCTION

TO CHASSIS JUNCTION

EXPOSE

WIRES

(1.0 IN.)

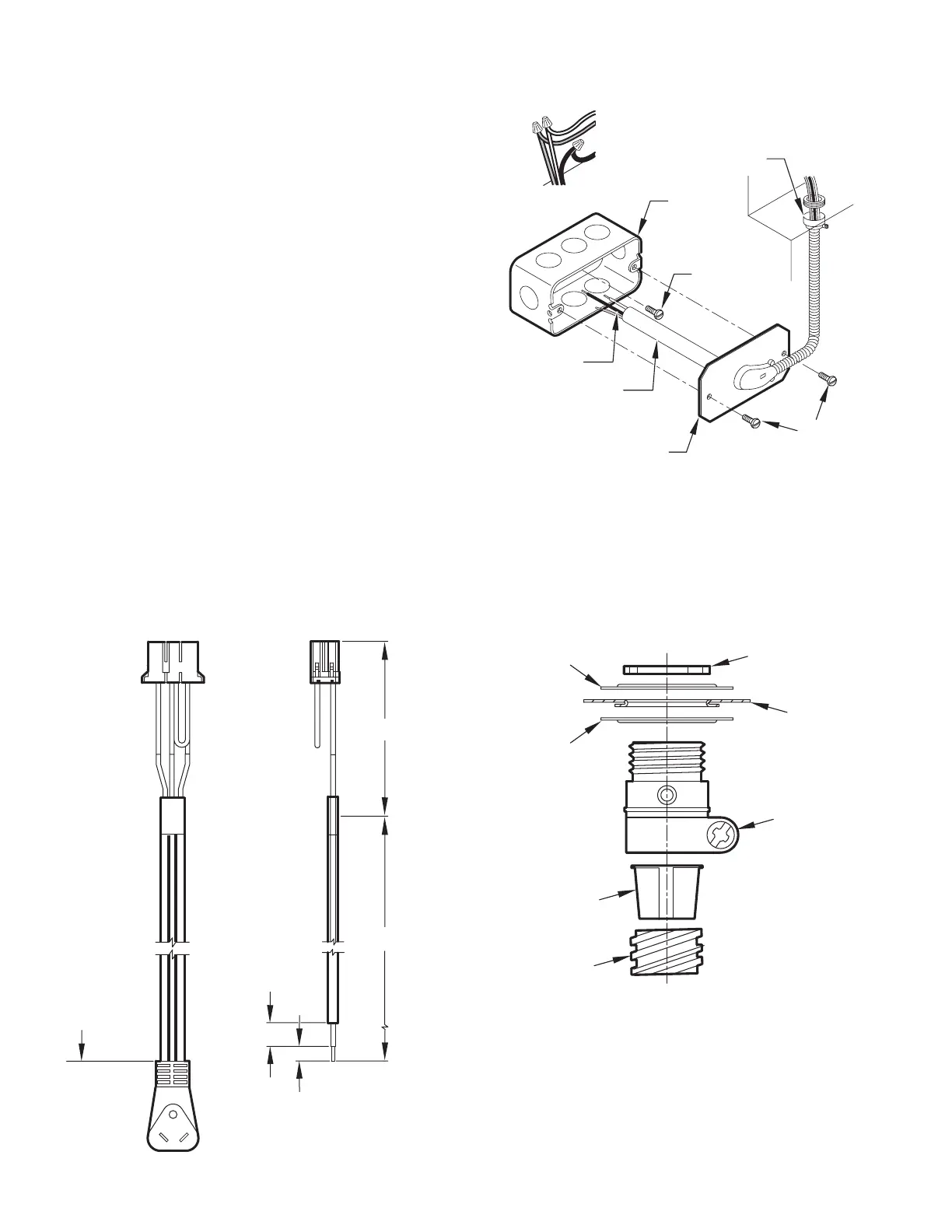

Figure E.3.1 (265v Power Cord)

E.3.1 Power Cord Installation (Cont)

PXCJA Conduit Kit is required with this setup.

Follow the removal process of the chassis’s junction box.

Route the cut ends of harness through the conduit connector

assembly and ﬂex conduit sleeve. Be sure to use the supplied

conduit bushing to prevent damage to the cord by the conduit.

The cord should pass through the Locknut, Spacer, Chassis Junction

Box, Conduit Connector, Bushing, then the Conduit Sleeve. See

Figure E.3.2.

Route the cut ends of the power cord through the elbow connector at

the other end of the conduit. Tighten screws on elbow connector to

secure conduit sleeve.

Fasten and secure the elbow connector to the wall junction box cover

with locknut. Place and mount the wall junction box with the four

wall mounting screws making sure to pass the wall lines through the

junction box. Connect and join all wall lines with the stripped ends

using wire nuts. Tighten both screws of the wall junction box cover

to junction box.

1. Follow steps 4-6 in Section E.4 and refer to Figure E.4.2.

GROUND

SCREW

GROUND

WIRE

HARNESS

JUNCTION

BOX

LL CONNECTION

JUNCTION

BOX COVER

COVER

SCREWS

STRAIGHT

CONNECTOR

Figure E.3.2 (Wall Connection)

LOCKNUT

ACER

BUSHING

LEADING SIDE FOR

WIRE HARNESS INSERTION

EXITING SIDE FOR

WIRE HARNESS

CHASSIS

JUNCTION

BOX

CONDUIT

CONNECT

CONDUIT

SLEEVE

Figure E.3.3 (Harness Connector)
