C. INSTALLATION OF THE UNIT

C.5.2 Chassis Install

CAUTION

Unit Damage Hazard

Failure to follow this caution may result in equipment damage

or improper operation.

Failure to remove shipping tape and screw will prevent fresh

air vent door from opening and may result in damage to vent

door cable.

INSTALL UNIT INTO WALL SLEEVE

1.Carefully remove shipping tape from the front pa

nel and vent door.See Fig. C.5.2.1

2.Remove shipping screw from the vent door,if present.See Fig. C.5.2.2

3.Remove front panel.See Fig. C.5..2..3

4.Lift unit level and slide unit into wall sleeve until foam seal rests firmly against front of wall sleeve.

5.Secure with four screws (supplied) through the unit flange holes.See Fig.C.5.2.4

6.Reinstall front panel.See Fig.C.5.2.5

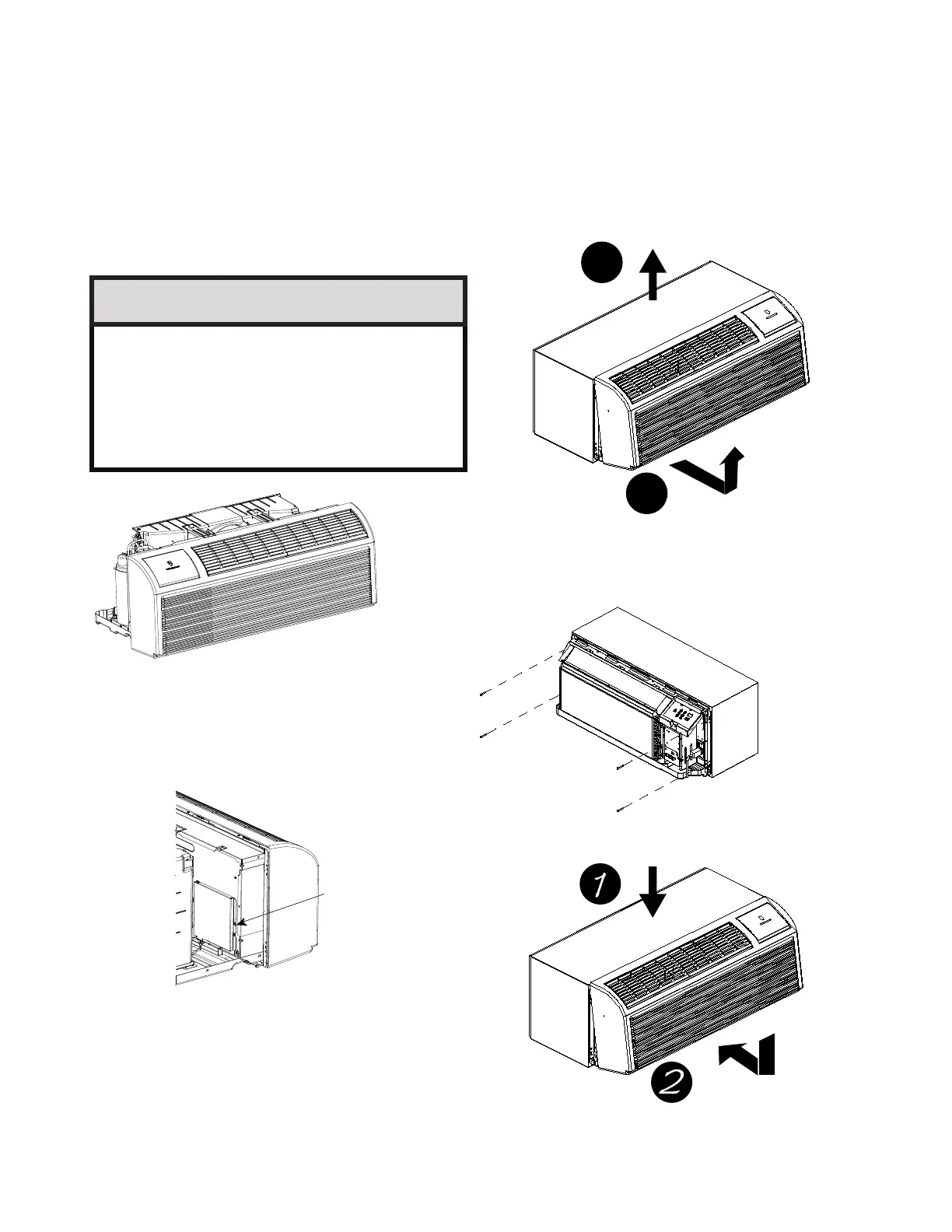

Fig.C.5.2.1–Shipping Tape Location

Pull out at the bottom to release it from the tabs

(1).Then lift up (2).

Fig. C.5.2.3 –Removing Front Panel

Remove shipping

if present.

Fig. C.5.2.2–Shipping Screw Location

Fig. C.5.2.4 –Securing Unit

Place tabs over top rail(1). Push Inward at

bottom until panel snaps into place(2).

Fig. C.5.2.5 –Replacing Front Panel
