R . INFORMATION FOR THE OWNER

R.2 Routine Maintenance

Preventative maintenance is essential to proper unit oeration,

efﬁciency and longevity. To ensure equipment operates properly,it

must be properly maintained. Equipment operation should be checked

and veriﬁed several times during each year. During regular unit

inspection and maintenance, follow the guidelines below:

Clean basepan and outdoor vent ﬁlter.

Clean or install new indoor-air inlet ﬁlter(s).

Clean wall sleeve and outdoor grille.

Inspect cord and receptacle.

Clean outdoor oriﬁce and fan.

Clean indoor coil.(Never use high pressure spray on coils.)

Clean indoor fan,wire screen and front panel.

Secure electrical connections.

Ensure front panel is properly mounted and not damaged.

Ensure wall sleeve is installed properly.

Ensure heat and cool cycles operate properly.

Front panel and case

Turn unit off and disconnect power supply.

To clean, use water and a mild detergent. Do not use bleach or

abrasives. Some commercial cleaners may damage the plastic parts.

Outdoor coil

Coil on outdoor side of unit should be checked regularly. Unit will

need to be removed to inspect dirt build-up that will occur on

the inside of the coil. If clogged with dirt or soot, coil should be

professionally cleaned.

Note: never use a high-pressure spray on coil.

Clean inside and outside of outdoor coils regularly.

R.3 Qualiﬁcation Of Workers

Qualiﬁcation of the working personnel for maintenance, service

and repair operations should according to UL 60335-2-40、CAN/

CSA-C22.2 No. 60335-2 -40-19 Annex HH.. Every working procedure

that affects safety means shall only be carried out by competent

persons according to Annex HH. Special training additional to

usual refrigerating equipment repair procedures is required when

equipment with FLAMMABLE REFRIGERANTS is affected.

Coils

Grill

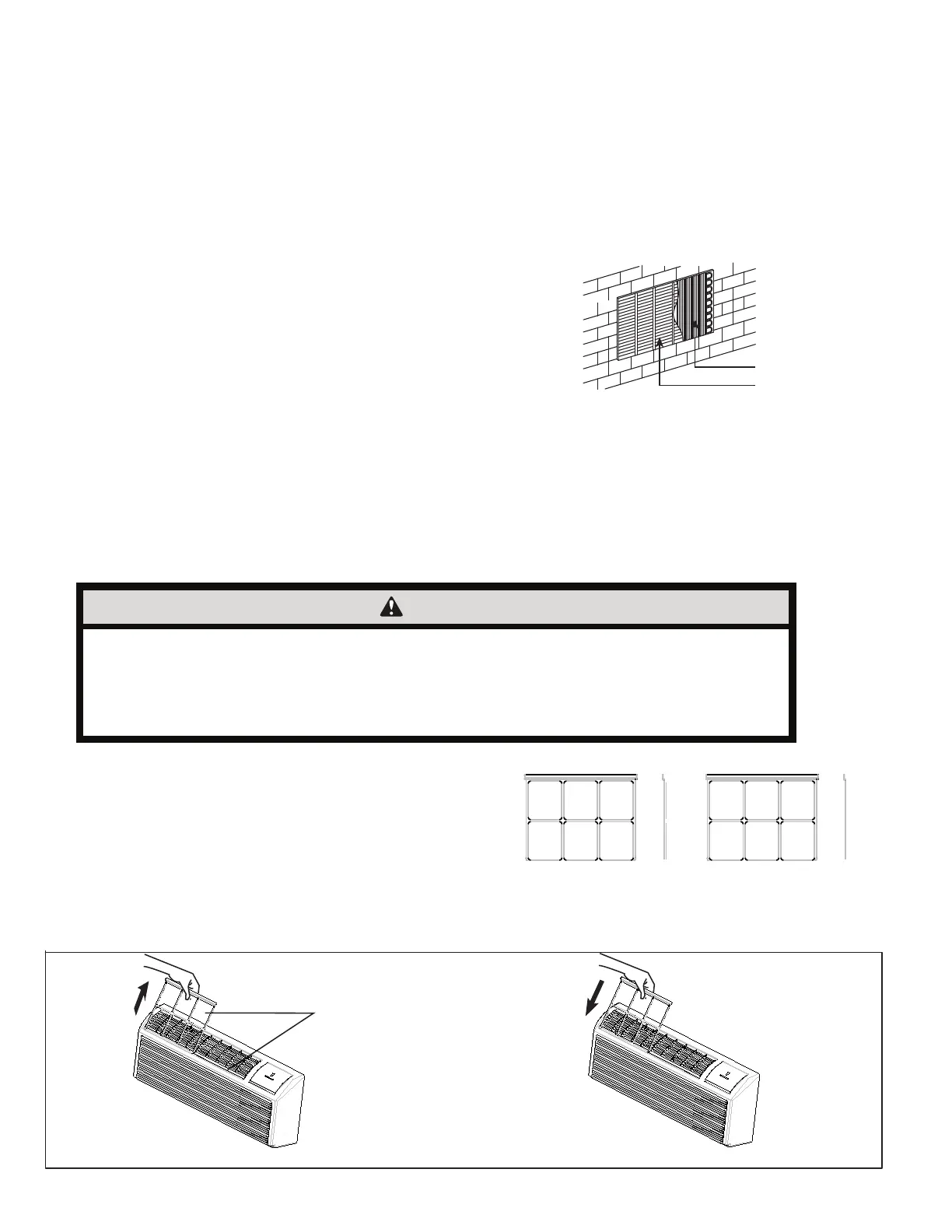

Figure R.2.1 (Outdoor Coil)

CAUTION

UNIT DAMAGE HAZARD

Failure to follow this caution may result in equipment damage or improper operation.

Do not operate unit without filters in place. If a filter becomes torn or damaged, it should be replaced immediately.

Operating without filters in place or with damaged filters will allow dirt and dust to reach indoor coil and reduce

cooling, heating,airflow and efficiency of unit. Airflow restriction may cause damage to unit.

The most important thing you can do to maintain unit efﬁciency is to clean

the ﬁlters at least every 30 days (or sooner depending on application).

Clogged ﬁlters reduce cooling, heating and airﬂow.

Keeping ﬁlters clean will:

Decrease cost of operation.

Save energy. Prevent clogged indoor coil.

Reduce risk of premature component failure.

To Clean Air Filters:

Vacuum off heavy soil.

Run water through ﬁlters.

Dry thoroughly before replacing.

Dirty Filter - Needs Cleaning Clogged Filter - Greatly Reduces

Cooling, Heating and Airﬂow

Figure R.2.2 (Identifying A Dirty Or Clogged Filter)

Figure R.2.3 (Replacing The Air Filter)

2 Air ﬁlters

Pull up

Push down

Replacing Air Filter

Fig.29-Removing and Replacing Air Filter

Removing Air Filter
