E. ELECTRICAL

E.4 How To Connect

IMPORTANT: Please Read The Follwing Electrical Safety Data Carefully

WARNING

Electrical Shock and/or Unit

Operation and Damage Hazard

Failure to follow this warning could result in

personal injury or death and/or unit damage.

●

Follow the National Electrical Code (NEC)

or local codes and ordinances.

For personal safety, this unit MUST BE

properly grounded.

Protective devices (fuses or circuit breakers)

acceptable for unit installations are specified

on the nameplate of each unit.

Do not use an extension cord with this unit.

Aluminum wiring in the building may present

special problems - consult a qualified

electrician.

When unit is in STOP position, there is

still voltage to the electrical controls.

Disconnect power to unit before servicing by:

1. Removing power cord (if it has one) from

wall receptacle.

2. Removing branch circuit fuses or turning

circuit breakers off at panel.

UNIT

CONNECT

JUNCTION BOX

JUNCTION BOX COVER

High

Med

Low

Fan

Cool

Heat

Fan Speed Mode

Temperature

Power

ACCESSORY

POWER SUPPLY

CORD

OR HARD WIRE

High

Med

Low

Fan

Cool

Heat

Fan Speed Mode

Temperature

Power

WIRE CLAMP

High

Med

Low

Fan

Cool

Heat

Fan Speed Mode

Temperature

Power

1. Connect accessory power supply cord or hard wire

connector to unit connector. See Figure E.4.2.

• Units must be installed using the appropriate

power supply kit. See Table E.2.2 (Power

Connection Chart). These connections must be

followed.

1. Remove front panel. See Figure C.5.2.3.

2. Remove junction box.

• Remove junction box cover by removing three

screws from front. Remove junction box by taking out

top, rear and side screws. See Figure E.4.1.

See Table E.2.2 for power cord accessory options and ratings.

1. Reinstall junction box and cover.

• Use wire clamp to attach power cord to basepan.

Secure with screws (included) See Figure 27.

• Replace junction box and cover with screws

removed from Step 2. Tighten securely.

2. Replace front panel. See Figure 24.

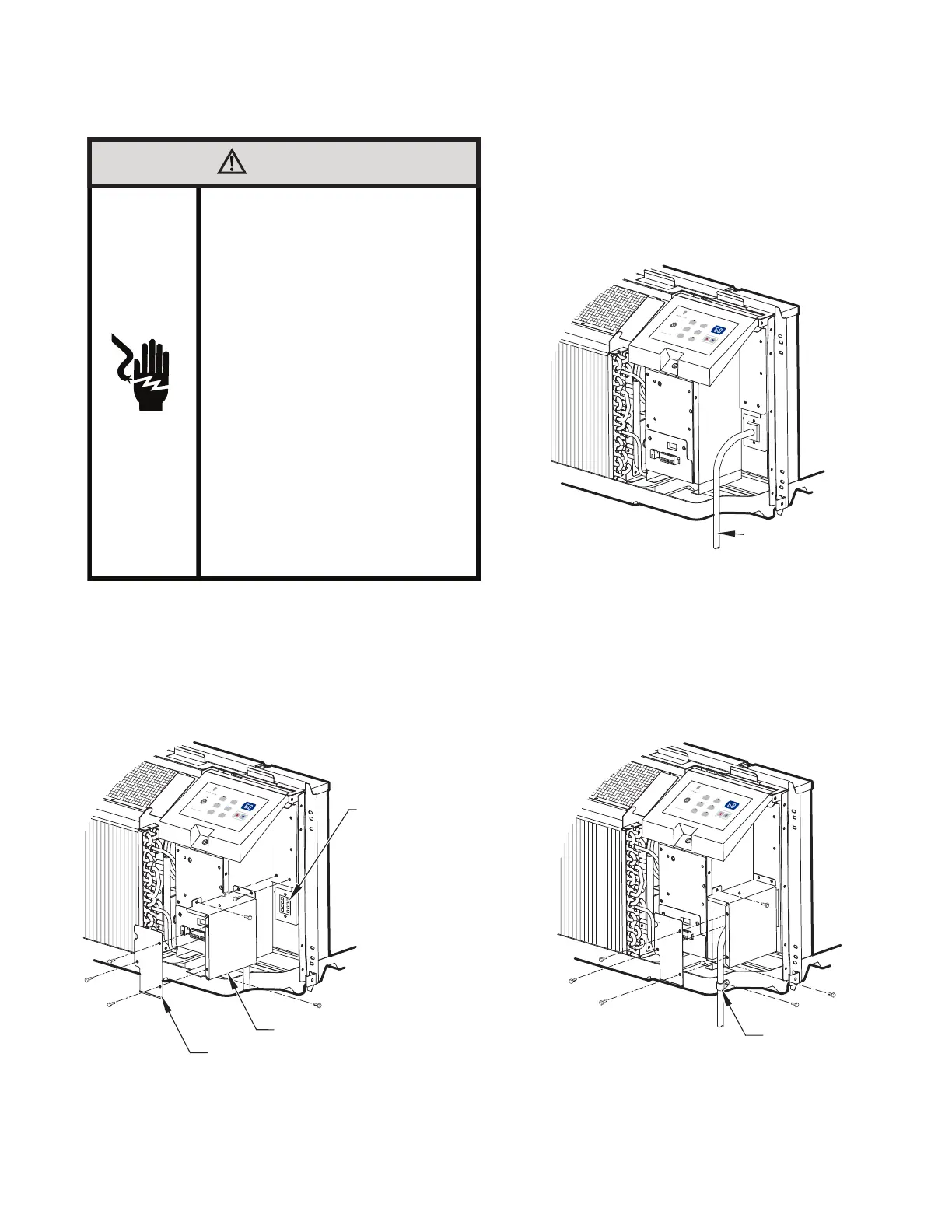

Figure E.4.1 (Junction Box)

Figure E.4.2 (Power Connection)

Figure E.4.3 (Wire Clamp)
