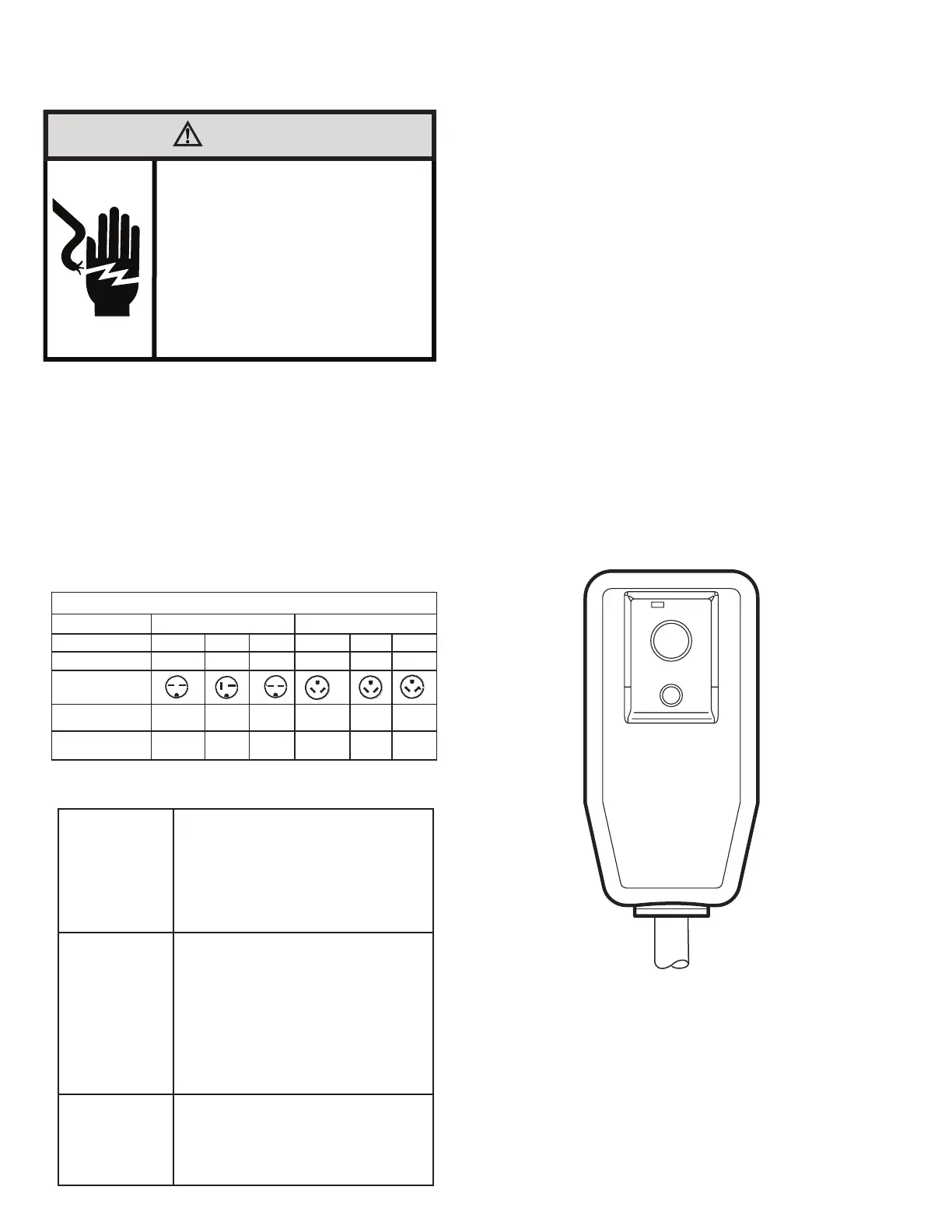

E.1 Electrical Safety Information

Make sure the wiring is adequate for your unit.

If you have fuses, they should be of the time delay type. Before

you install or relocate this unit, be sure that the amperage rating

of the circuit breaker or time delay fuse does not exceed the amp

rating listed in Figure E.1.1. Must be installed on a single circuit with

designated receptacle.

DO NOT use an extension cord.

The cord provided will carry the proper amount of electrical power

to the unit; an extension cord may not.

Make sure that the receptacle is compatible with the

air conditioner cord (Refer to Figure E.1.1)

E.2 Power Cord LCDI Test

All Friedrich 230/208V PTAC units are shipped from the factory with

a Leakage Current Detection Interrupter (LCDI) equipped power

cord. The LCDI device meets the UL and NEC requirements for cord

connected air conditioners.

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.

2. Press RESET.

3. Press TEST ( listen for click; Reset button trips and pops out).

4. Press and release RESET

a. Listen for click; Reset button latches and remains in.

b. Check that the green indicator light is on once reset.

c. The power supply cord is ready for operation.

NOTE: The LCDI device is not intended to be used as a switch.

Once plugged in the unit will operate normally without the need to

reset the LCDI device.

If the LCDI device fails to trip when tested or if the power supply cord

is damaged it must be replaced with a new supply cord obtained from

the product manufacturer, and must not be repaired.

E. ELECTRICAL

WARNING

Electrical Shock Hazard

Make sure your electrical receptacle has the

same configuration as your air conditioner’s

plug. If different, consult a Licensed Electrician.

Do not use plug adapters.

Do not use an extension cord.

Do not remove ground prong.

Always plug into a grounded 3 prong oulet.

Failure to follow these instructions can result in

death, fire, or electrical shock.

RESET

TEST

WARNING:

TEST BEFORE EACH USE.

TO TEST:

PRESS RESET BUTTON.

PLUG LCDI INTO POWER

RECEPTACLE.

PRESS TEST BUTTON, RESET

BUTTON SHOULD POP UP.

PRESS RESET BUTTON FOR USE.

DO NOT USE IF TEST IS FAILED.

GREEN LIGHT INDICATES

PROPER OPERATION

FUSE/CIRCUIT

BREAKER

Use ONLY type and size fuse or HACR cir-

cuit breaker indicated on unit’s rating plate.

Proper current protection to the unit is the

responsibility of the owner.

Specication of fuse on the main board:

T3.15AH250V(unit: 208/230V)

T3.15A 350VAC(unit: 265V)

GROUNDING

Unit MUST be grounded from branch circuit

through service cord to unit, or through sep-

arate ground wire provided on permanently

connected units. Be sure that branch circuit

or general purpose outlet is grounded. The

eld supplied outlet must match plug on

service cord and be within reach of service

cord. Refer to Table 1 for proper receptacle

and fuse type. Do NOT alter the service

cord or plug. Do NOT use an extension

cord.

RECEPTACLE

The eld supplied outlet must match plug on

service cord and be within reach of service

cord. Refer to Table 1 for proper receptacle

and fuse type. Do NOT alter the service

cord or plug. Do NOT use an extension

cord.

Figure E.1.1 (Receptacles and Fuses)

Figure E.2.1 (Test LCDI)

Table 1

Voltage

230V

Receptacles and Fuse Types

265V

Amps

15 20 30 15

1.5/2.5kw

Heater Size

3.5kw

5kw

1.5/2.5kw

3.5kw

5kw

NEMA#

Receptacles

Receptacle

6-15R 6-20R 6-30R 7-15R

7-20R

7-30R

NEMA#

Plug

6-15P 6-20P 6-30P 7-15P

7-20P

7-30P
