C. INSTALLATION OF THE UNIT

C.4.3 Wall Sleeve Installation Instructions (PDXWS)

NOTE: Insure that the unit is only installed in a wall structurally

adequate to support the unit including the sleeve, chassis and

accessories. If the sleeve projects more than 8” into the room, a

subbase or other means of support MUST be used. Please read

these instructions completely before attempting installation.

The following instructions apply ONLY to walls less than 13 ¼” in

depth.

NOTE: If the wall is thicker than 13 1/4” a deep wall sleeve or wall

sleeve extension MUST be used. The deep wall sleeve may be

special ordered through your Sales Representative.

1. The PXDR10 Drain Kit (optional for new construction) see page

10 if applicable, must be installed before the wall sleeve is installed

into the wall.

2. From inside the building, position the wall sleeve in the opening

and push it into the wall until it protrudes at least ¼” on the out-

side. Do not allow sleeve to be pulled. (See Figure C.4.2).

3. Position the wall sleeve with a slight tilt towards the outside to

facilitate condensate drainage. It should be level side-to-side and

the front should be ¼ bubble higher than the back.

MAX.

16-¼

42-¼

MIN.

LINTEL TO SUPPORT

MASONRY WALLS

ELECTRICAL

RECEPTACLE

ELECTRICAL

RECEPTACLE

WALL OPENING

WALL SLEEVE

INSULATION

SMOOTH SIDE OF SCREW

CLIP FACING INTO ROOM

NOTE: All 230/208V units are manufactured with a 67” power cord and all 265V units with a 27 1/2” power cord.

MAX.

13-¾

WARNING

Falling Object Hazard

Not following Installation Instructions for

mounting your air conditioner can result

in property damage, injury, or death.

NOTICE

DO NOT allow any pitch toward the inside.

Flashing on all 4 sides of the opening is recommended.

Potential property damage can occur if instructions are

not followed.

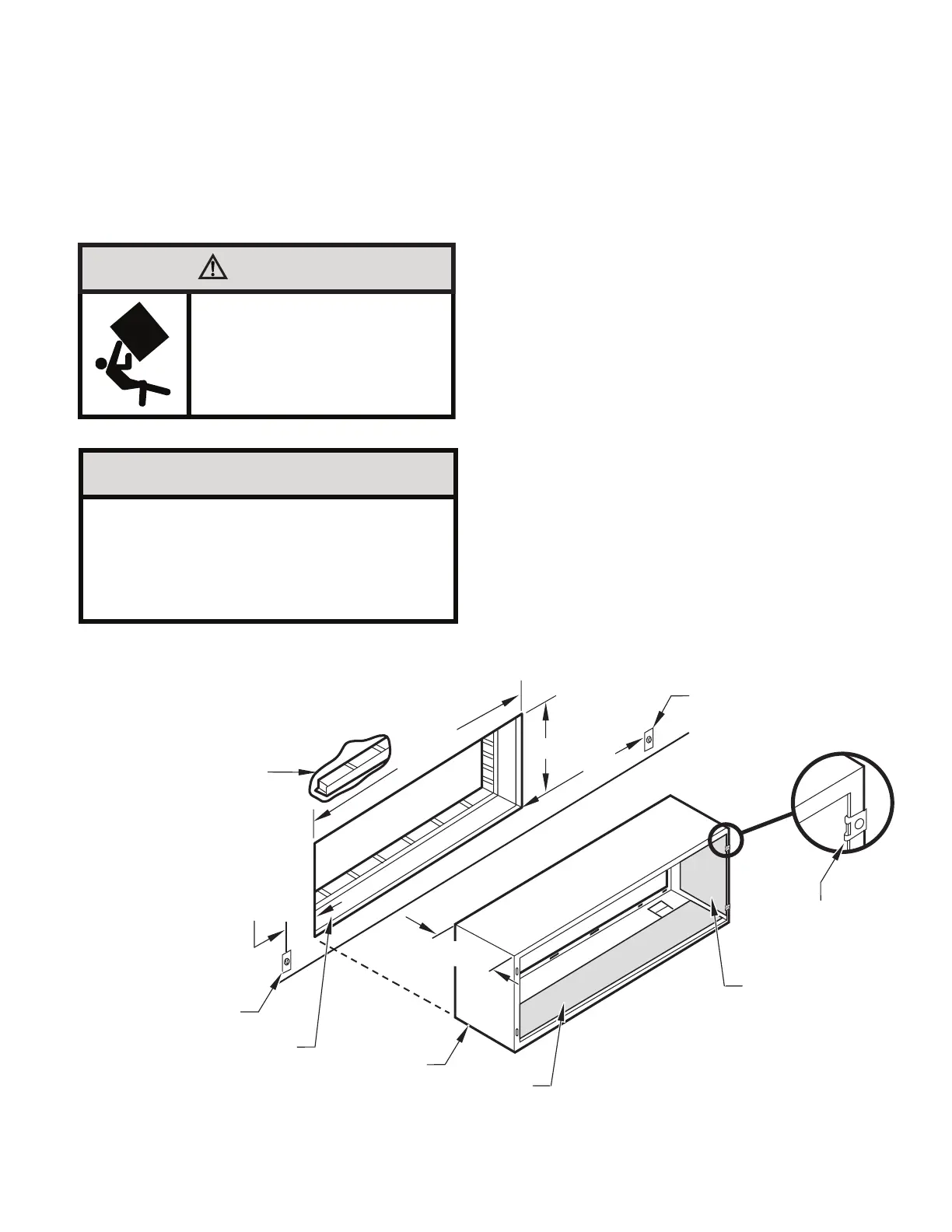

Figure C.4.3.1 (Typical Wall Sleeve Installation)
