ROUTINE MAINTENANCE

Cord Routing Change-Kuhl Q

Unplug unit.

Your Kühl Q unit will come with the power cord already installed and routed

to the left side of the unit.

For convenience and optimum appearance the direction of the power cord

can be changed from left to right by following the procedure below. Select

the exit location on the left or right based on proximity to the power outlet.

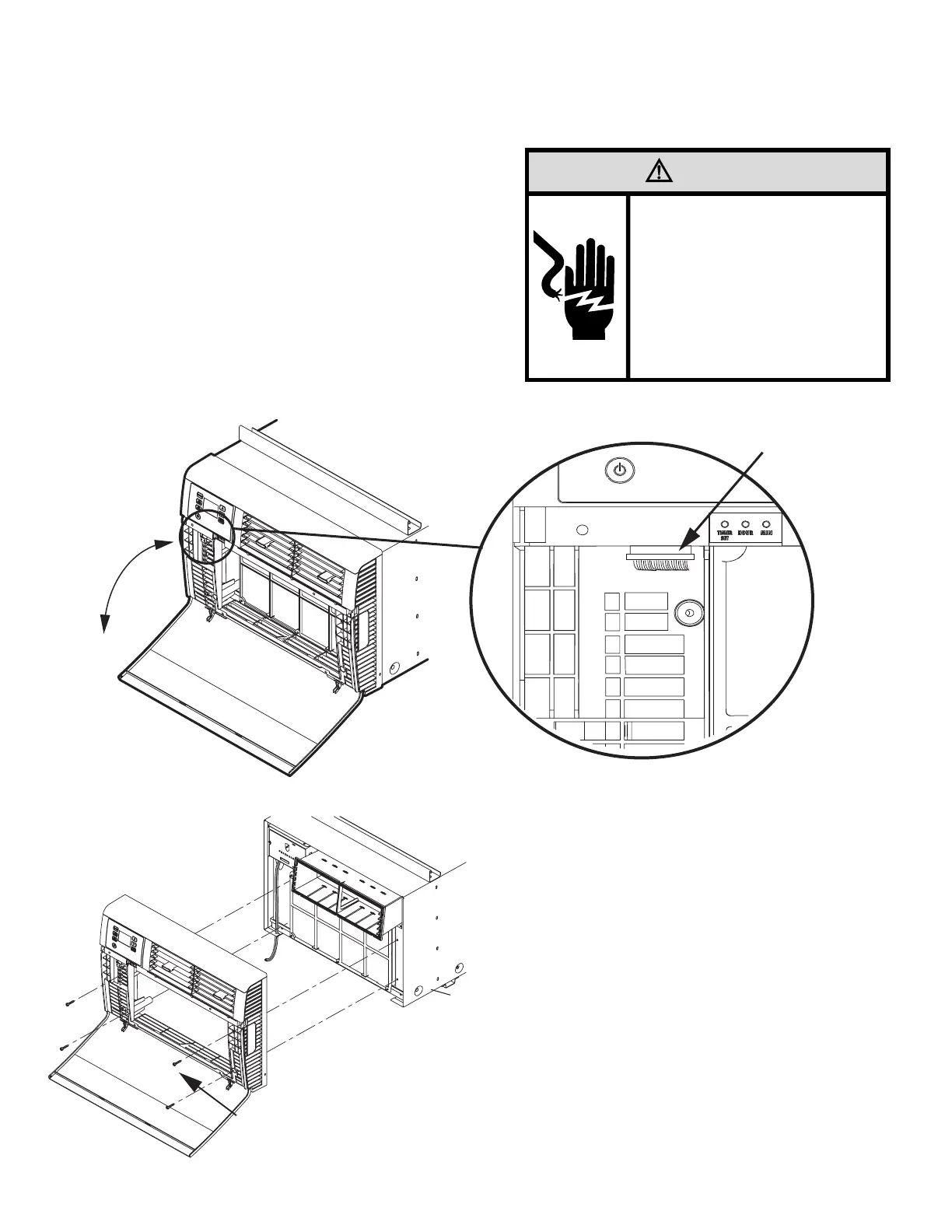

STEP 1.

Remove the decorative front cover.

A. Open the decorative front cover.

B. Locate and disconnect electronic control power cable harness.

C. Remove 4 screws attaching decorative front cover.

Save to reinstall later.

D. Remove decorative front cover. Store in a safe place to reinstall later.

WARNING

Electrical Shock Hazard

Make sure your electrical receptacle has the

same configuration as your air conditioner’s

plug. If different, consult a Licensed Electrician.

Do not use plug adapters.

Do not use an extension cord.

Do not remove ground prong.

Always plug into a grounded 3 prong outlet.

Failure to follow these instructions can result in

death, fire, or electrical shock.

Disconnect Plug

STEP 2. Route the cord along bottom inside of the unit (see Figures 412 and 413),

under the lower left mounting screw embossments and exit the cord

through right side cord opening (see Figure 413) of the decorative front

cover. Decorative front cover will keep cord in place.

STEP 3.

Reinstall the 4 screws removed earlier to secure decorative front cover

with cord exiting to the front bottom of the unit (4 screws retained from

Step 1).

Remove Screws

Step 1.A

Step 1.B

Step 1.C

Figure 410

Figure 411
