OPERATION

Unit Cooling Mode

Once the indoor ambient temperature rises past the cool demand threshold (Cool Set Point + 1.5 ˚F) (see gure below), and the

compressor is not locked out, the cooling cycle begins. As shown in the gure below, the fan is started 5 seconds prior to the

compressor. Once the indoor ambient temperature has been lowered to the cool set point (Cool Set Point minus .25 ˚F), the cooling

cycle starts to terminate by shutting off the compressor. After a 30 seconds delay, the fan is shut off. (See gure below for graphic

details)

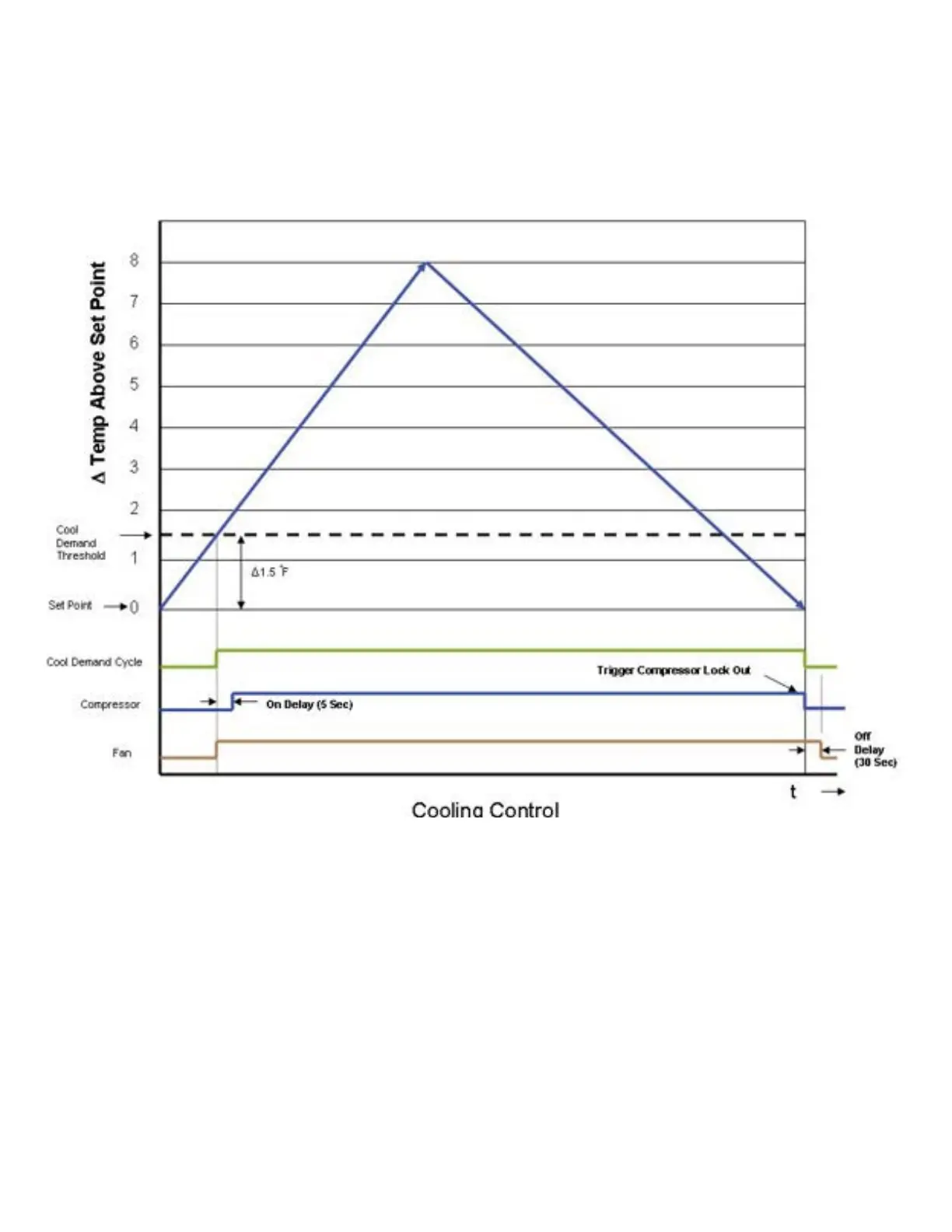

Figure 347 (Cooling Control )

Unit Heating Mode Control Operation

There are two heating methods: Heat Pump and Electric Resistance Heat.

There are 2 types of units that provide heating:

Heat Pump with Electric Heat (

KHVS10B11A , KHVS12B33A, KHVM24B34A, KHVL28B35A ,

KHVQ10B11A

WHVT12B33A, WHVT14B33A

)

Cool with Electric Heat
