Remote Control - Refer to Figure 344 during operation description.

Getting Started - Install two (2) AAA batteries in the battery compartment located on the back

of the unit.

Operation - The remote control should be within 25 feet of the air conditioner for operation (refer

to Figure 345 for effectiveness). Press the power button to turn the remote on. The remote

will automatically power off after 15 seconds if the buttons are not being pressed. The remote

must be on to control the unit.

POWER Button - Turns remote and unit on and off.

MODE Button - Allows the user to sequentially select the following: AUTO, COOL, HEAT, and

FAN ONLY operations. When the button is pressed, the display indicates which mode has

been selected via a display message. Note that when the heating function is not available, the

system will automatically skip the HEAT mode.

FAN Button - Selects between automatic (AUTO FAN) or CONTINUOUS operation. In the AUTO

FAN mode, the fan only turns on and off when the compressor operates or the heat function

is enabled.

NOTE: AUTO FAN is not available in the FAN ONLY Mode, the display indicates CONTINUOUS.

In the CONTINUOUS mode, fan speed is determined by your selection on the FAN SPEED

button.

SPEED Button - Used to sequentially select new fan speed, plus AUTO operation. When the

FAN SPEED button is pressed, the fan speed icon (triangle) changes to indicate the new speed

level. Fan speed automatically varies depending on the set temperature on the control panel

and the actual room temperature. For example, if there is a big difference between your set

temperature and the actual room temperature, the system fan speed increases to HIGH. It

remains at this speed until the room temperature matches the set temperature.

UP and DOWN Arrows - Pressing either the UP or DOWN button changes the desired room

temperature. The factory preset lower and upper limits are 60 °F (16 °C) and 99 °F (37 °C).

These buttons are also used to navigate between function options when using the User

Menu or Maintenance Mode.

NOTE: Some units may have been provided with an alternate remote control, which contains

an LCD Basic functions are the same.

30°

45°

60°

30°

45°

60°

25ft

8ft

4ft

25ft

16ft

6ft

30°

45°

60°

45°

60°

25ft

8ft

25ft

7.5ft

TOP VIEW

OPERATION

Remote Control

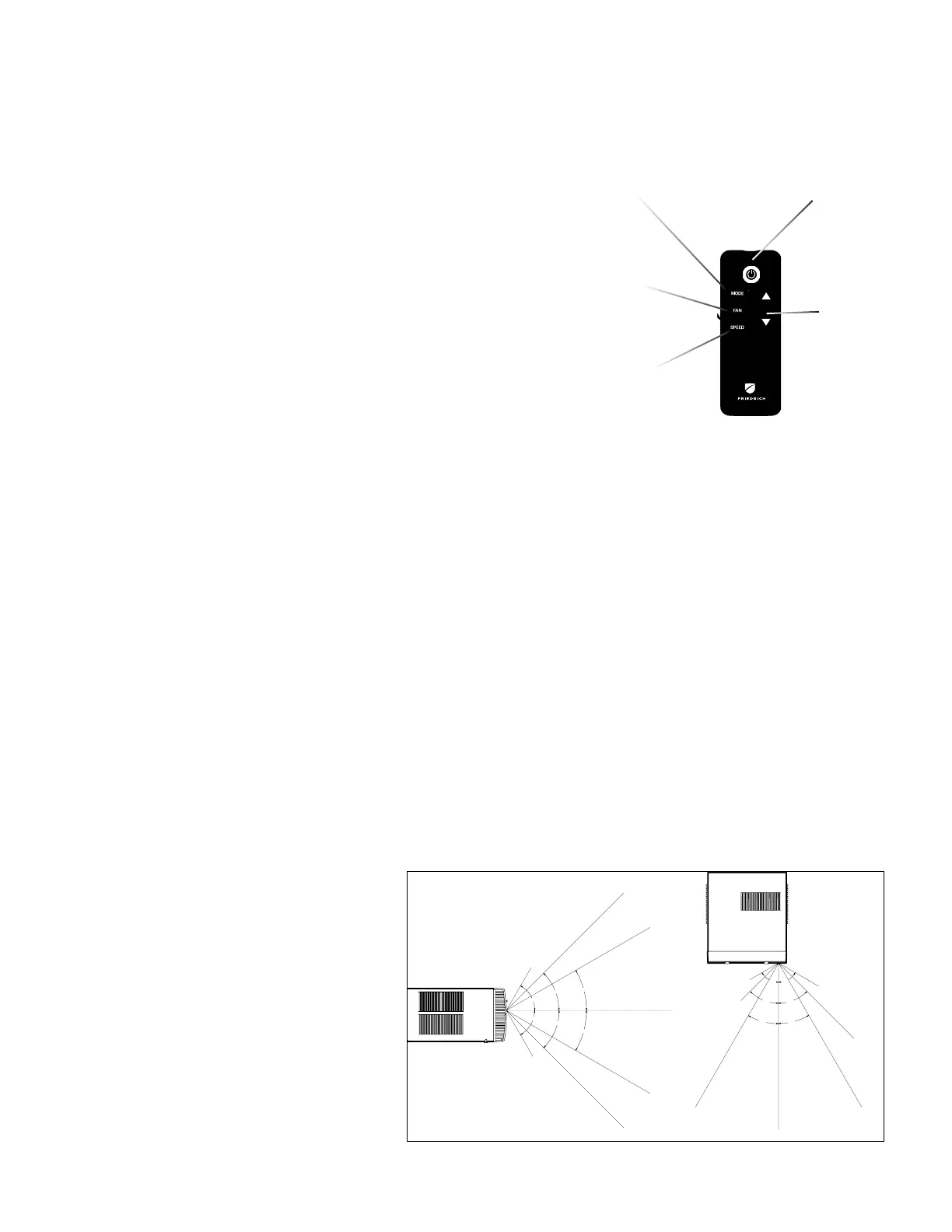

Figure 345 (Remote Control Effectiveness)

POWER

MODE

UP and

DOWN

ARROWS

FAN

SPEED

SIDE VIEW

FIgure 344 (Remote Control)

Remote Effectiveness

Handheld Remote - Has an operating range of up to 25 ft.

The infrared remote control signal must have a clear path

to transmit the command to the air conditioning unit. The

remote signal has some ability to “bounce” off of walls and

furniture similar to a television remote control. The diagram

below shows the typical operating range of the control in a

standard room with 8 ft high ceilings.
