OPERATION

User Interface-Kuhl

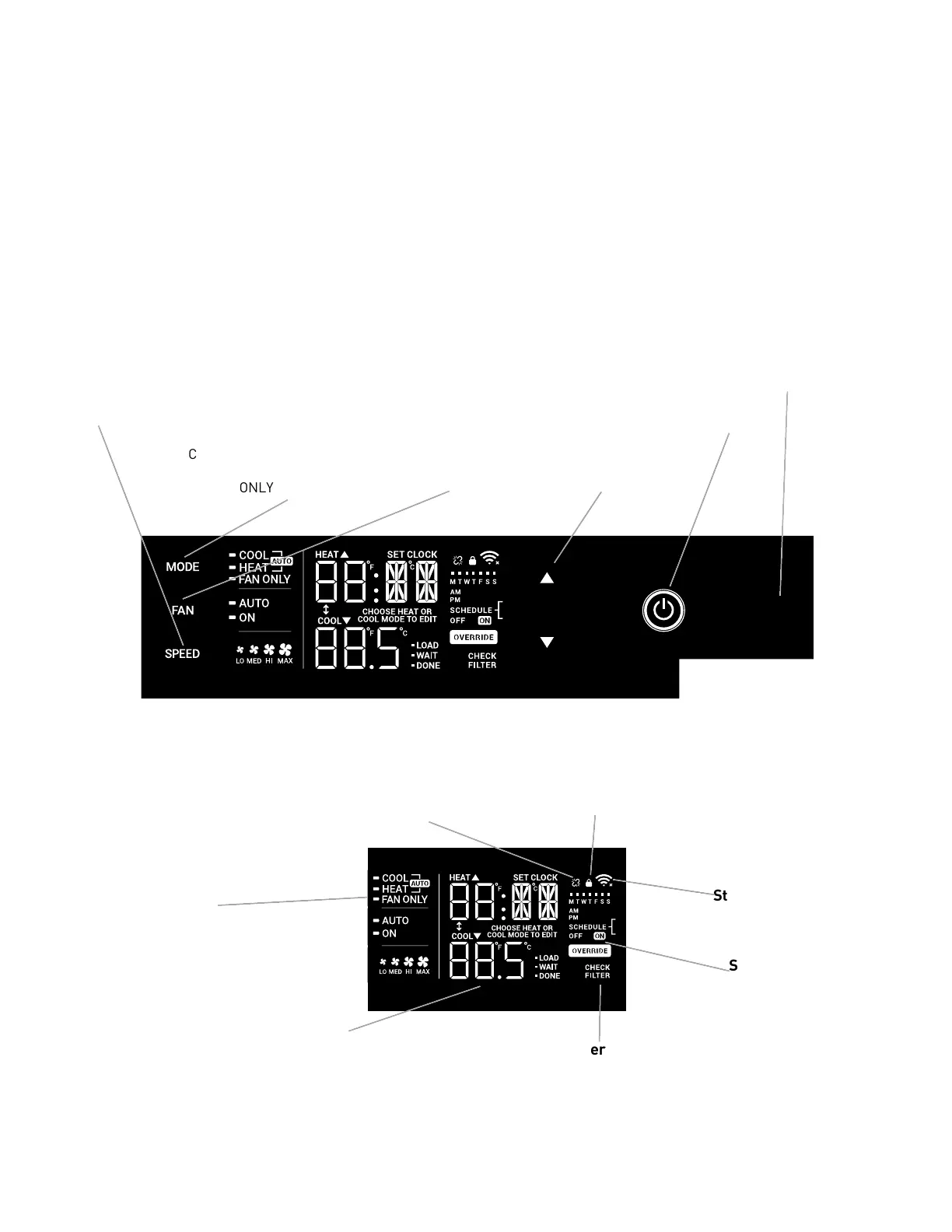

All of the control panel function buttons and mode icons can be viewed in Figures 302 and 303.

Power On – Press the button to turn on the air conditioner. The power button illuminates to indicate that the power is on. The backlight on the power

switch will automatically turn off after 20 seconds of inactivity. The remote control can also be used to turn power ON / OFF (see Remote Control).

Display – The display is a high efciency LCD with a built-in backlight. After 20 seconds of inactivity, the display switches off. Touching any button

automatically changes the display to full brightness.

There are three control push buttons on each side of the display.

MODE

Cycles between AUTO,

HEAT, COOL, or FAN

ONLY

CONTROL PANEL

TEMPERATURE

INCREMENT UP

AND DOWN

ON / OFF

Turns unit on / off

IR WINDOW

Do not block

FAN

Sets fan to either:

-automatically cycle

-continuously run

SPEED

Sets fan speed

LOW, MED, HIGH, OR MAX

(Actual settings are model

dependent)

DISPLAY

Figure 304

Figure 303

Unit

Mode

Display

Disconnected From

Power Board

Control

Locked

Wi-Fi Operating

State

2 Digit Display

Shows Settings for:

-Set Point

(Temperature)

-Clock (AM/PM)

Filter

Check /

Clean

Timer/

Schedule

Shows

On / Off
