42 43

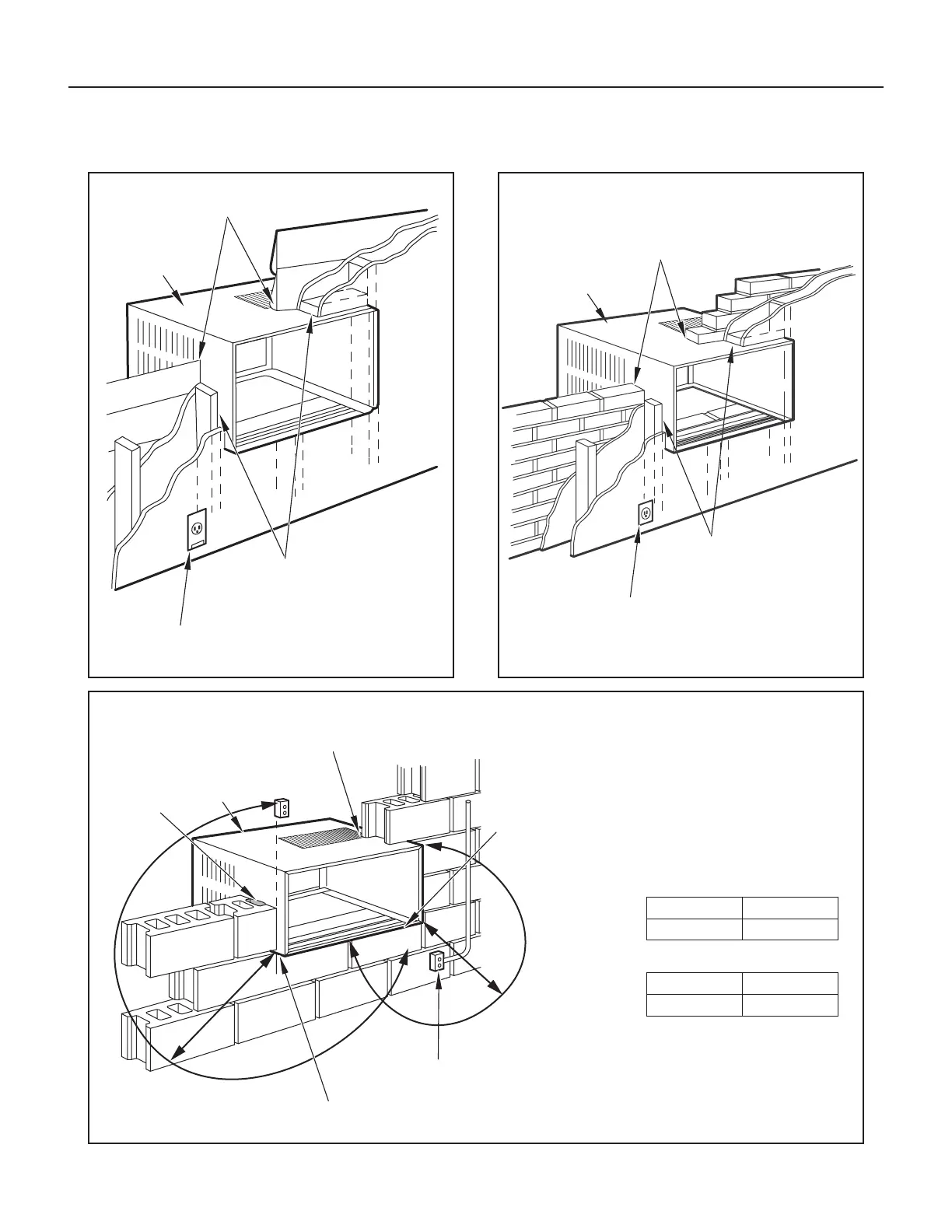

Figure 80
FRR028
CABINET
CAULK ALL SIDES
INSIDE AND OUTSIDE
SHIM TO FILL IN VOID AT THE
TOP AND SIDE WITH WOOD
AS REQUIRED.
ELECTRICAL RECEPTACLE
(SEE FIG. 81 FOR LOCATION NOTE)
Figure 81
FRR029
A
CABINET
CAULK ALL SIDES
INSIDE AND OUTSIDE
SHIM TO FILL IN VOID AT THE
TOP AND SIDE WITH WOOD
AS REQUIRED.
ELECTRICAL RECEPTACLE
Figure 82
FRR030
POINT “Y”
CABINET
CAULK ALL SIDES
INSIDE AND OUTSIDE
ELECTRICAL
RECEPTACLE
MORTAR
POINT “X”
From Point “X” Small/ Medium Large
115V 69" N/A
230V 45" 45"
From Point “Y” Small/ Medium Large
115V 45" N/A
230V 21" 20"
Thru-the-Wall Installation continued
