Je bekijkt pagina 34 van 156

34 35

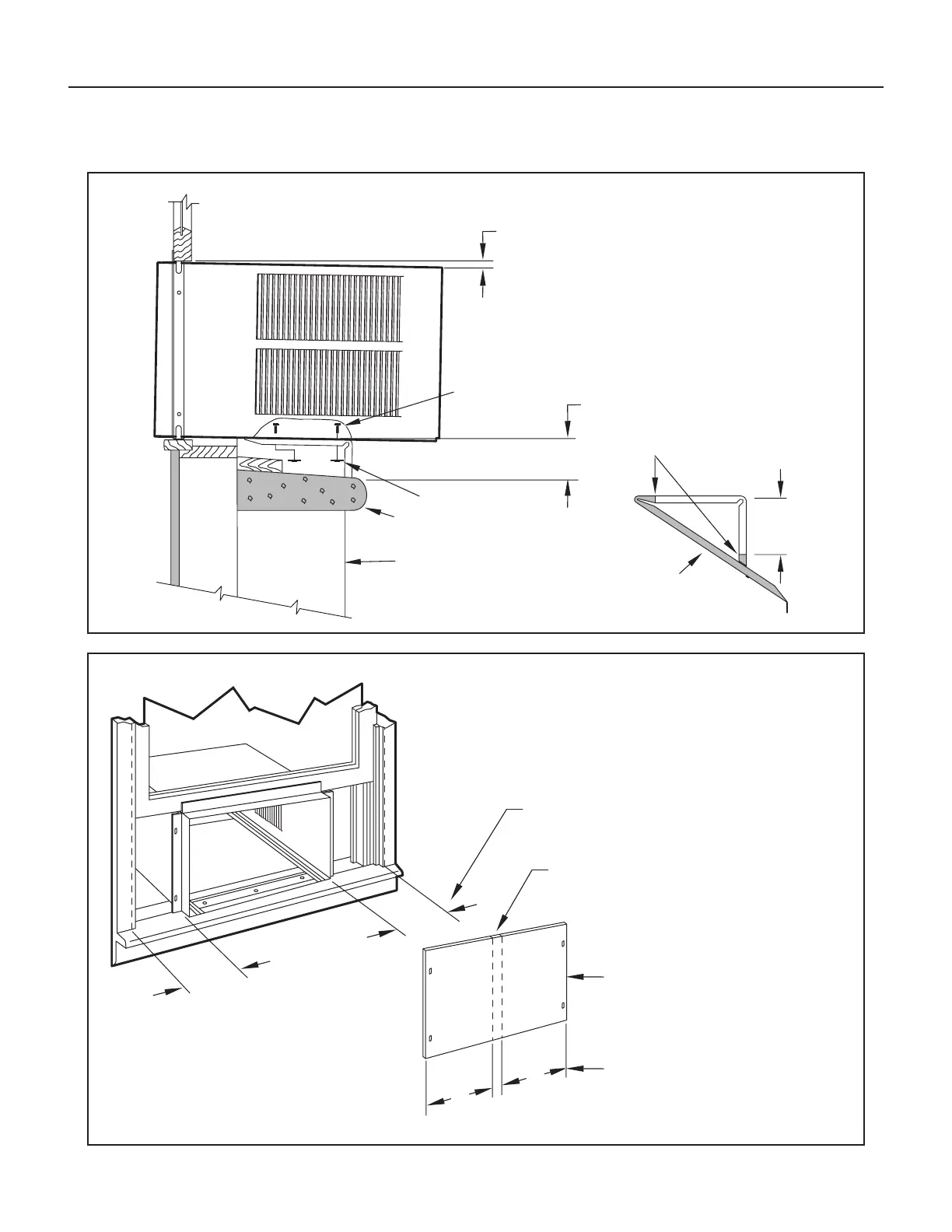

Figure 63

FRR019

Figure 64

FRR020

Standard Window Installation continued

ALTERNATE METHOD B

#10-24 FLAT WELD NUT

3

/8″ SLOPE DOWN

OUTSIDE WALL

#10-24 SCREW

CUT TO FIT DIMENSION “A”

AND BEND DOWN TO FORM

A VERTICAL LEG.

DIMENSION “A”

STONE LEDGE

CUT HERE

DISCARD

SHADED AREA

A

SUBTRACT

1

/8″ FROM DIMENSION “B” AND

MEASURE FROM THE EDGE OF WINGBOARD

(ITEM 8), MARK, SCORE AND CUT WITH

APPROPRIATE CUTTING TOOL.

MEASURE DISTANCE “B” TO INSIDE

OF THE CHANNEL ON EACH SIDE.

CUT HERE AND DISCARD

CENTER WASTE MATERIAL

WINGBOARD

B

B

B

B
