16

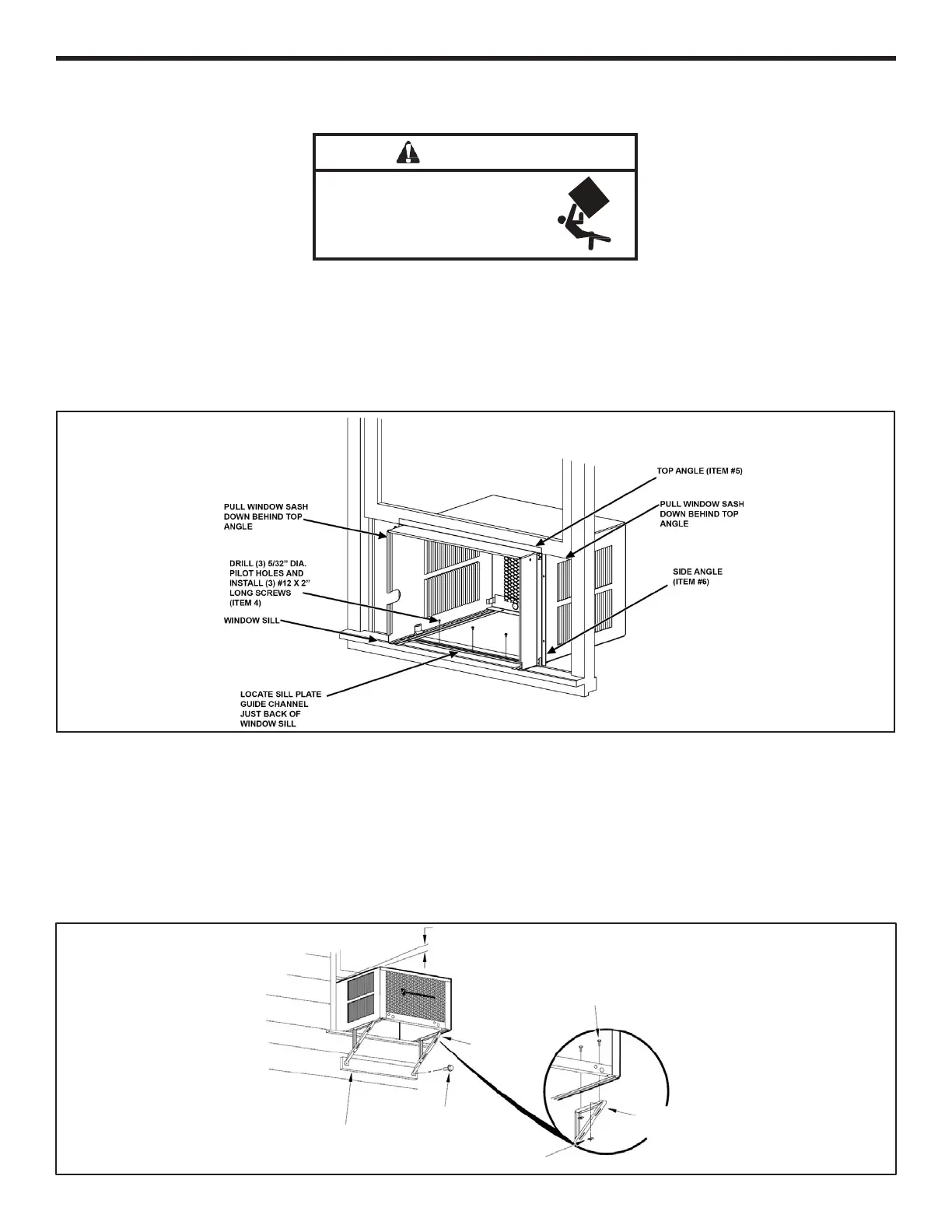

Shell Installation: Sash Window Installations

WARNING

Falling Object Hazard

Not following Installation Instructions

for mounting your air conditioner can

result in property damage, injury, or

death.

STEP 1 Check the window sill and frame to be sure they are in good condition and rmly anchored to the wall. Repair if necessary.

STEP 2 CABINET MOUNTING: Raise the lower window sash 1/4” more than the height of the cabinet. Carefully slide the cabinet through

the open window until the sill plate channel rests behind the window sill and the top support angle (Item #5) rests against the

window (See Figure 17). Center the cabinet side to side and drill three (3) 5/32” diameter pilot holes into the window sill using

the holes in the cabinet sill plate as a guide. Install three (3) #12A x 2” long screws (Item #4) (See Figure 17).

Figure 17

STEP 3 OUTSIDE SUPPORT MOUNTING: Assemble the support brackets (Item #1) to the bottom rails of the cabinet with four (4) 10-24

1” long screws (Item #2) and four (4) 10–24 at nuts (Item #3). Adjust the support brackets to bring the bottom pads in contact

with the wall surface. (See Figure 18.)

A 1” x 4” or 2” x 4” SPACER SHOULD BE USED BETWEEN THE WALL AND THE SUPPORT BRACKETS WHEN

INSTALLED ON ALUMINUM OR VINYL SIDING). Drill 5/32” (4 mm) diameter pilot holes, and secure the brackets to the wall

with two (2) #12A x 2” long screws (Item #4). Adjust the support brackets to provide an approximate 3/8” (10 mm) down slope

towards the outside for drainage. Tighten all screws. (See Figure 18).

Figure 18

3/8" (10 MM) DOWN SLOPE

10 - 24 X 1" HEX HEAD

SCREW (ITEM #2)

SUPPORT BRACKET

(ITEM 1)

A 1" X 4" OR 2" X 4" SPACER SHOULD BE USED BE-

TWEEN THE WALL AND BRACKET WHEN INSTALLED ON

ALUMINUM, ASBESTOS OR VINYLSIDING.

#12A X 2" SCREW

(ITEM#4)

SUPPORT BRACKET

(ITEM 1)

10 - 24 FLAT WELD

NUT (ITEM #3)
