12

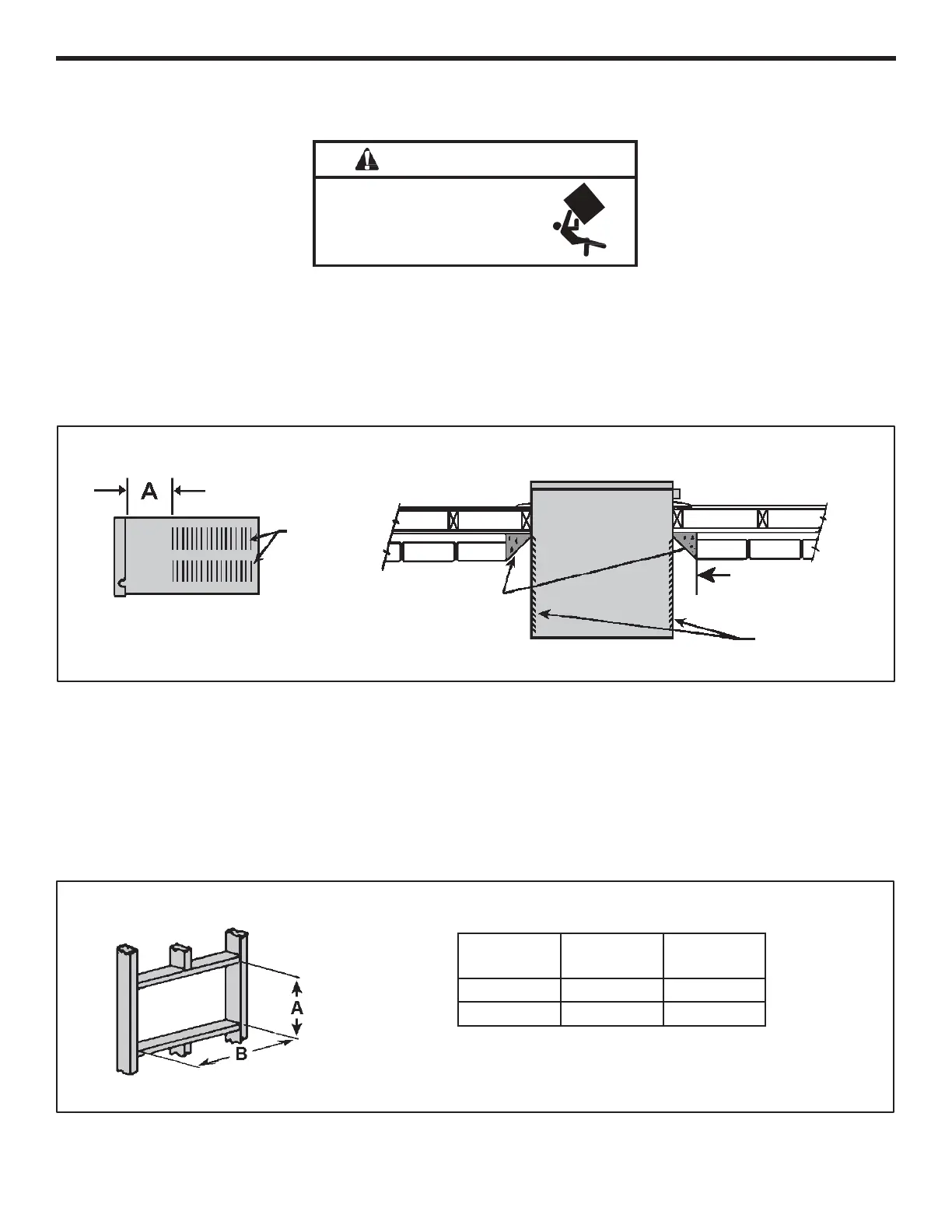

Shell Installation: Through-the-wall Installations (as unit is shipped)

WARNING

Falling Object Hazard

Not following Installation Instructions

for mounting your air conditioner can

result in property damage, injury, or

death.

Wall Preparation

The maximum wall thickness permissible without special construction is determined by the model size to be installed. THE OUT- SIDE

CABINET CONDENSER AIR INTAKE LOUVERS MUST NOT BE BLOCKED BY EXTENDING INSIDE THE WALL

AREA. Observe the maximum wall thickness shown as dimension “A”in (Figure 10).

Special Instructions For Extra Thick Walls

For installation in walls exceeding the maximum thickness shown as dimension A, the following suggested construction may apply.

(See Figure 10).

Figure 10

EXTRA THICKWALL CONSTRUCTION

3.25" (82.55 MM)

MAXIMUM

WALL THICKNESS

CONDENSER

AIR INTAKE

LOUVERS

Top View

TOP VIEW SHOWING BEVELEDSIDES

FOR AIR

INTAKE a 45 deg angle

should

be maintained.

WALL BELOW

UNIT MUST ALSO BE BEVELED TO

ASSURE PROPER TILT ANGLE.

No louver should be

blocked. Maintain a

45 deg angle until

you clear the wall

CONDENSER AIR

INTAKE LOUVERS

STEP 1 CHECKING WIRING AND PLUMBING: Check all wiring and plumbing inside and outside the wall to be sure none will be broken

where the hole is to be cut.

STEP 2 HOLE CONSTRUCTION: Depending on the size of the unit to be installed, layout the hole dimensions in accordance with the

chart below (See Figure 11). Cut and frame in the hole to the nished dimensions. Use 2” x 4” material for framing and follow

the suggested typical installations in (Figure 12, 13 or 14 on Page 13.

NOTE: IF THE WALL CONSTRUCTION IS TYPICAL FRAME OR 2 X 4 STUDDING WITH BRICK OR STONE VENEERS, LOCATE THE HOLE

NEXT TO ONE OF THE STUDS. FOR MASONRY, CONCRETE OR CINDER BLOCK WALLS, LOCATE THE HOLE FOR CONVENIENCE.

Figure 11

HOLE SIZE REQUIREMENTS

NOTE: THESE DIMENSIONS ARE FOR FINISHED HOLE SIZE

FINISHED

DIMENSION

SH15

CHASSIS

SH20, SH24

CHASSIS

A 16-3/16” 18-3/16”

B 26-3/16” 26-3/16”
