EN
5

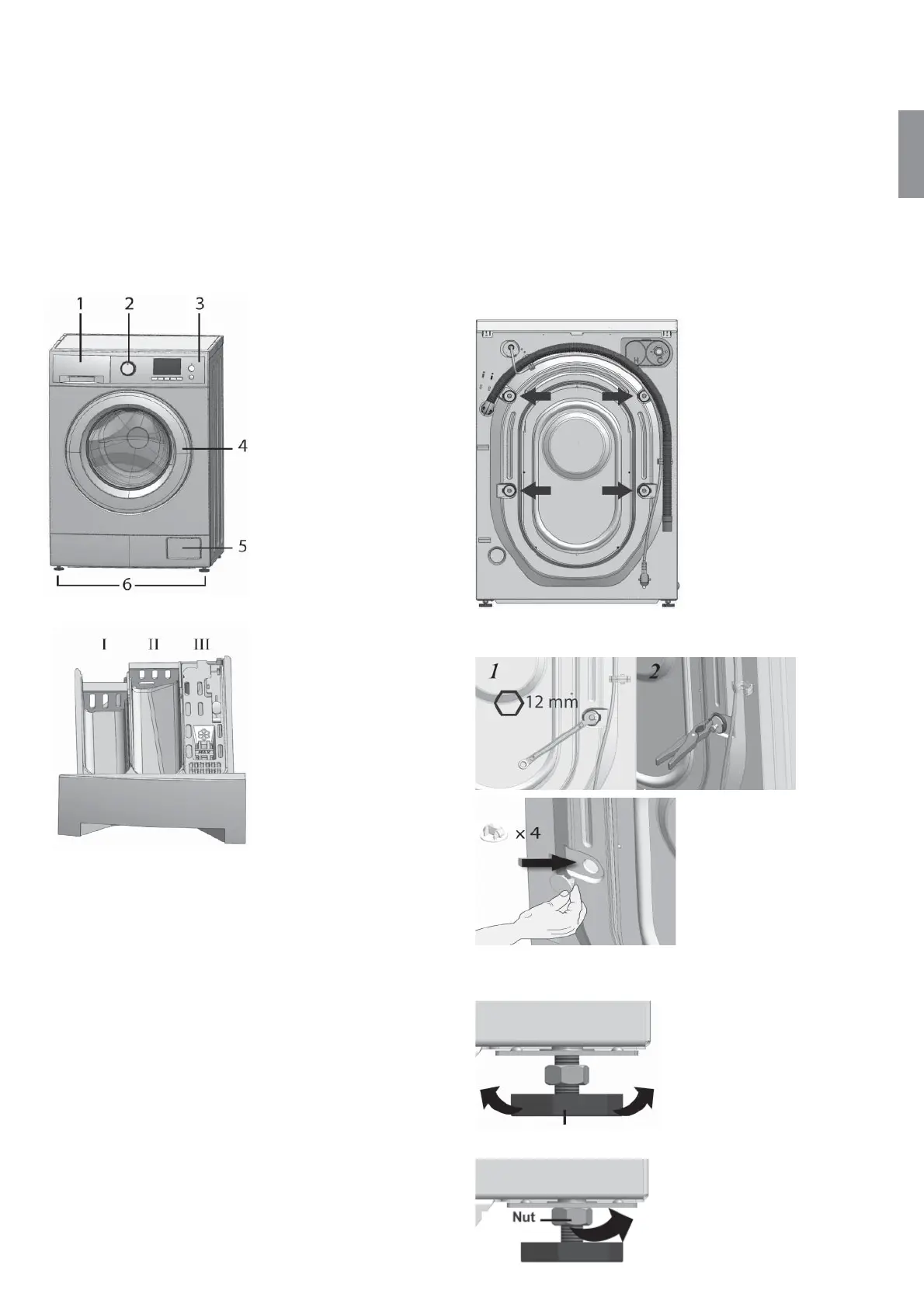

DESCRIPTION OF MACHINE
DESCRIPTION OF MACHINE INSTALLATION
This appliance meets all modern requirements for e ective treatment of laundry
with reduced consumption of water, electricity and detergent. Its innovative system
permits full use of detergent and reduces water consumption, resulting in energy
savings.
This machine complies with EU directives:
• 2009/125/EC (ErP) Relating to product energy e ciency;
• 2014/35/EC (low tension) (ex 2006/95/EC and subsequent modi cations;
• 2004/30/EU (electromagnetic compatibility ex 2004/108/EC) and
subsequent modi cations;
• 2011/65/EU & 2015/865 (Disposal of electronic and electrical waste ex
2002/95/EC), RoHS II.
1 - DETERGENT DRAWER
2 - PROGRAMME SELECTION KNOB
3 - CONTROL PANEL
4 - DOOR HANDLE
5 - PUMP FILTER
6 - ADJUSTABLE FEET
• DETERGENT DRAWER
I Detergent compartment used with
pre-washing or soaking function.
The detergent to be used for the
prewash and the soak is loaded at the
beginning of the washing program.
II Compartment for powder or liquid
detergent used for main wash. If use
liquid detergent is used, pour just
before starting the programme.
III Compartment for liquid additives
(fabric softener, starching). Follow
the manufacturer’s recommendations
regarding the amount of use and
do not exceed the “MAX” mark on
the detergent drawer. The softeners,
starch or additives must be poured
into the compartment before the start
of the wash programme.
The washing machine can be installed in any place on condition that:
• it is protected from the bad weather;
• the ambient temperature is not lower than 3° C;
• the cables and hoses at the back of the machine are not crushed;
• the power cord is accessible in case of any maintenance.
N.B. Should it prove necessary for electrical and/or hydraulic maintenance
contact only a quali ed technician.
REMOVAL OF TRANSPORTATION LOCKING SCREWS
N.B. Failure to remove the xing screws will generate strong vibrations and abnormal
movement of the machine during the washing with consequent damages.
The washing unit is locked in place
by four xing screws (which protect it
during transport) as show in gure 1.
Before operating the machine the
screws must be removed. To unscrew
them use a spanner.
Once unscrewed the screws pull out the locking screws including a bushing and
spacer as shown in Figure 2.
N.B. In case the spacers fall into the
machine it will be necessary to open
the rear panel, retrieve them and
reposition the panel.
Close up the holes with the supplied
caps as shown in Figure 2b.
POSITIONING OF WASHING
To ensure stability to washing machine and
avoid strong vibrations during washing
and spinning, it is necessary that the
appliance be placed on a smooth, hard, dry
surface and not raised above oor level.
To compensate for any unevenness in the
oor it is possible to act on the height of
the feet, by screwing or unscrewing them
according to requirements.
As shown in the next gure.
After adjustment, to avoid their
modi cation by vibrations, they should
tighten by the nut on the foot until it locks
as shown in the gure below.
It is good to avoid, in any case, placing
under or around to the machine cardboard,
wood or similar materials, so as not to
obstruct the passage of air.
Adjustable foot
