H
F
G
E
F
E
D
A
D
I

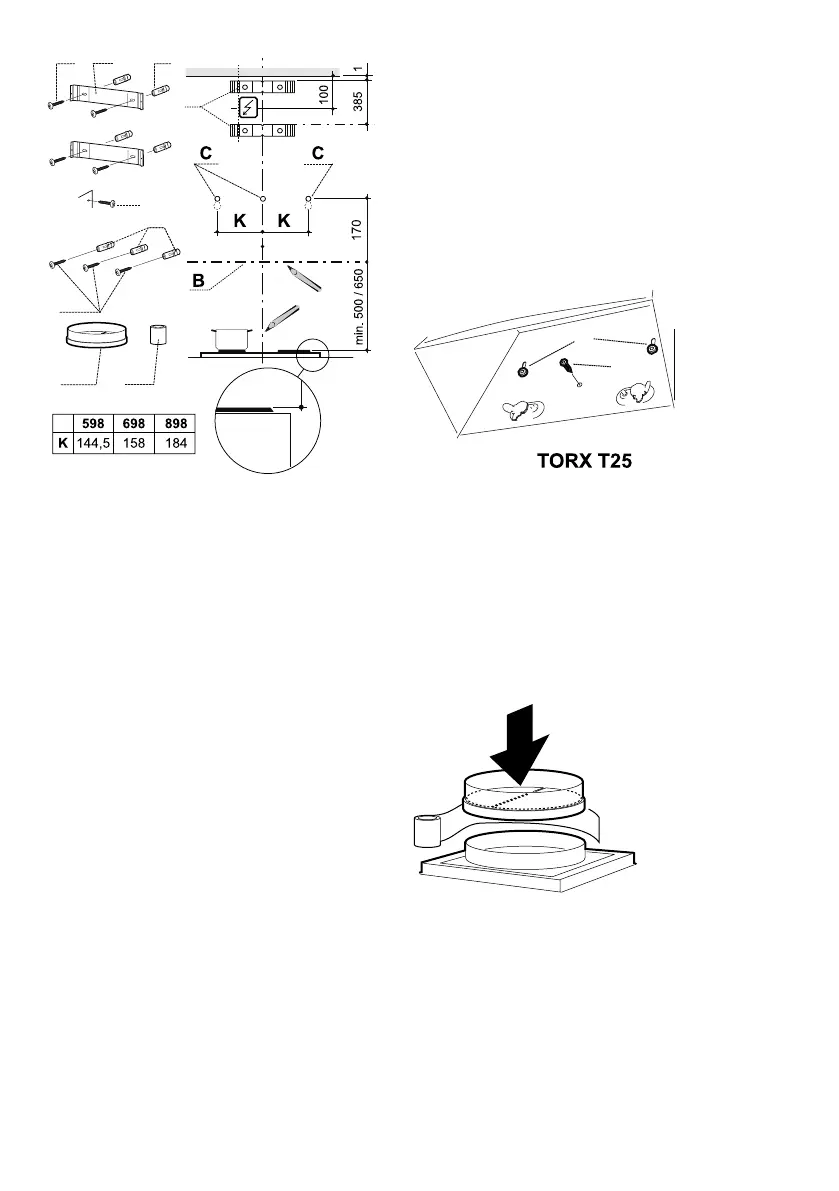

Fig. 2
Installation of wall mounts, marking
the wall
Attention!
For total height, the distance between
the bottom of the cooker hood and the
top of the chimney, see measurements
Fig. 1. When installing with an extended
upper chimney section or if the cooker
hood will be fitted with a carbon filter
kit, refer to the separate instructions
and measurements.
Mark a centre line A above the stove where
the cooker hood is to be installed.
Draw a horizontal reference line B, above
the stove, Fig. 2.
Place the upper bracket D for the chimney
on the wall, as shown in Fig. 2.
Mark the bracket's screw holes on the wall.
Place the lower bracket D for the chimney
on the wall, as shown in Fig. 2, below the
upper bracket, and mark where the screw
holes should go on the wall.
Mark the screw holes for the mounting of
the cooker hood, C, on the wall, as shown
in Fig. 2.
Drill Ø 3,5 mm holes in the centre of all the
marked points.
Fasten the consoles to the chimney using
the screws F.
If the supplied plugs are to be used, drill Ø
5,5 mm holes. Drill the hole Ø 5 mm deeper
than the length of the plug. Place wall plugs
E in the holes. Check that the screws and
plugs used are intended for the wall materi-
al (red plastic plug is for attachment in con-
crete, brick and natural stone).
Assembly
F
F
Fig. 3
Remove grease filter and motor unit, see
Fig. 8 and Fig. 9.
Prior to mounting, screw two screws F into
the pre-drilled holes, Fig. 3.
Hang the cooker hood and adjust it
horizontally
Secure it in place with a screw F.
Reinstall the motor unit and grease filter.
Fig. 4
Tape the downdraught damper I into posi-
tion using tape I, Fig. 4.
If the connection is Ø 125 mm, a reducing
coupling sleeve must be used. Secure the
reducer to the downdraught damper with
tape I.
12
991.0357.895/D000000006701/180170/2021-09-30
