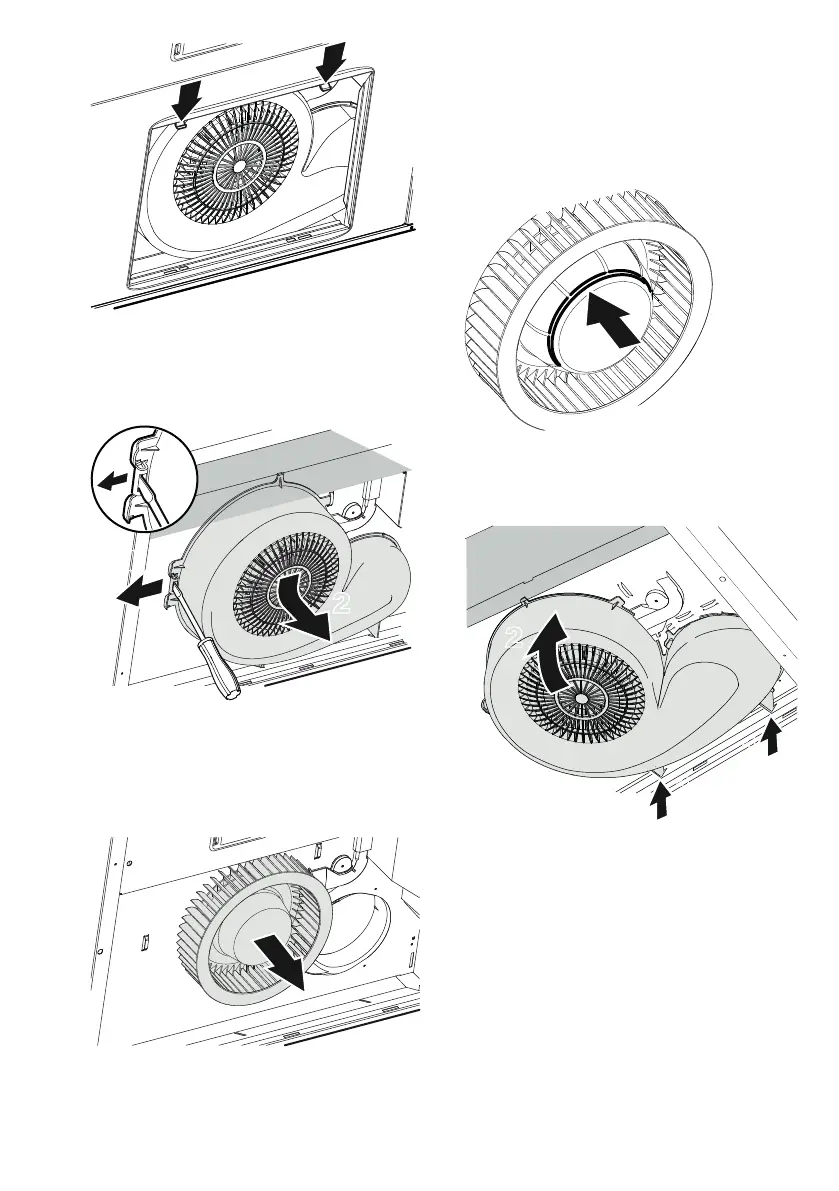

Fig. 3
Remove the bottom plate by pushing the
snap retainers in the direction of the ar-
rows.Fig. 3
1
2
Fig. 4
Release the blower by bending the snap re-
tainer outwards in the direction of the ar-
row (1) and pushing the blower away from
you and down (2),Fig. 4.
Fig. 5
Release the impeller by pulling in the direc-
tion of the arrow, Fig. 5
Clean the bottom plate, blower and impeller
using warm water and washing-up liquid.
The blower and impeller can also be wash-
ed in a dishwasher. After washing and dry-
ing, assemble the parts in reverse order.
Fig. 6
Refit the impeller. Make sure that it is level
in the groove on the motor.
1
1
2
1
Fig. 7
Refit the blower by inserting the supports in
the rear of the hood (1). Bend up the blower
(2).Fig. 7
991.0623.586/D000000006424/180004/2023-01-20 11
