LPG conversion
Step 1: Lift off the burner caps and burner heads from the cooktop burner manifold cups.
Save these orifices and note their positions for future conversions back to natural gas.
■ 2. Follow the instructions below to change the burner orifices
from Natural Gas to LP
ORIFICE SIZE(mm)
Rapid burner:
Φ0.92
Semi-rapid burner: Φ0.65
Auxiliary burner:
Φ0.55
Step 2: Using a 9/32" or 7mm nut drive, remove the burner orifice from the bottom of the
Wok/Rapid/Semi-rapid burner manifold cup. And replace with the LP burner nozzles, then screw up
clockwise.
Burner cup
Burner head
Burner cap
WARNING
Do not operate the cooktop burners when using LP gas before converting the pressure regula-
tor and burner orifices for LP gas use. Failure to do so could cause high flames and toxic
fumes which can result in serious injury.
This conversion must be performed by a qualified installer or gas supplier in accordance with
the manufacturer’s instructions and all codes and requirements of the authority having jurisdic-
tion. Failure to follow ALL instructions could result in serious injury or property damage.

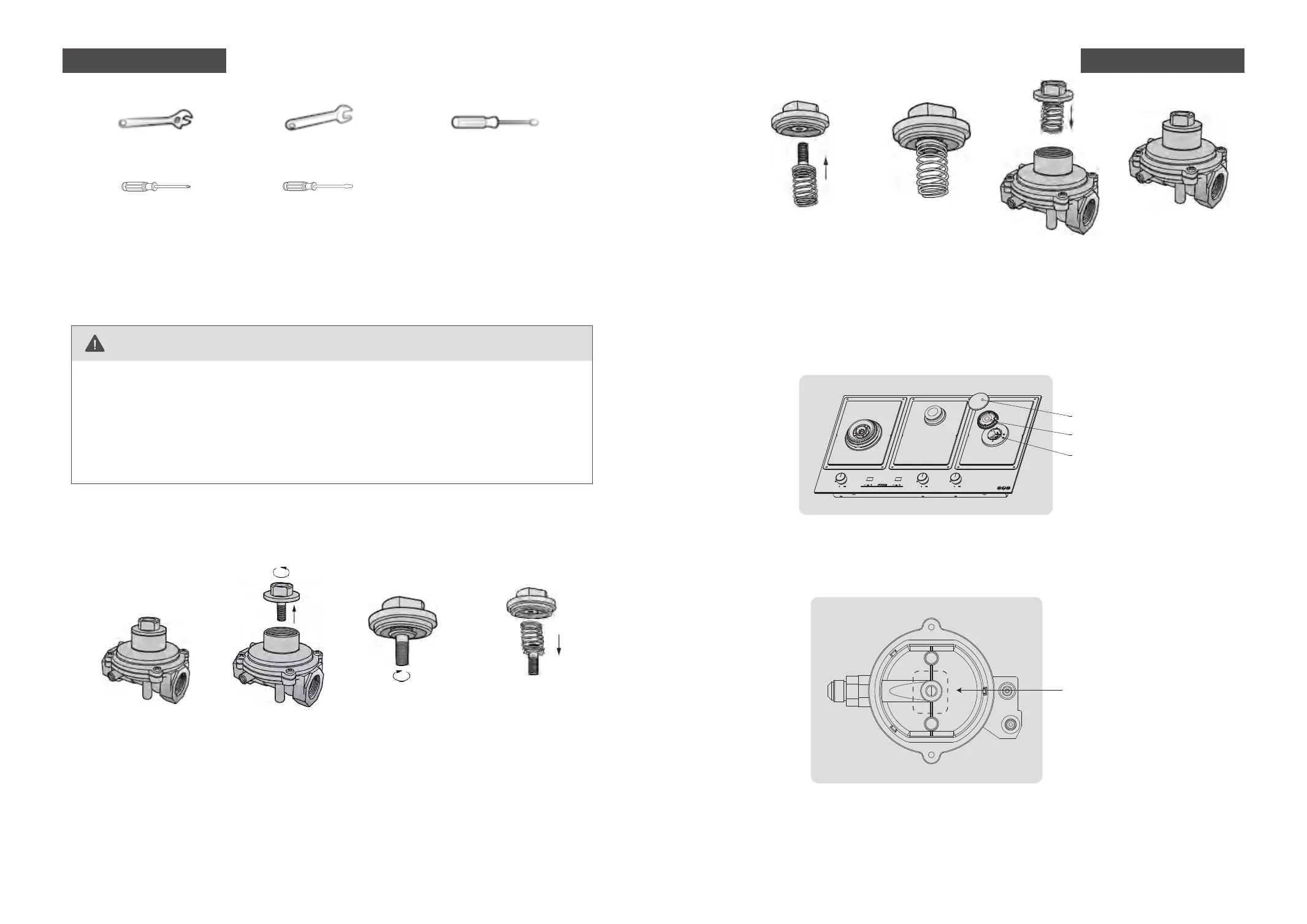

■ 1. Following below instruction to change pressure regulator
from natural gas to LP
B
Unscrew the threaded pin
from top hat
Configuration for
natural gas
D
Unscrew the top hat
nut from the regulator
A
C
E
Configuration for
LPG
H
Upturn threaded pin
and screw pin back
Refit the top hat nut
assembly to the regulator
F
G
■ Requipped tools
1. Disconnect electrical power to the cooktop. Unplug the cooktop power cord, trip the circuit
breaker, or remove the fuse from the fuse box.
2. Shut off the gas supply to the cooktop. Close the manual shut-off valve to the cooktop.
To convert your cooktop for use with LP gas, perform the following steps
and procedures:
Adjustable wrench 9/32” open-end wrench Nut drivers:9/32”or 7mm
Phillips screwdriver 3/16” Flat-blade screwdriver
