Warning
Before any operation of maintenance, disconnect
the appliance from the electrical main supply.
-13- -14-

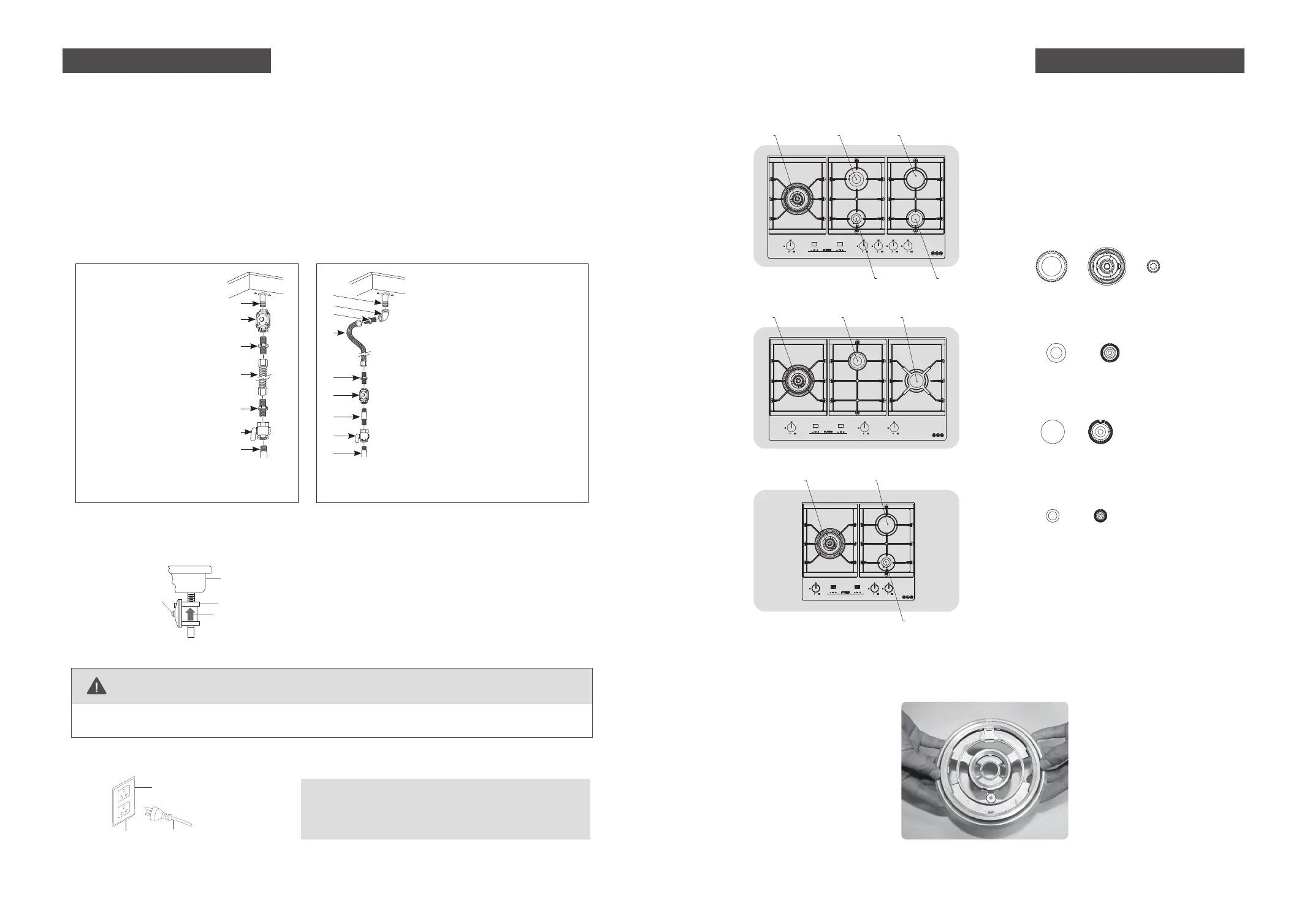

■ Step 4: Burner components and grate installation
Installation procedure
• FOTILE gas cooktops are manufactured and shipped to be used with natural gas. If you want to
use LPG, please convert before using.
• To prevent gas leaks, please use professional gas pipe sealing materials on all male (external)
pipe threads.
• Attach the gas pressure regulator (included with the cooktop) to the cooktop pipe nipple inlet. For
tight installations, the regulator may be installed upstream from the pipe nipple, anywhere
between the shut-off valve and the cooktop. For best performance, minimize gas pressure loss by
attaching the regulator as close as possible to the cooktop gas inlet.
• When all connections have been made, make sure all cooktop controls are in the off position and
turn on the main gas supply valve.
• Use Soap-suds at all joints and connections to check for leaks in the system.
• Tighten all connections if necessary to prevent gas leakage in the cooktop or supply line.
No appliance/obstructions
below cooktop
A
B
C
D
E
F
G
A. R 1/2" male pipe thread
B. Regulator provided with
unit:
• Outlet - R 1/2"
female pipe thread
• Inlet - R 1/2" female
pipe thread
C. Adapter
• Outlet female
pipe thread
• InIet female
pipe thread
D. Flexible connector
E. Adapter
F. Manual shut-off valve
G. Gas pipe
Suggested installation to avoid interference
below cooktop
A
B
C
D
E
F
G
H
I
A. R 1/2" male pipe thread
B. Elbow
C. Adapter
• Outlet female
pipe thread
• InIet female pipe
D. Flexible connector (allows passage
through cabinet wall)
E. Adapter
F. Regulator provided with unit:
• Outlet - R 1/2" female
pipe thread
• Inlet - R 1/2" female pipe thread
G. Gas pipe
H. Manual shut-off valve
I. Gas pipe
WARNING
The electrical system, including the power cord, is preinstalled and prewired at the factory.
Altering any part of this system may result in a short or overload.
■ Step 3: Electrical connections
• All gas cooktops come with a power cord. The power cord is connected to the bottom of the cooktop
• Plug in the power cord. Make sure the outlet meets local or national electrical codes
A
B
C
D
• Pressure regulator installation
Install the pressure regulator with the arrow pointing in the direction toward the bottom of
the cooktop base and in a position where you can reach the regulator access cap.
A. Access cap
B. Rear of cooktop
C. Gas pressure regulator
D. Up arrow.The arrow is on the
bottom of the pressure regulator.
1. Hold the burner head so the shiny silver side is facing down. Find the small hole in the burner
head as noted in this picture.
Burner components installation
A
Installation procedure
Earthed outlet box
Earthed plug
Earthed outlet
GLG90505
1 2 3
24
1.Wok burner:23MJ/h Versatile Tri-Ring Burner
Outer
Burner Cap
Burner
Head
Inner
Burner Cap
2.Semi-rapid burner:6.5MJ/h
Burner
Cap (Φ73.5)
Burner
Head
4.Auxiliary burner:3.5MJ/h
Burner
Cap (Φ50)
Burner
Head
3.Rapid burner:14.5MJ/h
Burner
Cap (Φ91)
Burner
Head
GLG60305&GLG60305-Y
1 3
4
GLG90305&GLG90305-Y
1 2 3
