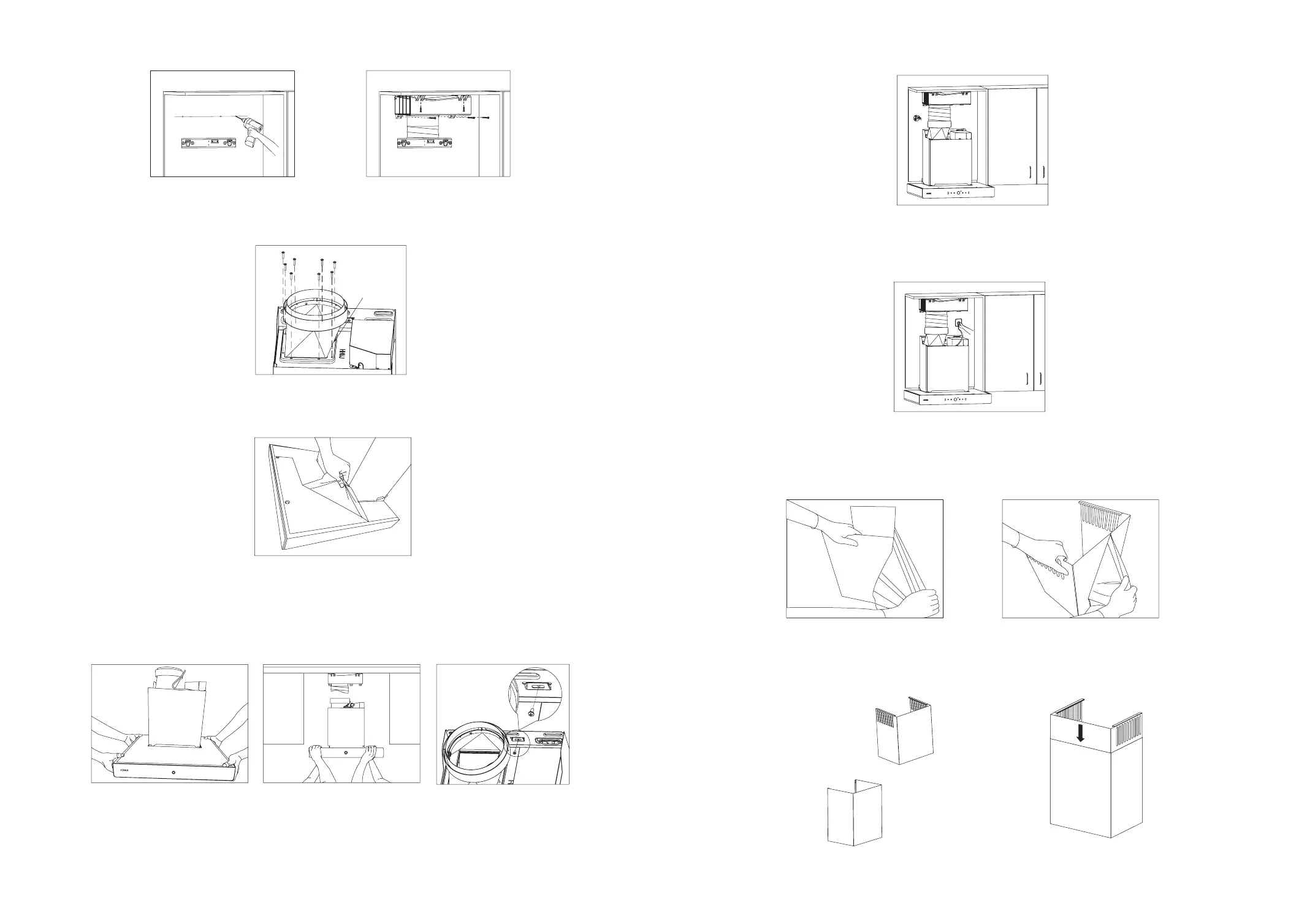

7. . Install the exhaust hood: x the exhaust hood and sealing ring at the air outlet of the main body with
8 exhaust hood screws (M4 × 18 mm);
The bevel
should towards
the electrical box
8. Remove the protective lm from the top plate surface;
9. Lift the main body, hang the back hook hole onto the hook, conrm the level of the main
body with a level bar, and x the fan frame and the hook with the fan frame screw (M4 ×
6mm);
10. Connect and x the exhaust duct: according to the actual installation position of the main body, cut off the
redundant exhaust duct with wire pliers, then x the exhaust duct on the exhaust hood with two exhaust
duct screws ST3.9x9.5
m m
, and wrap and seal with sealing tape;
11. Insert the power plug of the main body into the power socket, start the range hood, and check
whether the connection between the exhaust duct and the exhaust hood is sealed in good condition;
12. Install the fan cover and decorative hood :
1) Remove the protective lm from the surface of fan cover and decorative hood;
2) Put the decorative hood into the fan cover;
Fan cover
Decorative
cover
