- 22 - - 23 -

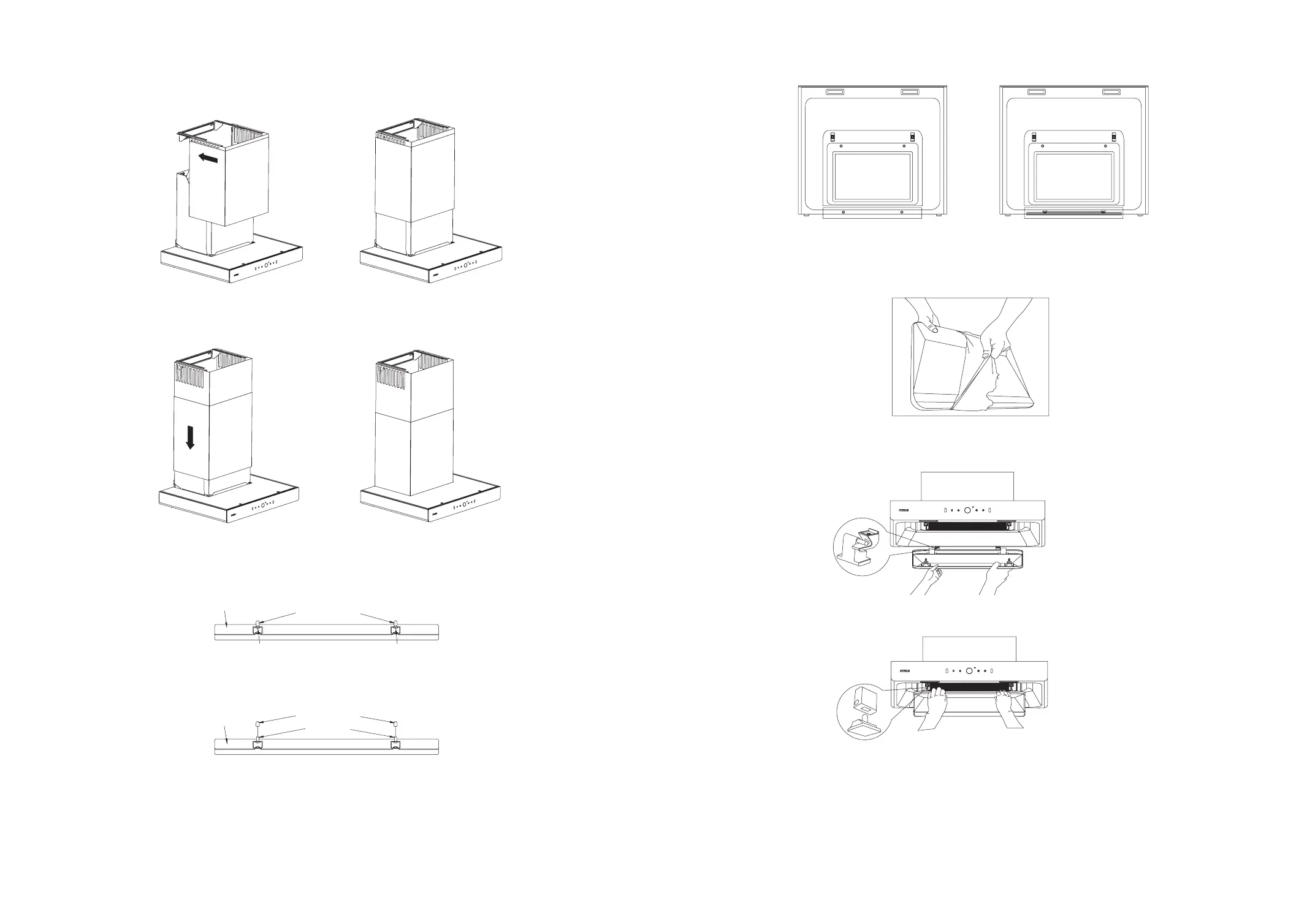

3) Take up the fan cover and the decorative hood at the same time, hang the decorative hood on
the hook of the decorative hood rst, and then simultaneously push the decorative hood and the
fan cover to the end along the cover hook ;
4) Slide the fan cover down slowly, clip the locking tab of the fan cover into the fan frame, and then
insert the fan cover into the gap between the top plate and the fan frame.
13. Installation the wing plate rack;
1) Remove the components of the rack;
Screw cap
Wing plate rack
Screw Screw
2) Remove the screw cap;
Screw
Screw cap
Wing plate rack
3) Fix the components of the rack to the bottom of the range hood with a cross screwdriver.
After installation
Before installation
14. Installation of the wing plate;
1) Remove the protective lm from the wing plate;
2) Hold the front side of the wing plate tightly with both hand, and putting the left and right hook on
the rear side of the wing plate into the hook frame at the bottom of the exhaust fume collecting
hood;
3) Hold the wing plate with both hands and rotate it upward, clamp the locking tab of the wing
plate into the bump buckle on the exhaust fume collecting hood.
Notes:1.Failure to install all the parts (e.g. wing plate) in accordance with these instruction, may result
re hazard.
2.If it takes much effort to clip the locking tab of the wing plate into the buckle on the exhaust
fume collecting hood, please refer to Point 13 of “Precautions for Installation” in P17 to check
the status of installation surface for the range hood and operate according to the instructions.
