- 29 -

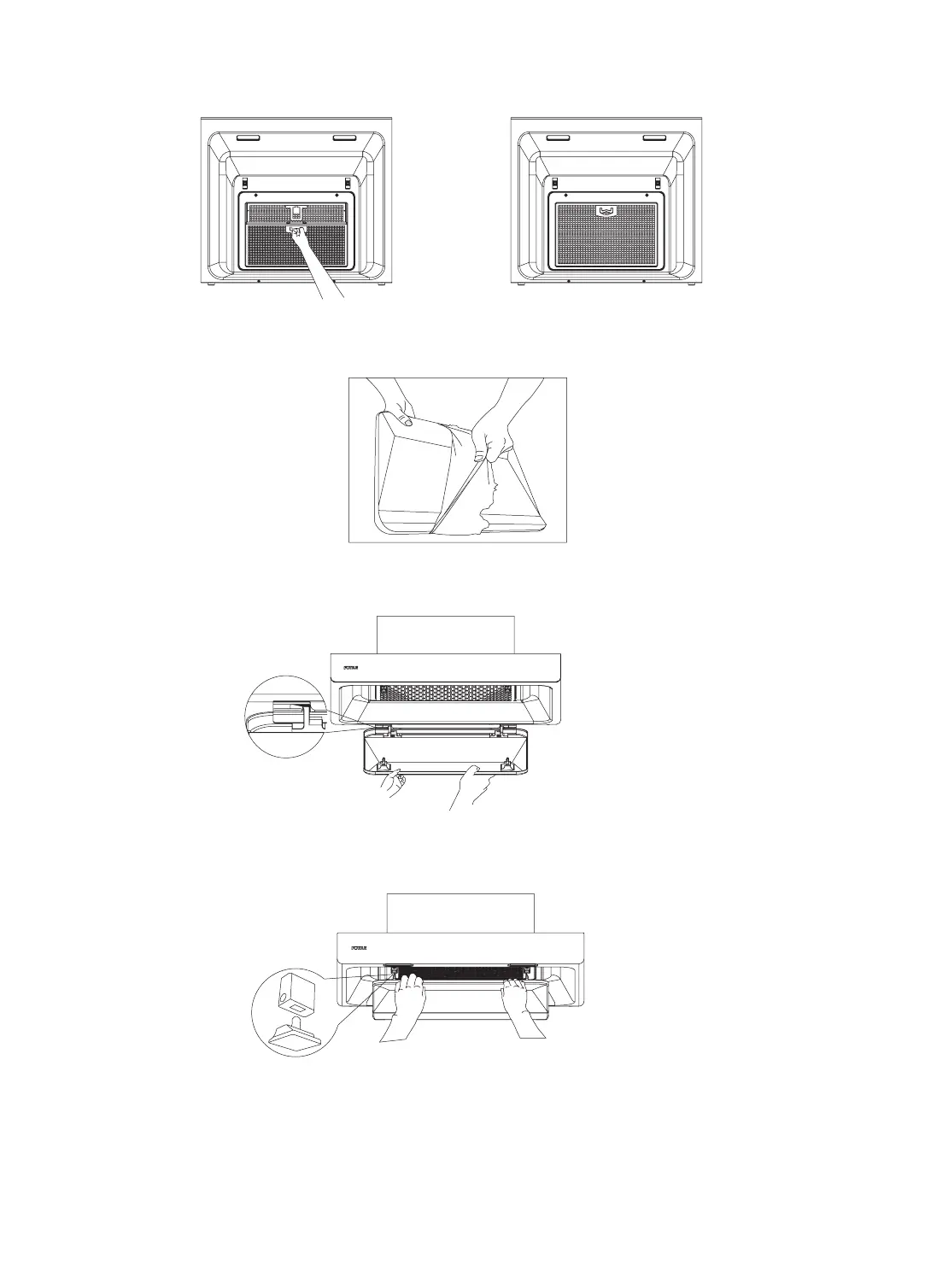

3) Finally, install the removed front lter in the original position.
14. Install the wing plate;
1) Remove the protective lm from the wing plate;
2) Hold the front side of the wing plate tightly in both hands, and put the left and right hook on the
rear side of the wing plate into the hook frame at the bottom of the exhaust fume collecting hood;
3) Hold the wing plate with both hands to rotate it upward, and then clamp the locking tab of the wing
plate into the bump buckle on the exhaust fume collecting hood.
Notes:1.Failure to install all the parts (e.g. wing plate) in accordance with these
instruction, may result re hazard.
2.If it takes much effort to clip the locking tab of the wing plate into the buckle on
the exhaust fume collecting hood, please refer to Point 13 of “Precautions for
Installation” in P17 to check the status of installation surface for the range hood
and operate according to the instructions.
