- 23 -

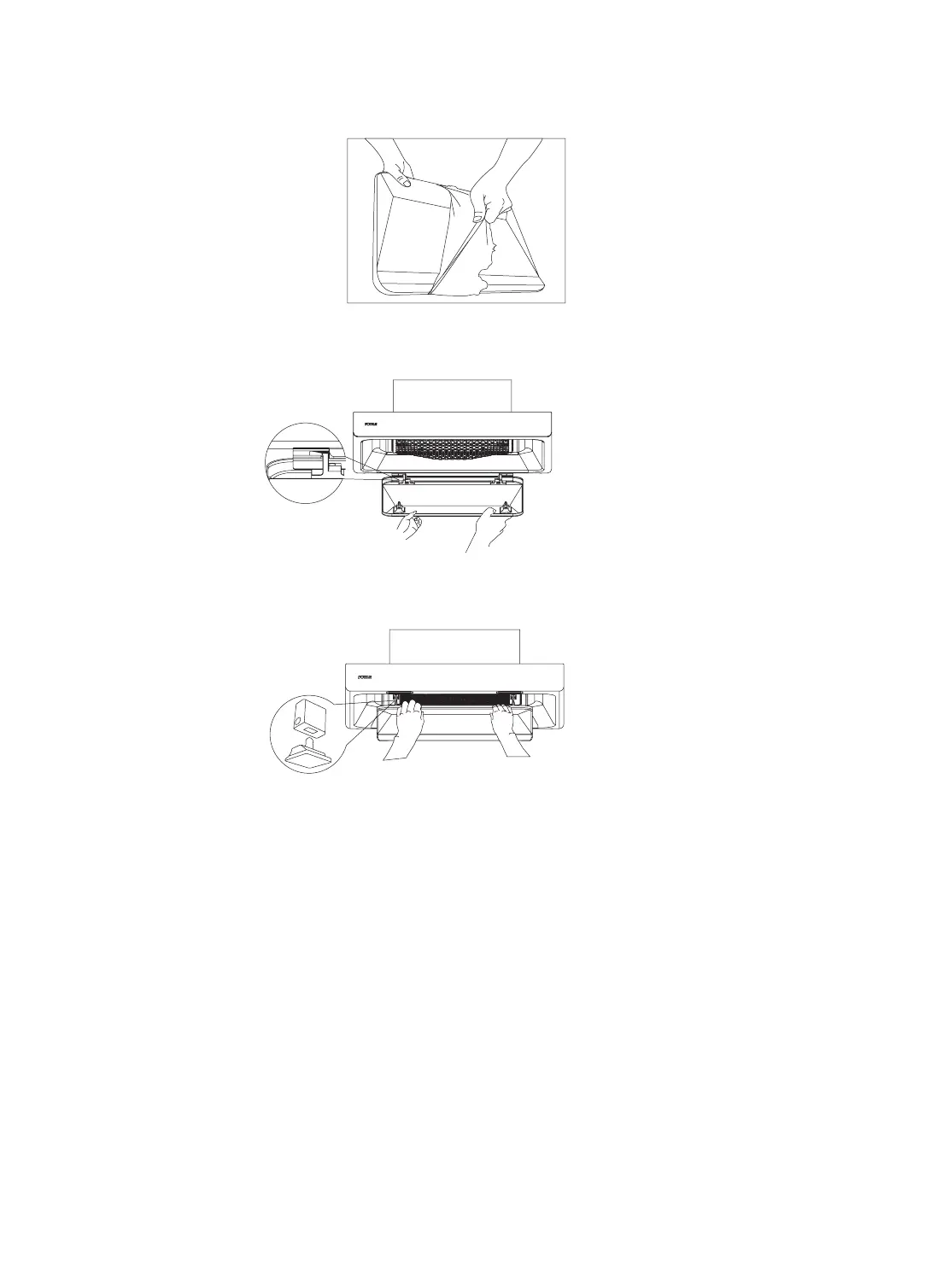

13. Installation of the wing plate;
1) Remove the protective lm from the wing plate;
2) Hold the front side of the wing plate tightly with both hand, and putting the left and right hook on
the rear side of the wing plate into the hook frame at the bottom of the exhaust fume collecting
hood;
3) Hold the wing plate with both hands and rotate it upward, clamp the locking tab of the wing
plate into the bump buckle on the exhaust fume collecting hood.
Notes:1.Failure to install all the parts (e.g. wing plate) in accordance with these instruction, may result
re hazard.
2.If it takes much effort to clip the locking tab of the wing plate into the buckle on the exhaust
fume collecting hood, please refer to Point 13 of “Precautions for Installation” in P17 to check
the status of installation surface for the range hood and operate according to the instructions.
