- 19 -
for EMG6020-C/EMG6020-CY) is 156mm- 439mm from the bolt hole of the main body hook to the bolt
hole of the cover hook
；
156~439mm
Distance from the supporting
surface of cooking utensils on
the stove to the countertop
1132~1182mm
Notes: If ceramic tile, marble or glass and other decorative plates are found to protrude from the mounting
surface of the hook, please refer to Point 13 of “Installation Precautions” in P17 for operation.

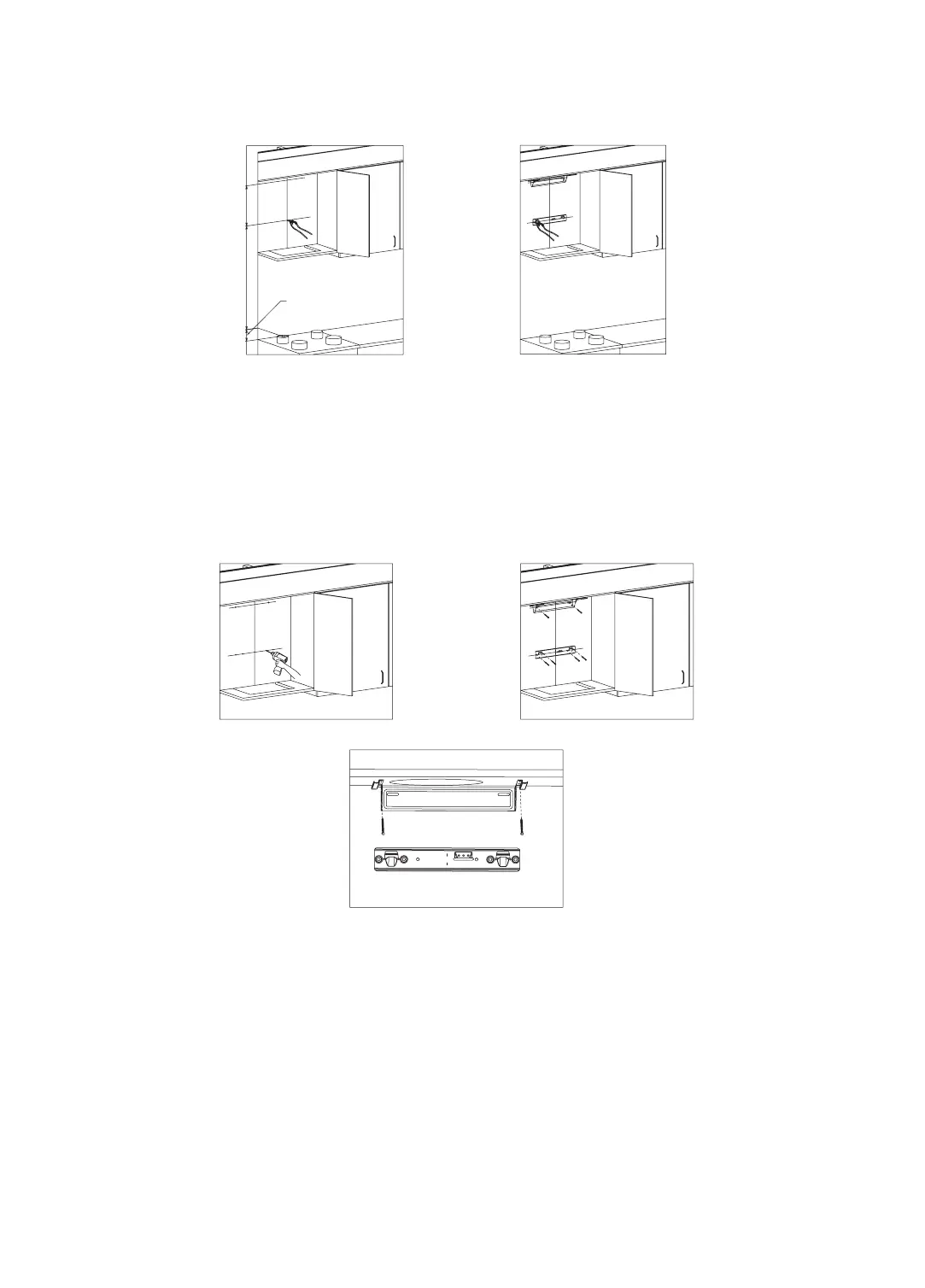

4. How to x the hook:
；
1
）
Ceramic tile (marble) at the drilling mark: drill φ 8mm hole at the drilling mark with an electric drill, then
embed the ceramic tile expansion tube (5.3 × 32mm), x the hook with the hook screw (ST4.2 ×
36mm), and use a spirit level to make sure the hook is level
；
2
）
Gypsum board at the drilling mark: screw the gypsum board expansion tube (4 × 40mm) directly
into the wall surface with a screwdriver at the drilling mark, then x the hook with the hook screw
(ST4.2 × 36mm), and use a spirit level to make sure the hook is level
；
3
）
For the cover hook, two cover hook screws (ST2.9 × 19 mm) can be used to x it to the ceiling.
Notes: 1) The drill bit shall be selected according to the specic situation of the wall material at
the installation site.
2) After cleaning with strong acid/alkali detergent or dish washing powder, it may cause the
change of color of the front lter screen, but it does not affect the use.
5. Drilling the cupboard base board :First conrm the center line of the cupboard base board, then
draw the drilling line according to the drilling size of the upper cupboard base board, and nally
cut the hole in the cupboard base board along the drilling line with the wood cutting tool
；
