- 18 -
Installation of Exhaust Type Range Hood
Warning :
make sure operate with protective gloves.
1. Open the packing box and remove the main body. Check the packing list
；（
see P15
）
2. Remove the fan cover and decorative hood (only for EMG6020-C/EMG6020-CY): remove the 2 screws
that x the fan cover behind the main body with a screwdriver(see Fig.6), and then grab the fan cover and
decorative hood with both hands to take them out upward(see Fig.7)
；
Fig.6 Fig.7
3.
Conrm the position for xing the hook: rst, draw a vertical center line at the center point where the
range hood is to be installed, then take the supporting surface of the cooking utensils on the stove as the
reference point, accurately determine the installation position of the hook on the solid wall, and make
a punch mark. The hook size of the main body is 1132mm-1182mm from the supporting surface of
cooking utensils on the stove to the bolt hole of the hook; the hook size of the decorative hood (special

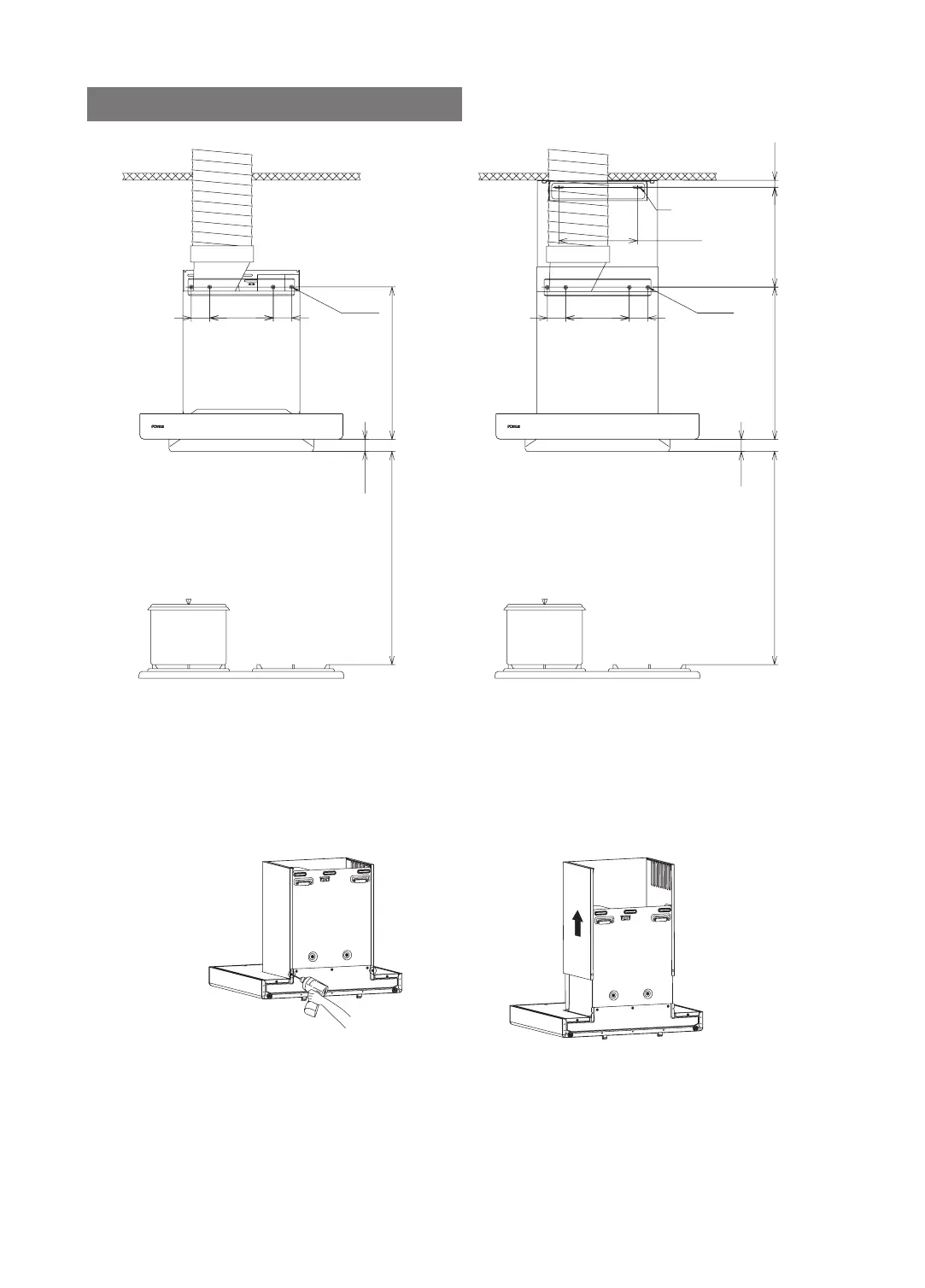

EMG6020/EMG6020-Y
Installation dimension drawing (unit:mm)
EMG6020-C/EMG6020-CY
Installation dimension drawing (unit:mm)
650~700
36
446
54 186 54
hook
650~700
36
446
54 186 54
hook
Decorative
cover hook
230
20
156~439
