- 17 -
too much, so as to prevent the expansion tube from getting loose and accidentally falling.
9. To avoid re hazards and keep the air fresh, the exhaust duct of the exhaust type range hood must be
connected to the outdoor to discharge the exhaust gas.
10. It is not permitted for the exhaust gas discharged from the range hood to be discharged into the hot
ue for burning gas or other fuel.
11. Try to ensure the fuselage remains horizontal during installation.
12. Confirm there are no abnormalities found in the trial operation upon installation. Please read the
manual carefully and keep it for future reference.

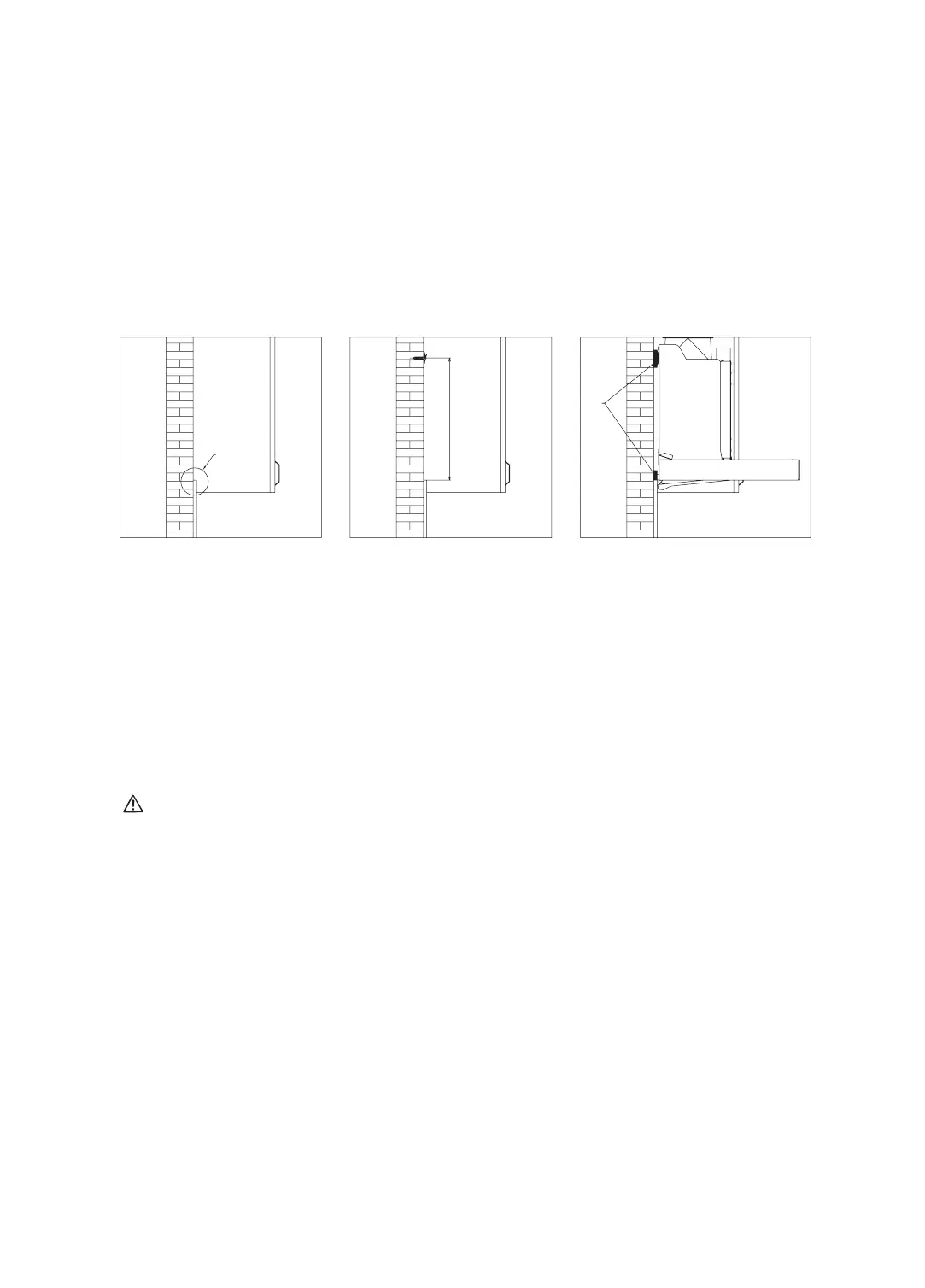

13. Where there is a step difference on the installation wall of the range hood as shown in Fig.1, if there
is a situation as shown in Fig.2, the operation shall be carried out as shown in Fig.3, i.e., the support
plates shall be added on the back of the hook and the foot-pad of the range hood. The thickness of the
support plates shall be consistent with the height of the steps.
Fig. 3
support
plates
Fig. 1
Step
Difference
Fig. 2
415<h<500
■
Installation position
1. The range hood can only be installed in domestic kitchens, please do not use it in other situations.
2. The range hood must be installed above the stove, and the installation position is as shown in the
installation diagram.
3. The temperature of the surrounding environment of the range hood cannot exceed 40˚C.
4. The installation wall shall be noncombustible, and it is strictly forbidden to install on such ammable
walls as those made of wooden wall.
5. Please follow the installation dimensions recommended in this manual to ensure the best oil fume
suction effect.
■
Precautions before Installation
Warning: In order not to cause damage to the range hood, please make sure that no sundries enter
the exhaust outlet.
1.To estimate the position of the exhaust duct from the range hood to the outside, refer to the installation
diagram.
2.
A straight short exhaust duct will make the smoke exhaust of the range hood more effective.
3.
Try to avoid using an exhaust duct that is too long and has many bends, which will affect the smoke
exhaust effect of the range hood.
4.The connection between the exhaust duct and the wall hole shall be tightly sealed with pipe
adhesive tape. The exhaust duct must also be rmly connected to the exhaust hood
5.If the hole in the wall hole is too small, the smoke exhaust effect shall be affected. To ensure safety, it
is recommended the hole is expanded to the original size of the exhaust duct.
●
Tool preparation
The following tools are required for installation of this range hood
(1) Electric impact drill (with drill φ 8) (2) Phillips screwdriver
(3) Wire pliers (4) Tape measure
(5) Ribbon saw (6) Level bar
