- 14 -

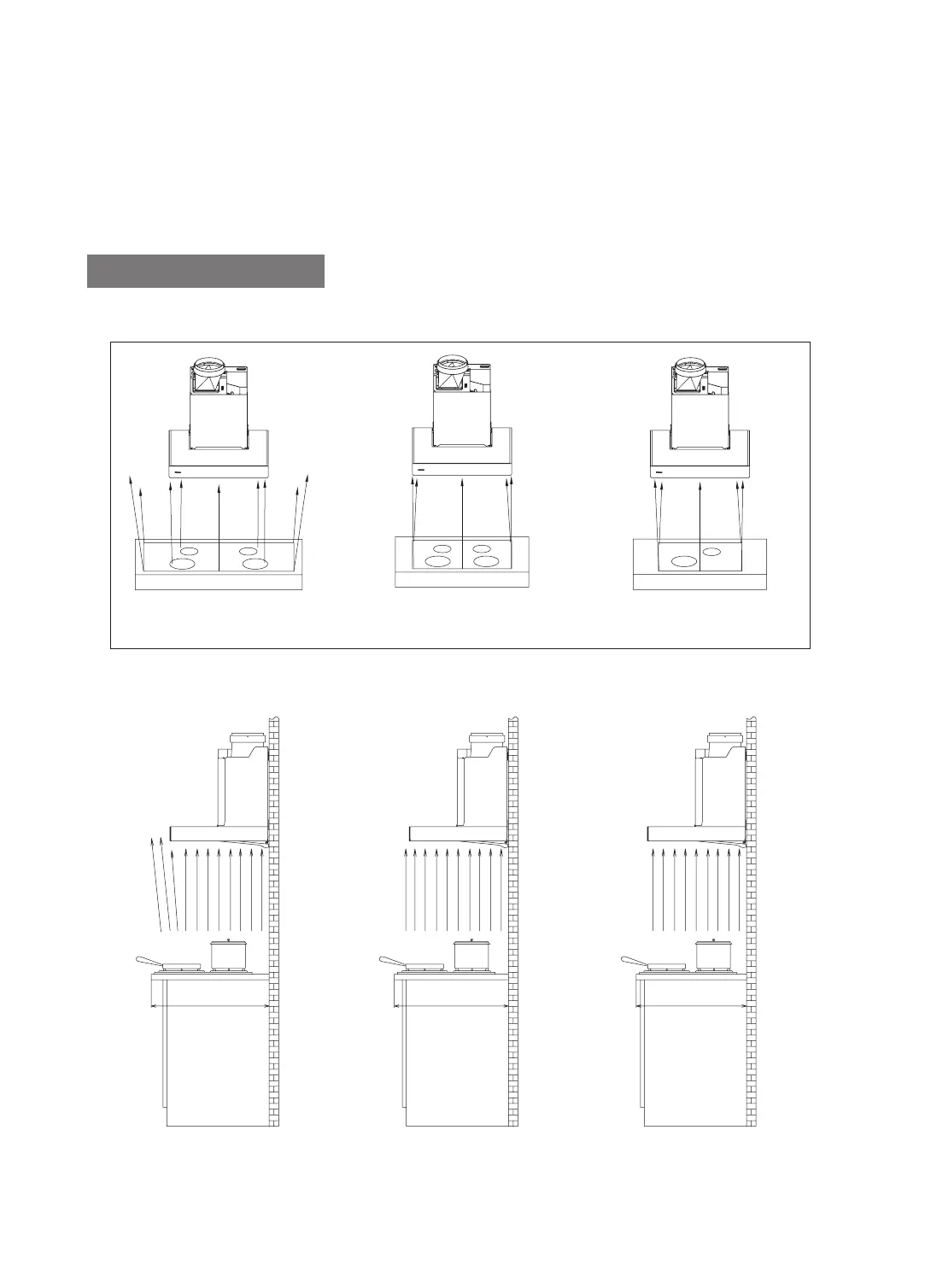

Front and rear fume collection range of the range hood
Left and right fume collection range of the range hood
Fume Collection Range
Note
：
1.The installation height of the range hood is the recommended value (this height is the
clearance value, i.e. the distance between the supporting surface of the cooking appliance
on the stove and the lowest part of the range hood). The diagram of the collocation between
the cupboard and the range hood is for reference only.
2. Please pay attention to the clearance between the exhaust fume collecting hood of the
range hood and the cupboard on both sides before installation or disassembly.
3.If there is a relevant local law specifying the installation of range hood,it is suggested
that you comply with such relevant laws. The suction effect might be inuenced.
INADEQUATE
Rangehood smaller than cooking zone Rangehood same size as cooking zone Rangehood larger than cooking zone
ADEQUATE OPTIMAL
≤580mm
600mm
≥620mm
Side View Side View Side View
INADEQUATE
Rangehood smaller than cooking zone Rangehood same size as cooking zone Rangehood larger than cooking zone
ADEQUATE OPTIMAL
