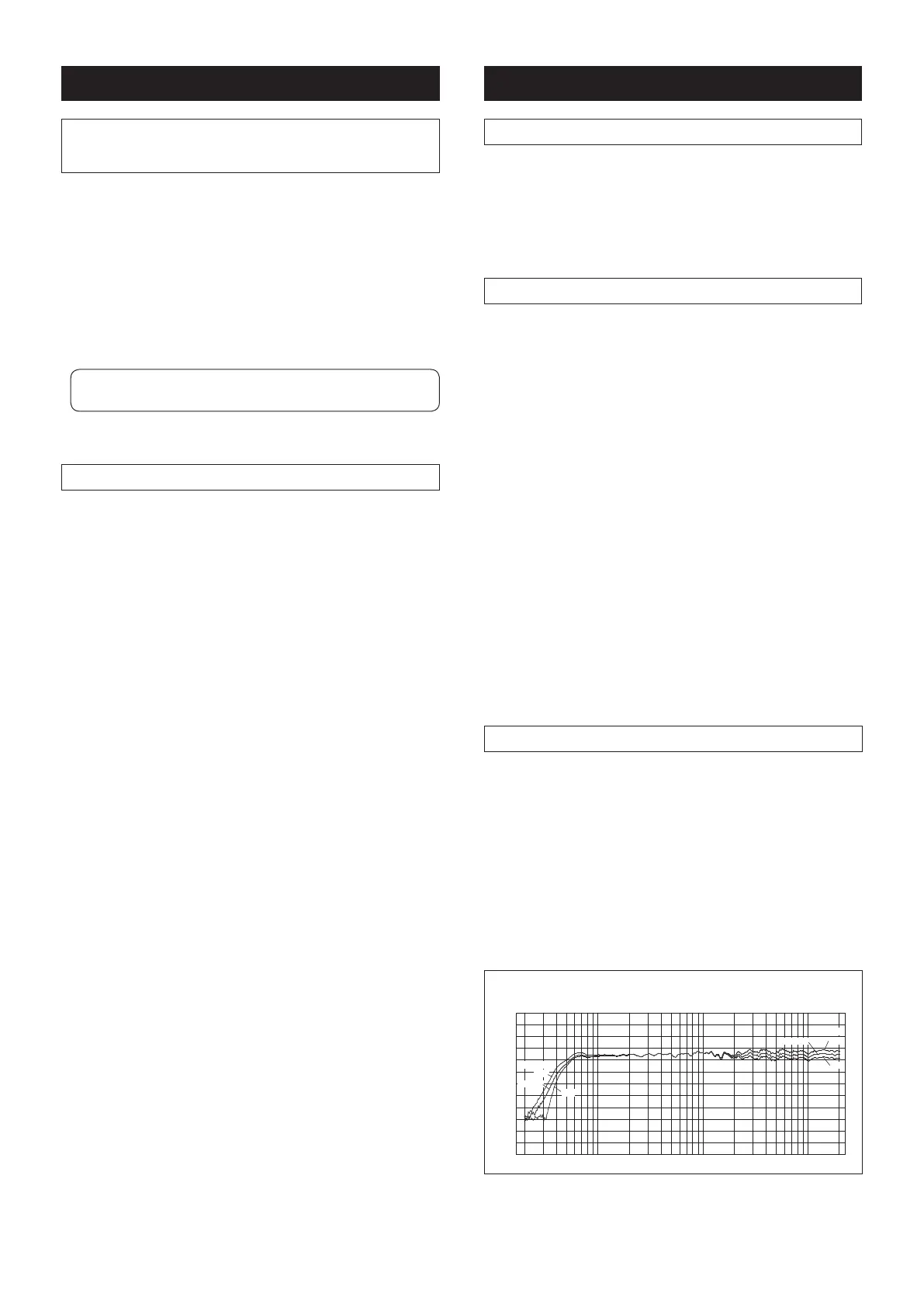

E-11
Speaker section
Enclosure type: 2 way bass reex
Units:
Tweeter: 1-inch soft dome tweeter
Woofer: 5.2-inch, Aramid ber diaphragm
Frequency response: 50 Hz
～
20 kHz
Amplier section
Rated output power
Low: 35 W
High: 18 W
Inputs
XLR-3-31 connector (balanced)
Maximum input level: +24 dBu
Input impedance: 20 kohms or more
1/4” phone jack (unbalanced)
Maximum input level: +10 dBV
Input impedance: 20 kohms or more
RCA jack (unbalanced)
Maximum input level: +10 dBV
Input impedance: 20 kohms or more
*The XLR-3-31 connector and the 1/4”
phone jack are combined in the combo
connector housing.
S/N ratio: 96 dB
Distortion (THD): 0.02 %
Crossover frequency: 2.5 kHz
Subsonic lter: 50 Hz
General
Dimensions: 282 (H) x 175.4
(W) x 237.9 (D) mm
Weight: 5.2 kg
Power requirement: US : 120 VAC, 60 Hz
EUR/UK : 230 VAC, 50/60 Hz
Power consumption: 50 W
(0.5 W or less in standby mode)
* Specifications and appearance are subject to
change without notice for product improve-
ment.
Specications
0
10
20
30
40
50
60
70
80
90
100
110
120
100 1k 10k 20k
20 50(Hz) 200 500
2k 5k
(dB)
BASS
TREBLE
MAX
MIN
CENTER
MAX
MIN
CENTER
Frequency response graph
Using the unit with a subwoofer
Subwoofer settings after adjusting
the phase of the high-pass lter
• Input an 85-Hz sine wave to both the unit and
the subwoofer. If you find the phase is re-
versed, flip the phase of the subwoofer 180
degrees.
• While monitoring music, adjust the level of the
subwoofer appropriately so that you can get a
at sound pressure level at the low frequency
range around 85-Hz.
<Note>: For the subwoofer settings, see its instruc-
tion manual.
Disabling the high-pass lter
The unit that is set to be used with a subwoofer
can be returned to the condition to be used alone
(without a subwoofer) by disabling the high-pass
filter and enabling the tone control function for
BASS.
1) Set the mode select switch to the TONE posi-
tion.
The upper status indicator lights steadily.
2) Press the [CONTROL] knob.
Both the upper and lower status indicators are
unlit.
3) Press the [CONTROL] knob for more than three
seconds.
The lower status indicator lights steadily.
In this condition, the high-pass lter is disabled
while the tone control function for BASS is en-
abled.
