E-4

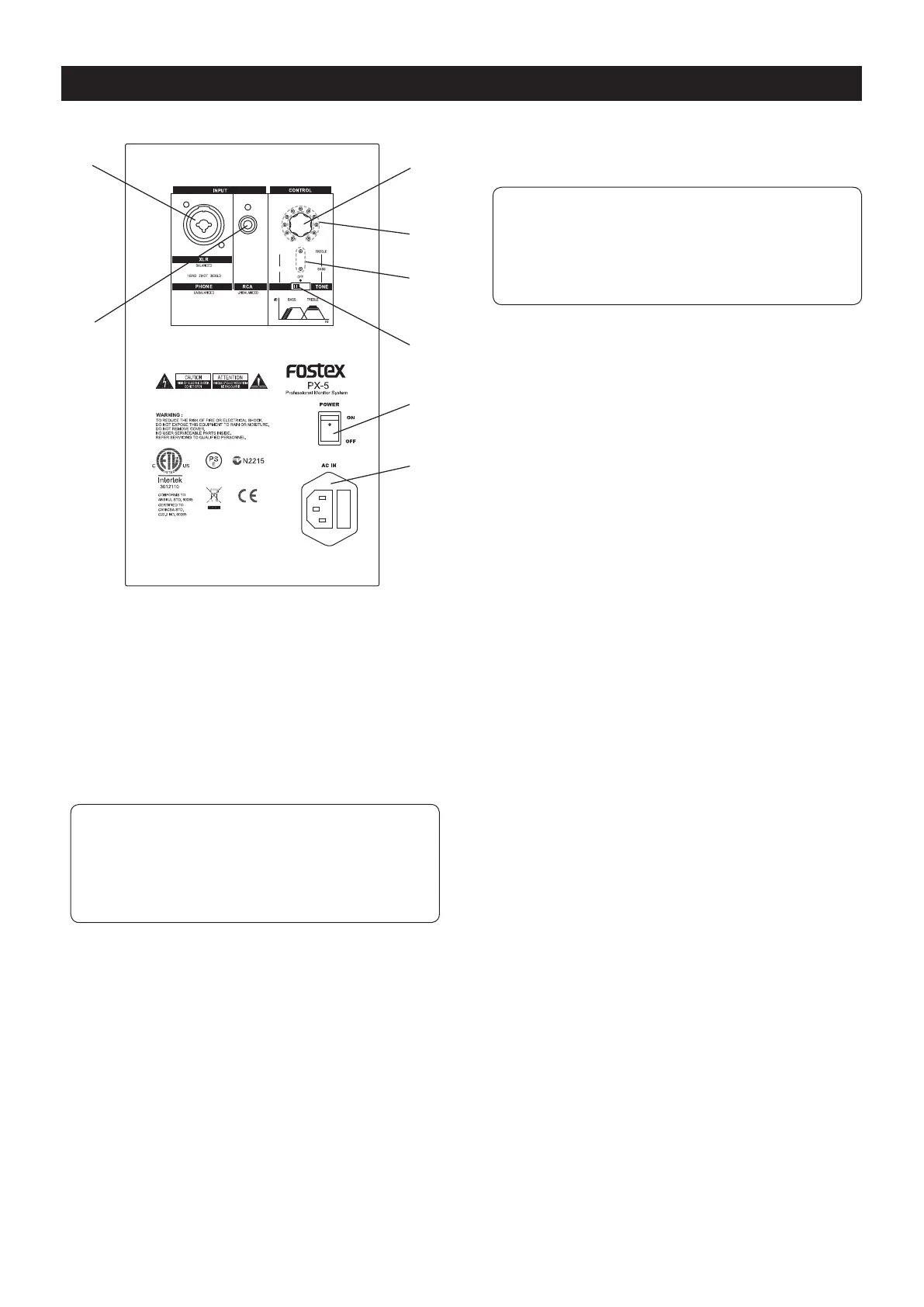

Features and functions
❶
[INPUT] jack (XLR-1/4” combo jack)
You can connect an XLR male connector or 1/4”
phone plug to this combo jack.
The XLR input accepts a balanced line signal,
while the 1/4” phone input accepts an unbal-
anced line signal.
The pin assignment of the XLR connector is as
followings: pin 1: ground, pin 2: hot, pin 3: cold.
<Note>: You cannot use both the RCA and combo
[INPUT] jacks simultaneously.
When a plug is plugged into the RCA jack, the phone
jack is disabled.
When an RCA plug and an XLR connector are simul-
taneously inserted to the RCA and XLR jacks respec-
tively, both the input signals are mixed.
❷
[INPUT] jack (RCA jack)
You can connect an RCA plug to this unbalanced
line input jack.
<Note>: You cannot use both the RCA and combo
[INPUT] jacks simultaneously.
When a plug is plugged into the RCA jack, the phone
jack is disabled.
When an RCA plug and an XLR connector are simul-
taneously inserted to the RCA and XLR jacks respec-
tively, both the input signals are mixed.
❸
[CONTROL] knob
Used for controlling the volume level and the tone
(bass and treble).
By pressing this knob, you can change the con-
trolling item in the current mode (LEVEL or TONE
mode) selected by the mode select switch.
By rotating this knob, you can adjust the value of
the currently selected item.
By pressing and holding down this knob for a few
seconds, the settings of all items are saved to the
unit.
See “Level and tone controls” on pages 6-7 for
details.
This knob is also used when you make high-pass
lter settings for using the unit with a subwoofer.
See “Using the unit with a subwoofer” on pages
9-11 for details.
❹
Level indicators
The LED indicator corresponding to the current
value of the controlling item is lit. When two ad-
jacent indicators are lit, the value that is in the
middle of the two is selected.
VOLUME
TRIM
LEVEL
❷
❼
❽
❸
❹
❻
❺
❶
