Instructions for assembly
43
ENG

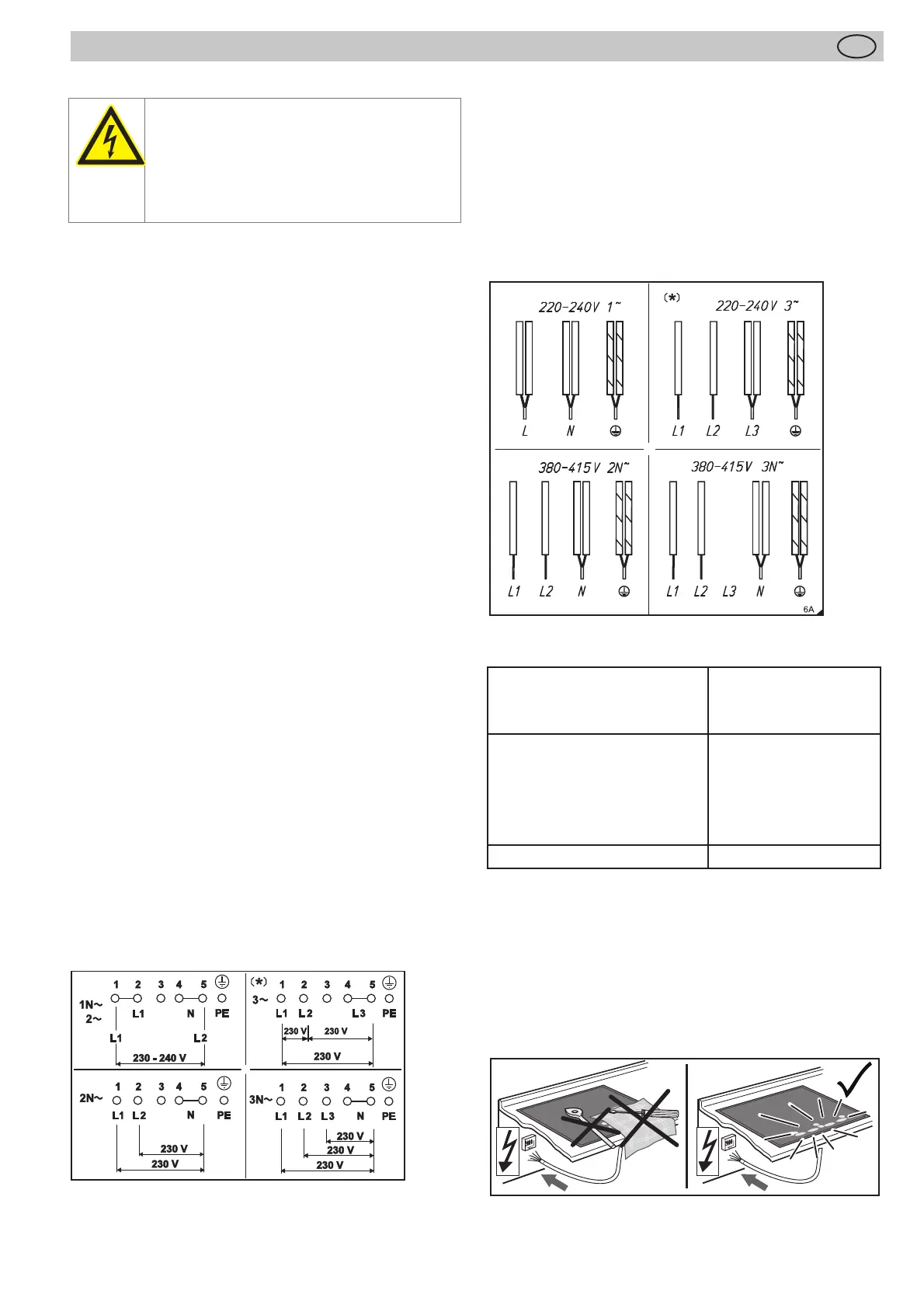

7.4 Electrical connection
WARNING OF ELECTRICAL ENERGY!
RISK OF FATAL INJURY!
Live components have been installed
near this symbol. Covers bearing this sign
may only be removed by a certifi ed skilled
electrician.
• The electrical connection must be carried out by a
qualifi ed electrician who is authorised to carry out
such work!
• Statutory regulations and the connection
specifi cations issued by the local power supply
company must be strictly observed.
• When connecting the appliance it must be ensured
that there is a device which makes it possible to
universally disconnect it from the mains with a contact
opening width of at least 3mm. Line-protecting
switches, fuses or contactors are suitable cut-out
devices. When connecting and repairing the appliance
disconnect it from the electricity supply with one of
these devices.
• The earth wire must be suffi ciently long so that if the
strain relief fails, the live wires of the connecting cable
are subjected to tension before the earth wire.
• Any superfl uous cable must be removed from the
installation area beneath the appliance.
• Make sure that the local mains voltage is the same as
the voltage on the rating label.
• Full protection against accidental contact must be
ensured on installation.
• Attention: Incorrect connection may result in the power
electronics unit being destroyed.
Power supply
Mains voltage: 380-415V 2N~, 50/60Hz
Component rated voltage: 220-240V
No mains cable present in the factory
• To connect the appliance, unscrew the cover of the
connection socket on the underside of the appliance
in order to be able to access the terminal. After
connecting the appliance, replace the cover and
secure the connection cable with the strain relief
clamp.
• The connection cable must be at least H05 RR-F.
Electrical connections: 6-pole connection
* Attention! Special power supply 230 - 240 V 3~ !
Mains cable available in the factory
• The hob has been fi tted with a temperature-resistant
connection cable in the factory.
• Connection to the mains is carried out in accordance
with the circuit diagram, unless the connection cable
is already fi tted with a plug.
• If the mains cable of this appliance is damaged it will
need to be replaced with a special connection cable.
In order to avoid any risks, this must be carried out by
the manufacturer or his Customer Service.
7.5 Technical data
Hob dimensions
height/ width/ depth . mm 50 x 600 x 520
50 x 800 x 520
Cooking zones
Front (left) . . . mm/ kW
rear (left) . . . . . mm/ kW
rear right . .. .. mm/ kW
front right . . . mm/ kW
220 x 190 / 2,1 (3,7)*
220 x 190 / 2,1 (3,7)*
220 x 190 / 2,1 (3,7)*
220 x 190 / 2,1 (3,7)*
Hob ........................... kW 7.4
* Power when the power boost function is activated
7.6 Initial operation
Once the hob has been installed and the power supply
has been provided (mains connected) an automatic test
of the controls will be carried out and information for
Customer Service will be indicated.
Important: No items may be on the touch control sensor
keys when the appliance is being connected!
Briefl y wipe over the surface of the hob with a sponge
and soapy water and then dry with a clean cloth.
green-yellow
blue
white
green-yellow
brown
black
green-yellow
blue
white
green-yellow
brown
black
green-yellow
blue
white
green-yellow
brown
black
green-yellow
blue
white
green-yellow
brown
black
* Attention! Special power supply 230 - 240 V 3~ !
