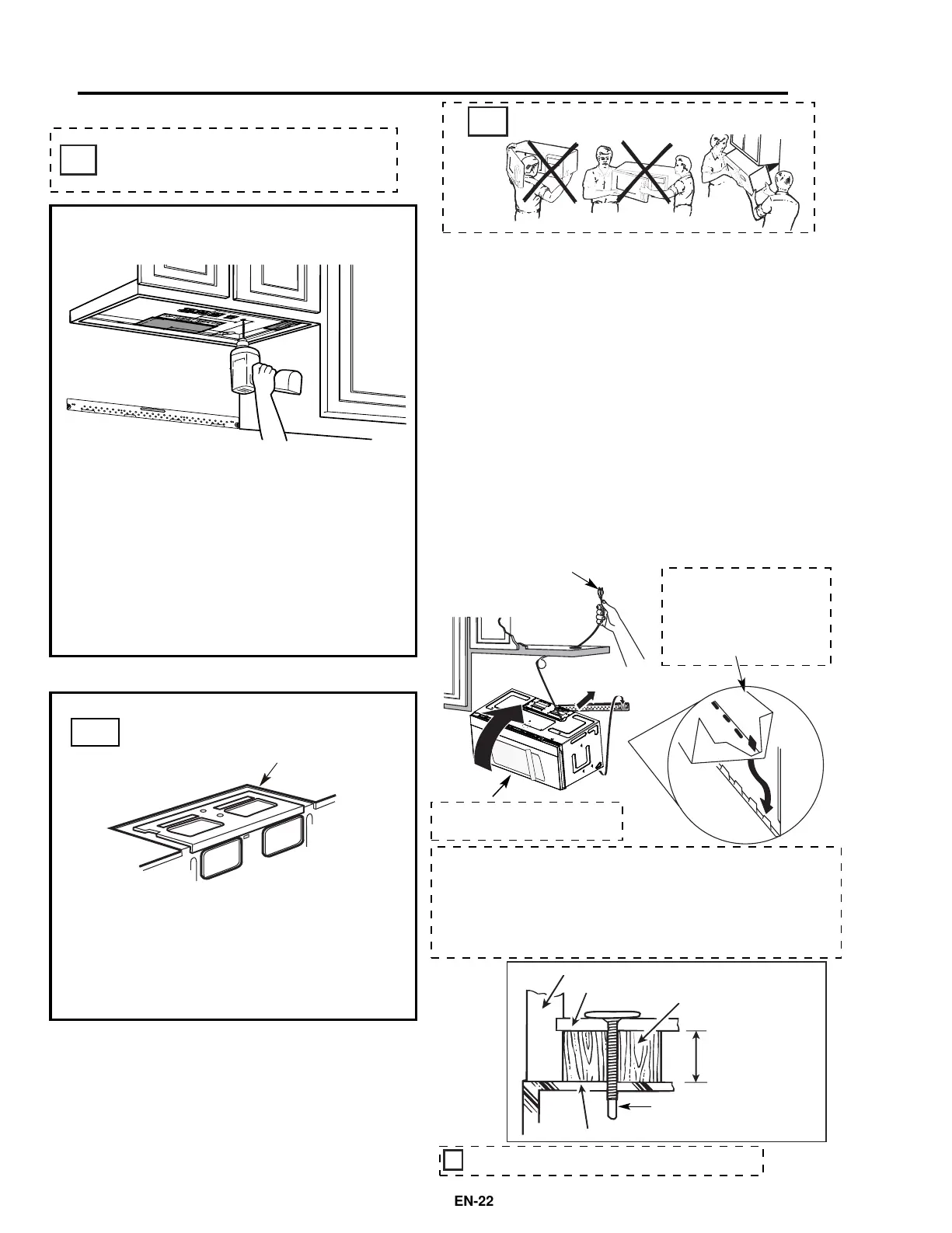

Attach the microwave oven to the top cabinet.
Cabinet Front
Cabinet Bottom Shelf
Filler Block
Microwave Oven Top
Equivalent to Depth
of Cabinet Recess
MOUNT THE MICROWAVE OVEN
Self-Aligning Screw
4
C3.
CHECK BLOWER PLATE
Blower Plate
USE TOP CABINET TEMPLATE FOR
PREPARATION OF TOP CABINET
C2.
You need to drill holes for the top support screws and a
hole large enough for the power cord to fit through.
Read the instructions on the TOP CABINET TEMPLATE.
Tape it underneath the top cabinet.
•
•
NOTE:
Adjust top template accordingly if the microwave
is being spaced out from the wall due to cabinet depth
(including cabinet doors) of more than 13".
Drill the holes following instructions on the TOP CABINET
TEMPLATE.
CAUTION: Wear safety goggles when drilling holes
in the cabinet bottom.
Place the microwave in its upright position,
with the top of the unit facing up.
Check to see that the blower plate is cor-
rectly installed on the unit.
C. Recirculating (Non Vented Ductless)
C4.
FOR EASIER INSTALLATION AND PERSONAL SAFETY,
WE RECOMMEND THAT TWO PEOPLE INSTALL THIS
MICROWAVE OVEN.
IMPORTANT: Do not grip or use the handle
or heat shield during installation. Do not remove the
cardboard spacers between the heat shield and door.
NOTE: If your cabinet is metal, use the nylon grommet
around the power cord hole to prevent
cutting of the cord.
NOTE:
We recommend using filler blocks if the cabi-
net front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not used, case dam-
age may occur from over tightening screws.
NOTE: When mounting the microwave oven, thread
power cord through hole in bottom of top cabinet.
Keep it tight throughout Steps 1–3. Do not pinch cord
or lift oven by pulling cord.
[1] Lift microwave, tilt it
forward, and hook slots
at back bottom edge
onto four lower tabs of
mounting plate.
[2] Rotate front of oven up
against cabinet bottom.
[3] Insert a self-aligning screw through top center cabinet
hole. Temporarily secure the oven by turning the screw at
least two full turns after the threads have engaged (It will be
completely tightened later.) Be sure to keep power cord tight.
Be careful not to pinch the cord, especially when mounting
flush to bottom of cabinet.
EN-22
