Electrical Outlet
Location
4”
5”
Clearances And Dimensions (continued)

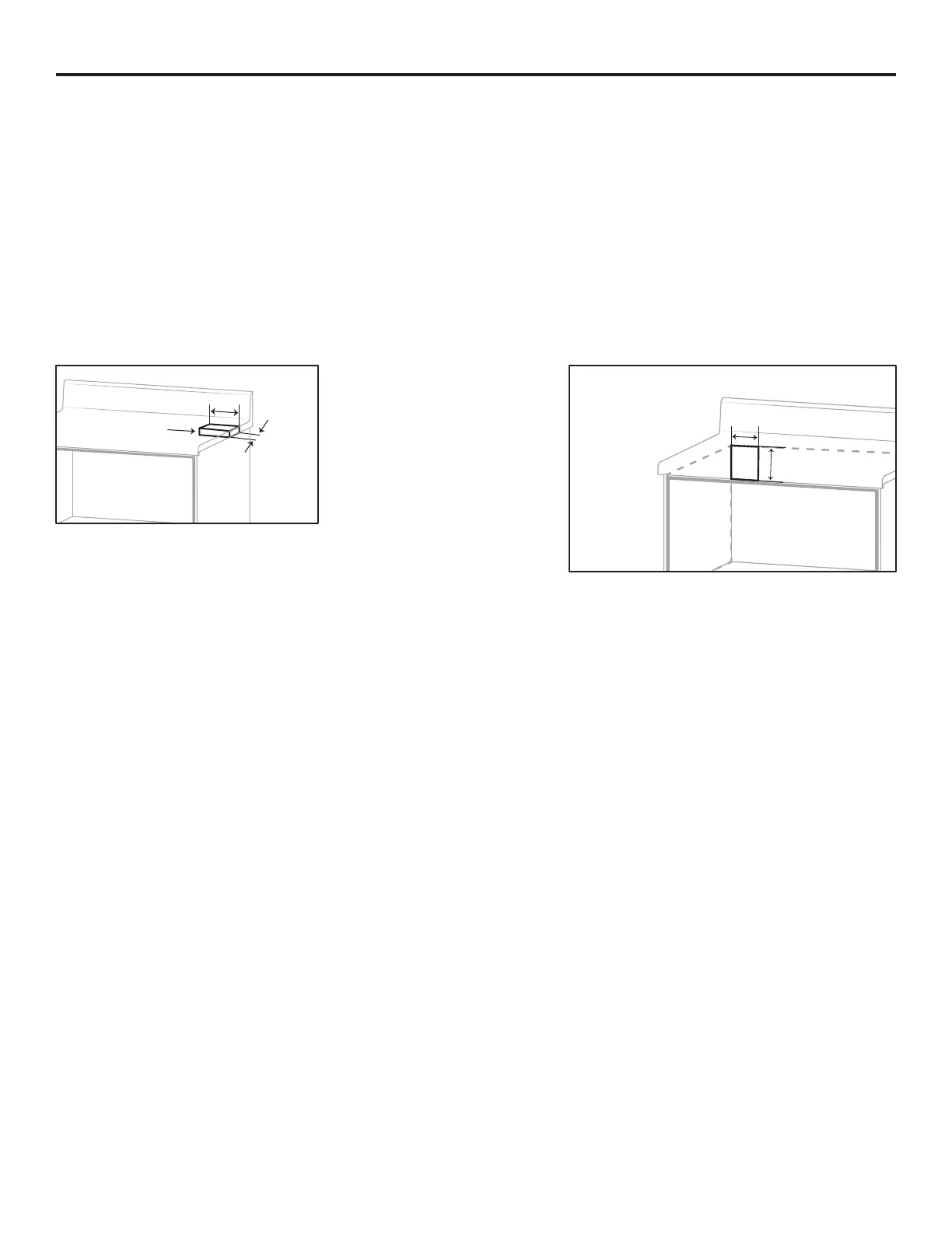

ANTI-TIP BLOCK INSTALLATION INSTRUCTIONS
Figures 1 and 2 contain many Microwave Drawer measurements for reference when planning the
drawer’s location .This Microwave Drawer can be installed below any electric or gas wall microwave.
*Can also be installed using an electrical outlet in an adjacent cabinet within the area where tire
provided electrical cord can reach. Power cord access hole in cabinet should be a minimum l 1/2”
diameter hole and debarred of all sharp edges.
Note: Always allow sucient power cord length to the electrical outlet to prevent tension
Always check electrical codes for requirements.
To reduce the risk of tipping of the drawer, the Anti-Tip block must be properly installed located
14-13/16” inches above the oor on which the Microwave Drawer will sit. The 6-inch Anti-Tip block
must be provided by the installer. See Figures 1 and 3.
The Anti-Tip block prevents serious injury that might result from spilled hot liquids. If the Microwave
Drawer is ever moved to a dierent location, the Anti-Tip block must also be moved and installed.
When installed to the wall make sure that the screws completely penetrate the dry wall and are
secured in wood or metal so that the block is totally stable. When fastening,be sure that the screws
do not penetrate electrical wiring or plumbing. The electrical requirements are a 120 volt 60 Hz, AC
only, l5 amp. Or more protected electrical supply. It is recommended that a separate circuit serving
only this appliance be provided.
The drawer is equipped with a 3-prong grounding plug, It must be plugged into a wall receptacle that
is properly installed and grounded. Should you only have 2-prong outlet, have a qualied electrician
install a correct wall receptacle.
Note: If you have any questions about the grounding or electrical Instructions, consult a qualied
electrician or service person.
*Can also be installed using an electrical outlet in an adjacent cabinet within the area where the
provided electrical cord can reach. Always check electrical codes, for requirements.
ANTI-TIP BLOCK
ELECTRICAL OUTLET
Figure 3
Figure 4
Anti Tip
Block
3 ¹⁄2”
6”
