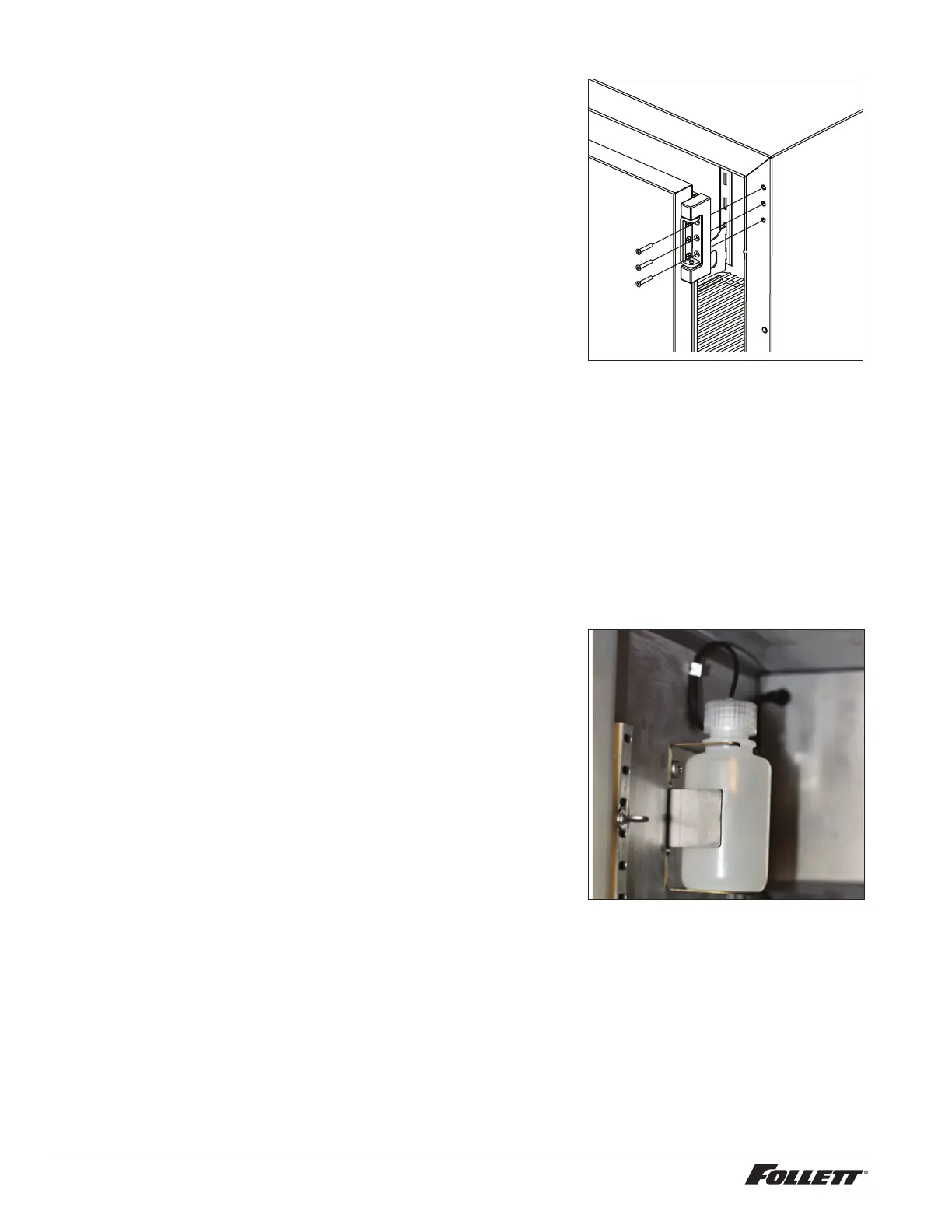

15. Support door and remove screws attaching hinge to refrigerator
cabinet and remove the door (Fig. 22).
16. Remove the hinge from the door.
17. Remove hinge screws from opposite side of cabinet and transfer
to riv-nuts now left exposed from hinge removal on both the
cabinet and door side.
18. Reinstall the hinges on the opposite side of the door.
NOTE: When reversing the door the hinges must also be ipped
upside down
19. Adjust the hinges on the door by pushing the loose hinges
towards the gasket side of the door until the hinge is stopped by
the screws. Tightened screws.
20. Remove knock out on left side panel and route door cable and
strain relief through opening.
21. Reinstall the door onto the cabinet but keep the mounting
screws loose temporarily.
22. Reinstall lock and strike bracket to opposite side of door/cabinet.
23. Reinstall tension spring onto top hinge and adjust for proper
closure.
24. When spring is properly tensioned, door should automatically
close when held open roughly 1”.
25. Reinstall hinge covers.
26. Route door cable to the P10 terminal on the control board.
27. Reinstall control module.
28. Reinstall kickplate.
Fig. 22
Installing Glycerine Solution in Product Simulation Bottle
(glycerine not included - P/N00959296)
1. Remove the bottle from the bracket located in the upper left side
of the freezer (Fig. 23).
2. Remove the top and ll the bottle with a 60/40 solution of glycerine
and water.
3. Replace the top (and probe).
4. Reinsert bottle into the bracket.
Note: If you are using this in a food service application, and installing in
accordance with NSF, you must remove the probe from the bottle.
NSF requires that air temperature be displayed.
Fig. 23
12 FZR4P, FZR5P and FZR5PLP-T Undercounter Freezers
