Attach the Correct Tip

CL07.EPS

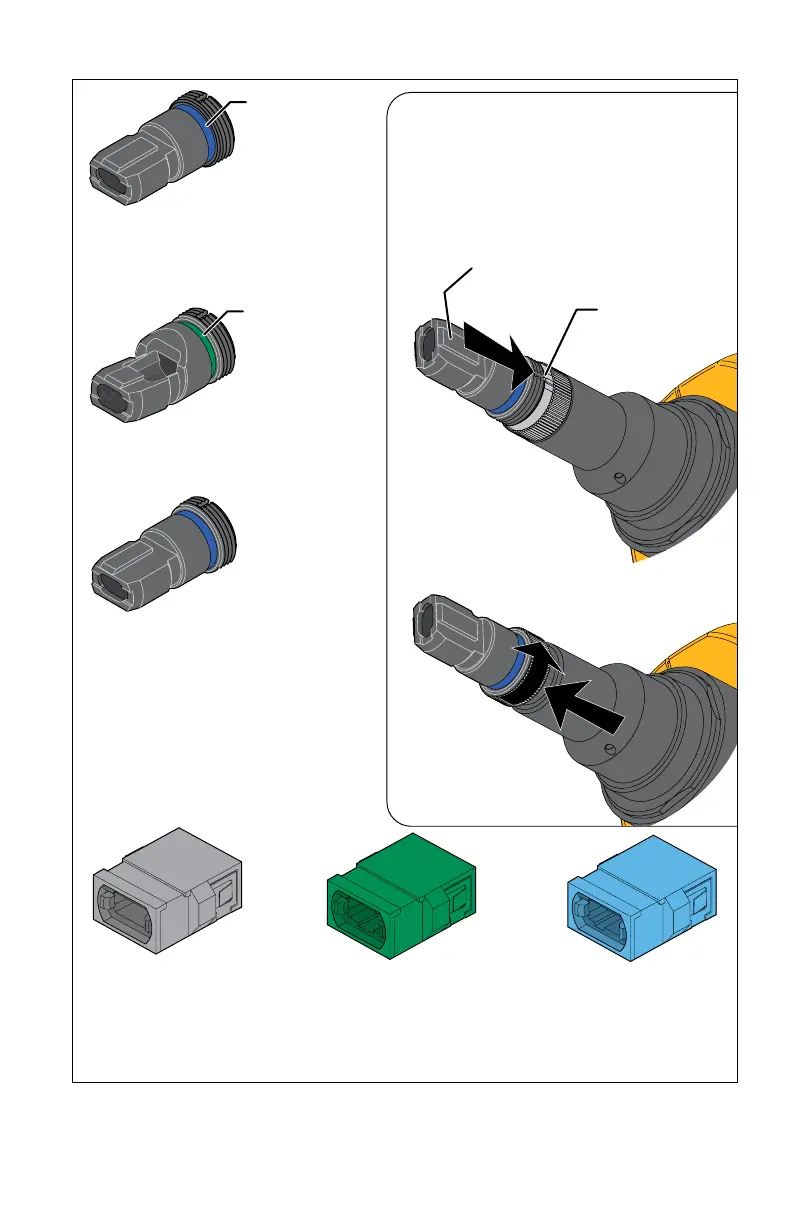

Figure 5. Tips and Adapters

Green, Opposed Keys

12 to 24 fibers,

UPC or APC

M12U

MPO bulkhead tip,

12 to 24 fibers, UPC

Blue: UPC

Green: APC

M12A

MPO bulkhead tip,

12 to 24 fibers, APC

MPO Adapters

Attach an adapter to a tip

to inspect MPO patch cord

connectors.

M16U (optional)

MPO bulkhead tip,

16 to 32 fibers, UPC

You can put the MPO key

on either side. Be sure to set

the Key Position in the app.

See “Set the Key Position”on

page 13.

Slot and key

Gray, Aligned Keys

12 to 24 fibers, UPC

Blue, Opposed Keys

(optional)

16 to 32 fibers,

UPC or APC
