Endface Image Screens
To see a high-resolution image of the endface in a test result
(Figure 10), tap the endface graphic on the TEST RESULT
SUMMARY screen.
E
B
A
C
D
CL11.EPS
A
To zoom in or out or to move the image, use the finger gestures
supported by your device.
B
To hide or see the overlay, tap the image where there is no endface.
C
To see details about the defects on a fiber endface, zoom in slightly on
the endface on the VIEW ALL screen, then tap the endface.
• The IMAGE tab shows the endface with defects highlighted.
• Tap the DEFECTS tab to see more details. See Figure 11.
D
You can swipe the screen to scroll through the endfaces.
E
Tap Save to save the result in the active project.

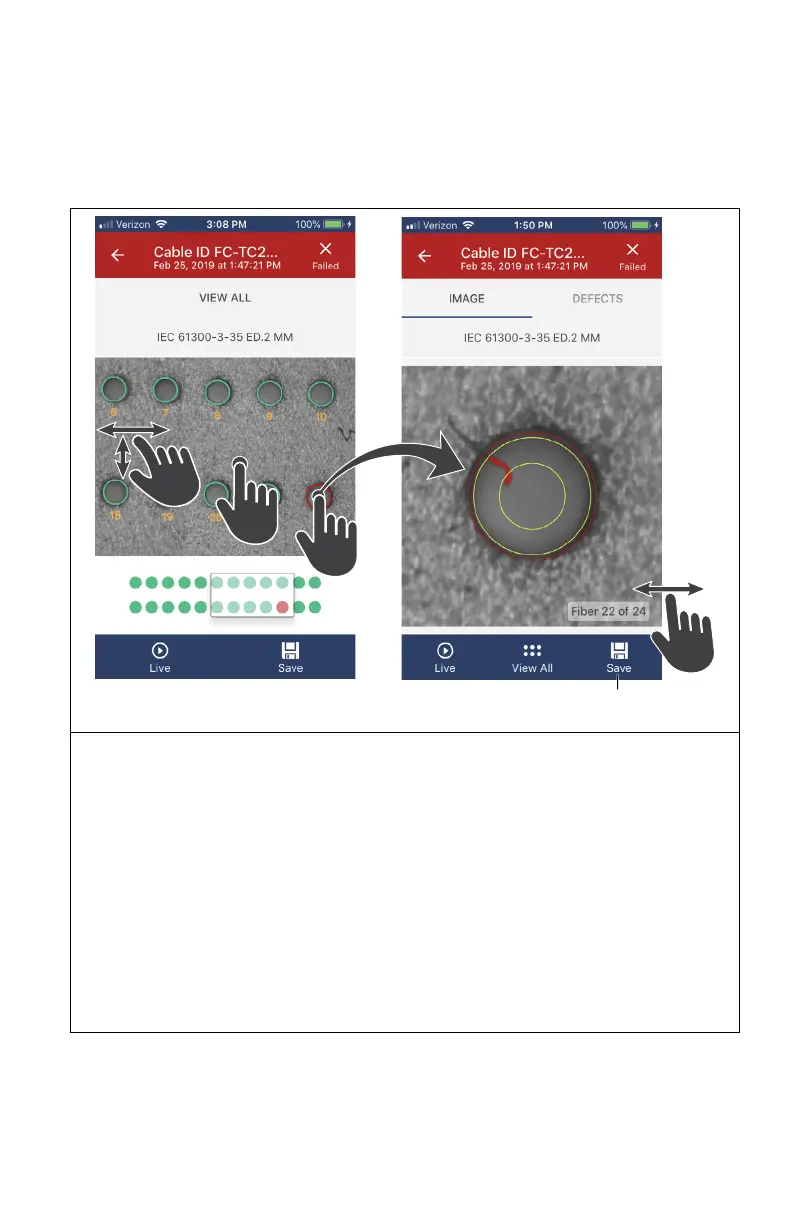

Figure 10. Image Details
