40November 2022
Cameras Screens
Horizon/Meridian Admin Center Help File

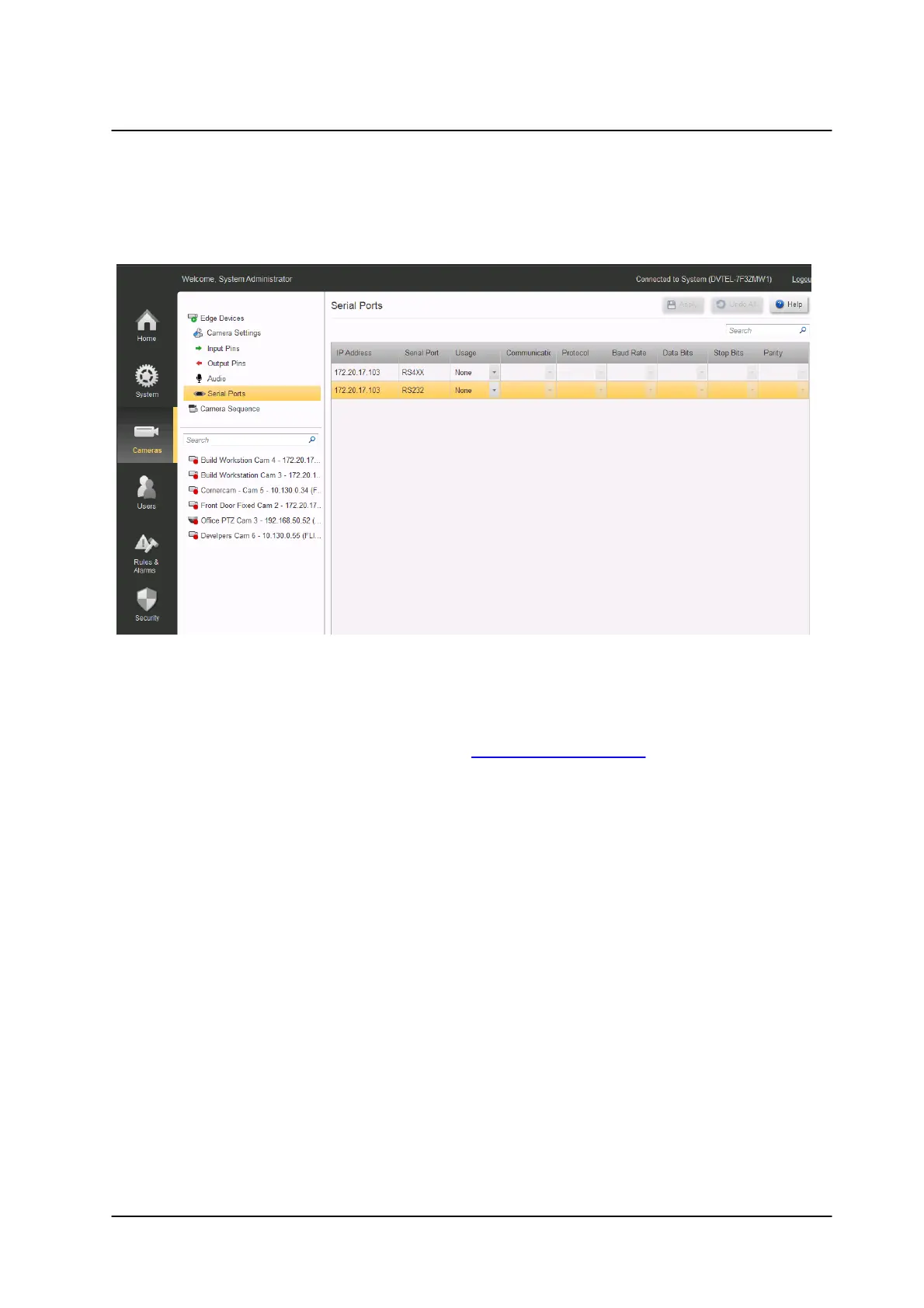

6.1.4 Serial Ports
The Serial Ports screen shows a list of all Serial Ports on attached devices.
Cameras/Edge Devices/Camera Settings/Serial Ports
The IP Address and Serial Port type (RS232, RS4xx, .. ) are indicated.
The user can select the required values for the Serial Port Parameters listed below.
Serial Port parameters
Usage - (None, Keyboard, PTZ)
Communications - (RS-232, RS422 4 wire/2-wire, etc)
Protocol - (DVTEL, Pelco, American Dynamics)
Bitrate - (75, 110, . . . . . , 912600)
Data Bits - (7,8)
Stop Bits - (1, 2)
Parity - (None, Odd, Even)
After making any change, the user must click the Apply button.
The Undo button will clear all unsaved changes and re-display the stored settings.
