INSTALLATION INSTRUCTIONS
Product and minimum clearance dimensions

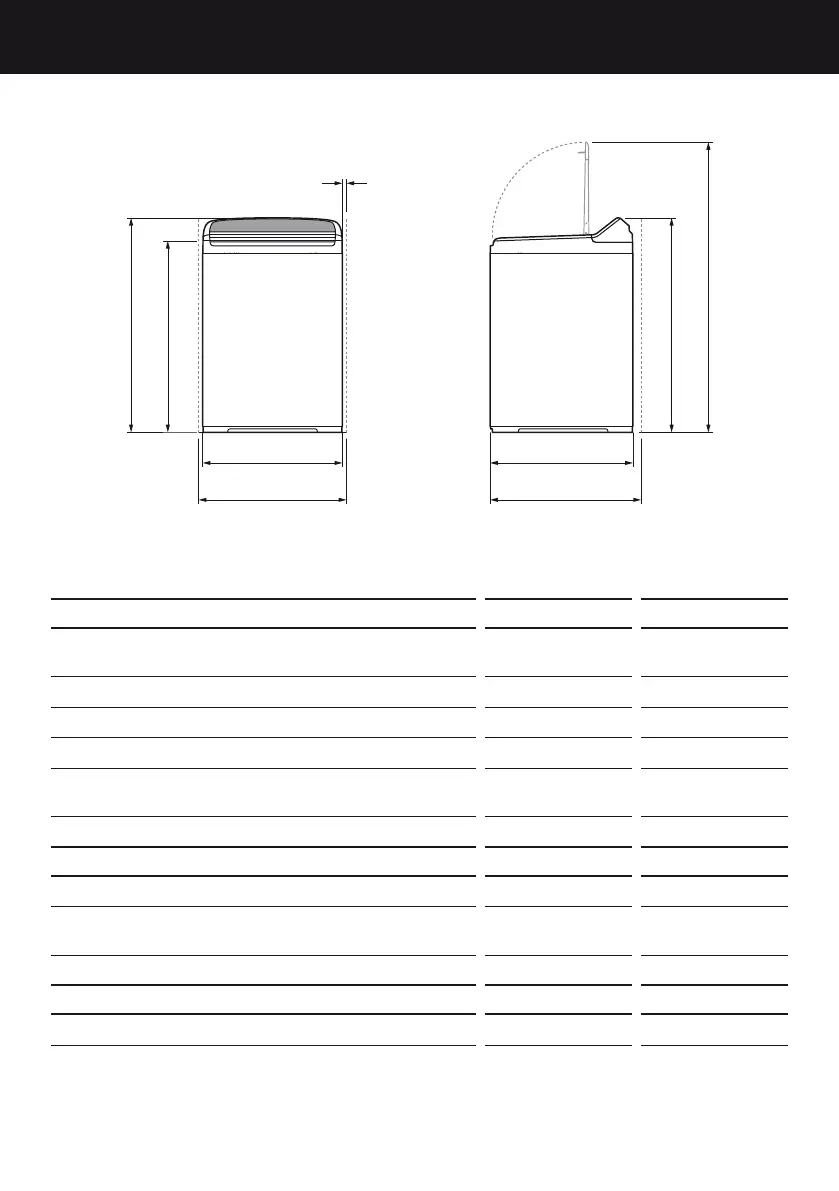

FRONT VIEW PROFILE VIEW
A
B
D
F
C
G
EA
H
WA7060E
WA7060G
WA7060M
WA8060E
WA8060G
PRODUCT DIMENSIONS mm mm
A
Overall height of product*
(to highest point on console)
1045 – 1075 1045 – 1075
B
Overall width of product 600 600
C
Depth of product 600 600
D
Height of product to top of lid* (closed) 950 –980 950 –980
E
Height of lid open*
(measured from bottom of product)
1350 – 1385 1350 – 1385
Standpipe height min. 850–1200 min. 850–1200
MINIMUM CLEARANCES
mm mm
F
Minimum cavity width 640 640
G
Minimum depth clearance
(including inlet hoses, drain hose and bowed front)
660 660
H
Minimum clearance to either side or wall
#
20 20
MAxIMUM CAPACITY kg kg
7.0 8.0
* Includes adjustable mounted feet and the range of movement.
#
Applies either side.
Note: maximum capacity may differ according to market.
